Making Connections
ANT

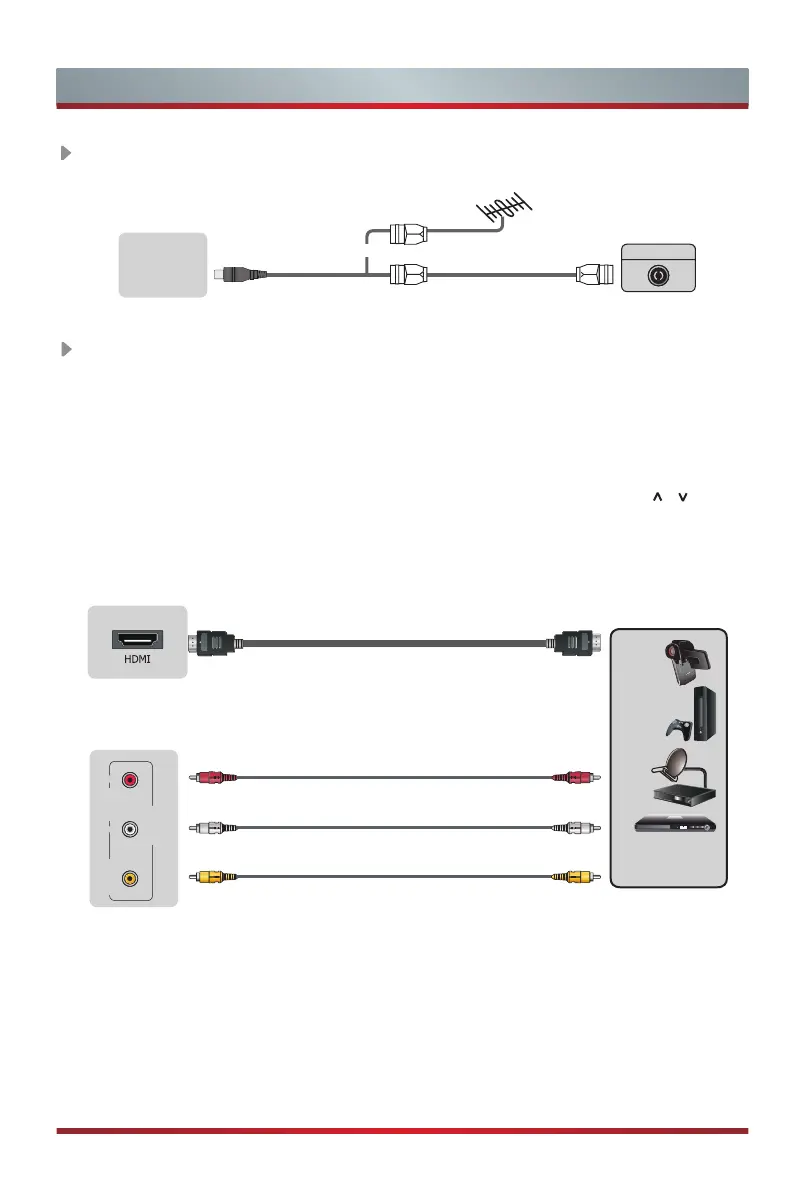

Connect an outdoor VHF/UHF antenna or cable.
TV JACK
Outdoor
Antenna
Antenna Cable (75Ω)
or
ANT OUT
Cable
VHF/UHF Antenna
ANT
(not included)
HDMI / AV
Connect a HDMI / AV cable from an external AV equipment. No sound connection
is needed for HDMI to HDMI connection. If the signal resolution does not match the
specification table, you need to change the setting of device according to the table.
Please consult your device user manual for instruction.
· To select the HDMI / AV
Press the [INPUT] button, when the list of input Source appears, press the [
/ / < / >
]
buttons to select the source [HDMI] / [AV], then press the [OK] button to connect.
BETTER (HDMI)
Video Effect:
Video Camera/
Set-top Box/
Satellite Receiver
TV JACK
(Cables are not included)
White(L)
Red(R)
Yellow(Video)
VIDEO L R
AV IN
GOOD (AV)
Video Effect:
TV JACK
HDMI cable (not included)
AUDIO
To Next Page
