- 13 -

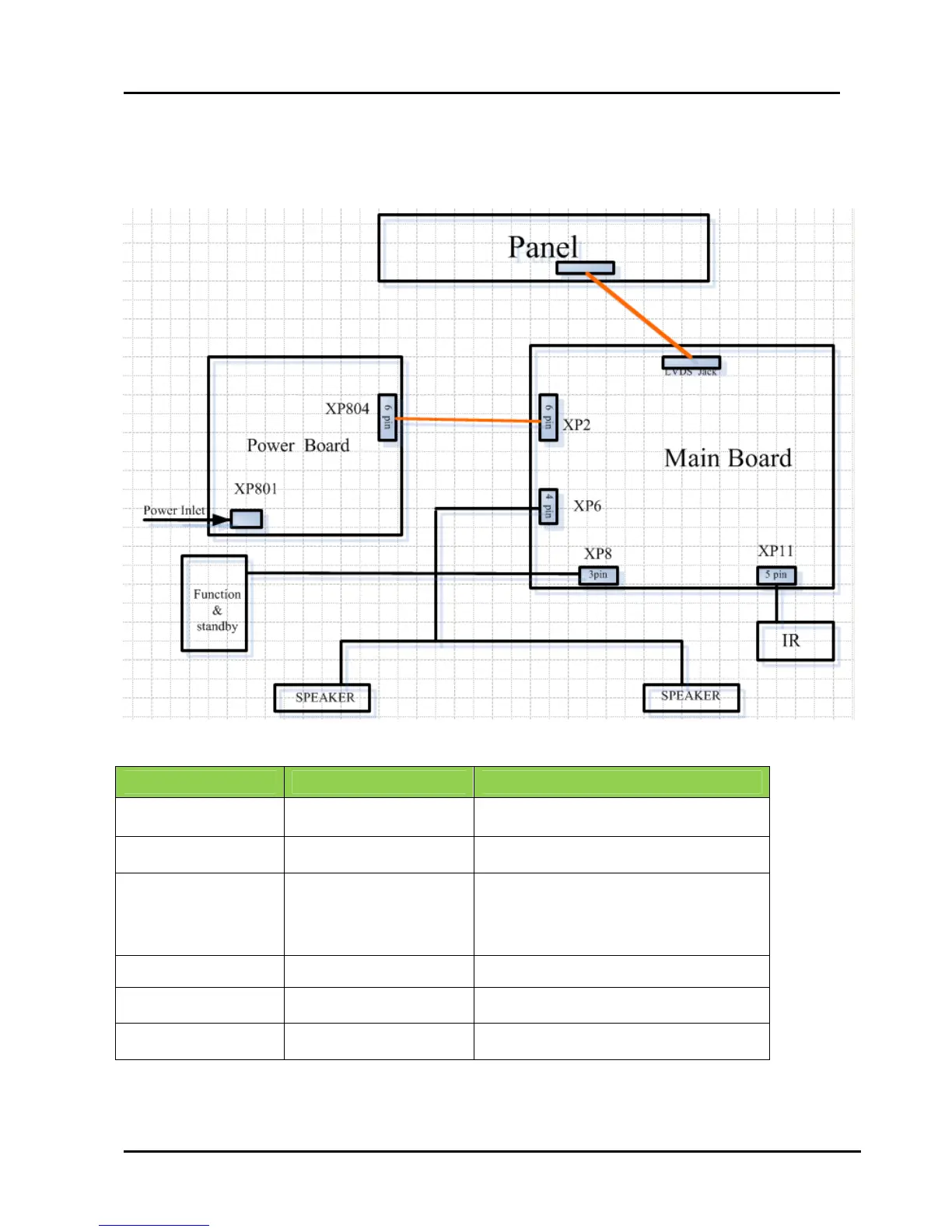

2.3 Wiring Diagram:
LHDN 32K15CEU’’
Model Panel Mode LVDS(Main-Panel)
LTDN24K15CEU M236H3-LA2\V236H1-LE2 HX2-2X20KLB400P-CMO\ROH
LHDN32K15/K16CEU HE315DH-E02(S3)\ROH HX2-2×15KLB400P-HS-1\ROH
LHDN32K15CEU(1) HE315DH-E06\S3\ROH Same to LHDN32K15
