English - 8 -

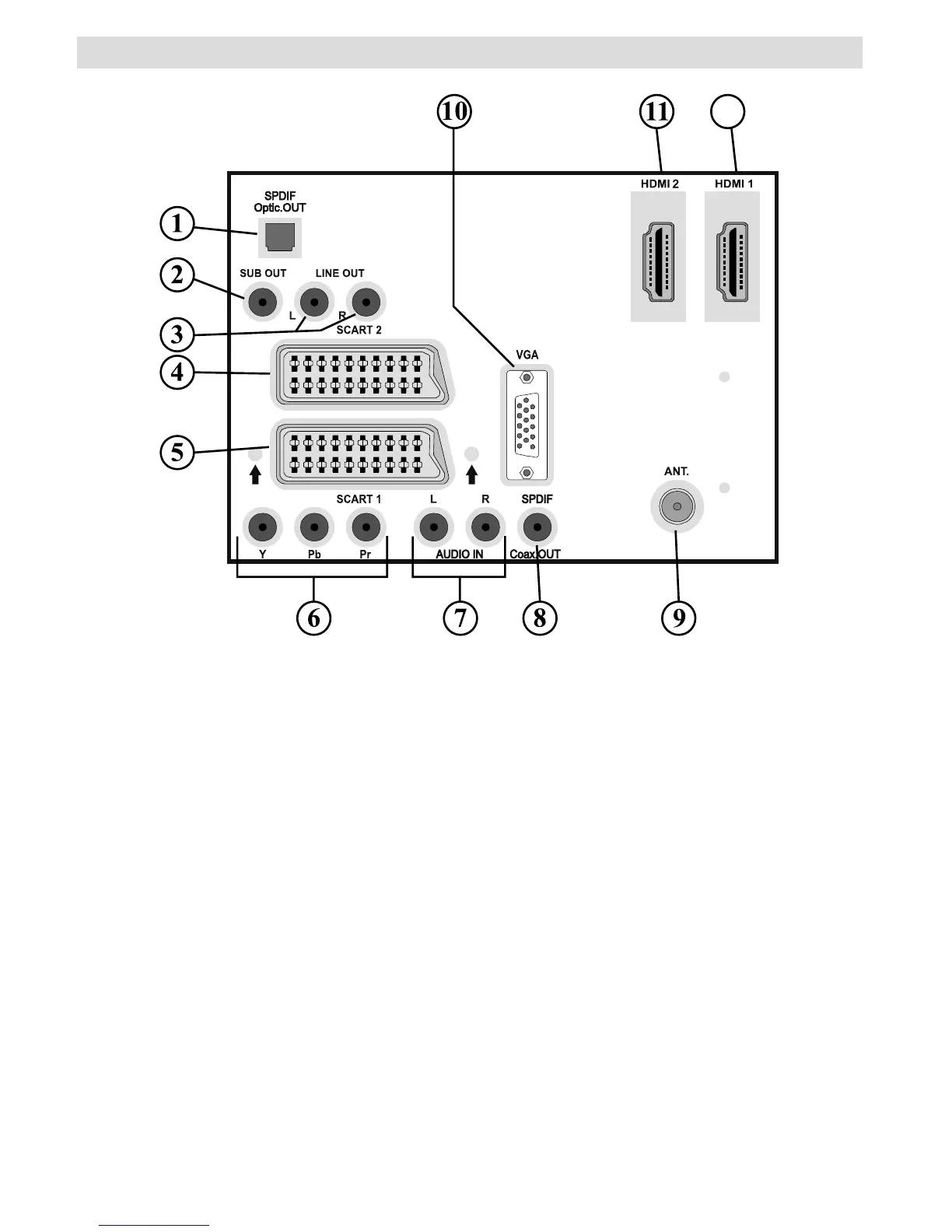

Viewing the Connections- Back Connectors
12
1. S/PDIF Out outputs digital audio signals of the currently watched source.
Use a digital optic cable to transfer audio signals to a device that has S/PDIF input.
2. Subwoofer Out is for connecting an external, active subwoofer to the set to give a much
deeper bass effect.
Use an appropriate RCA cable to connect the set to a subwoofer unit.
Audio Line Out 3. outputs audio signals to an external device such as an optional sound
system.
To connect an external amplifi er and speakers to your TV; connect the TV’s audio LINE
OUT sockets to the line input sockets on an external amplifi er with a stereo phono to phono
cable.
4. SCART 2 inputs or outputs for external devices.
5. SCART 1 inputs or outputs for external devices.
Connect the SCART cable between SCART sockets on TV and SCART socket on your
external device (such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART sockets, the TV will automatically
switch to AV mode. If both sockets are employed at the same time, SCART 1 will override
SCART 2 unless manually selected.
Note: You should connect the decoder to EXT-1, if you are planning to watch a scrambled
channel. The decoder might not function properly if you do not connect the decoder to the
Scart 1 (Ext-1) socket.
6. Component Video Inputs (YPbPr) are used for connecting component video.
You can connect the component video and audio sockets with a device that has component
