ABOUT THE SYSTEM SYSTEM FEATURES
2
Storage controller
Onboard (Intel® C624):
(8) SATA 6Gbps port with (2) mini-SAS HD connector
(6) sSATA 6Gbps port with (1) mini-SAS HD connector (reserved) and
(2) 7-pin SATA port (reserved for SATA DOM)
Networking
Dedicated GbE management NIC port from PHY RTL8211 to BMC
Intel® C621 as 2x or 4x GbE integrated network solution with PHY (optional)
Intel® C624 as 2x or 4x10GbE integrated network solution with PHY (optional)
Expansion slots
See SKU information on page 3 for more information.
Storage
2.5” SKU:
Tiered SKU:
(8) SATA/SAS SSD/HDD (SFF-8680)
(4) SATA/SAS SSD/HDD or NVMe SSD (SFF-8639)
All Flash SKU:
(12) SATA SSD or
(12) NVMe SSD
Onboard storage (2) SATADOM (optional)
Video Integrated Aspeed AST2500 with 8MB video memory
Network options
(1) GbE dual or quad port OCP mezzanine PHY card (Optional)*
(1) 10GbE dual or quad port OCP mezzanine PHY card (Optional)*
Front I/O
Power/ID/Reset Buttons
Power/ID/Status LEDs
(2) USB 3.0 ports
Rear I/O
(2) USB 3.0 ports
(1) VGA port
(1) RS232 serial port
(1) GbE RJ45 management port
(1) ID LED
(1) MicroSD slot
TPM Yes (optional, SPI mode)
ACPI ACPI compliance, S0, S5 support
Power supply
500W and 800W Titanium/Platinum redundant PSU, 100-240VAC 50/60Hz,
AC/HVDC support
1100W redundant DC PSU: Acbel I/P: DC -39 - -72V, 37A max.

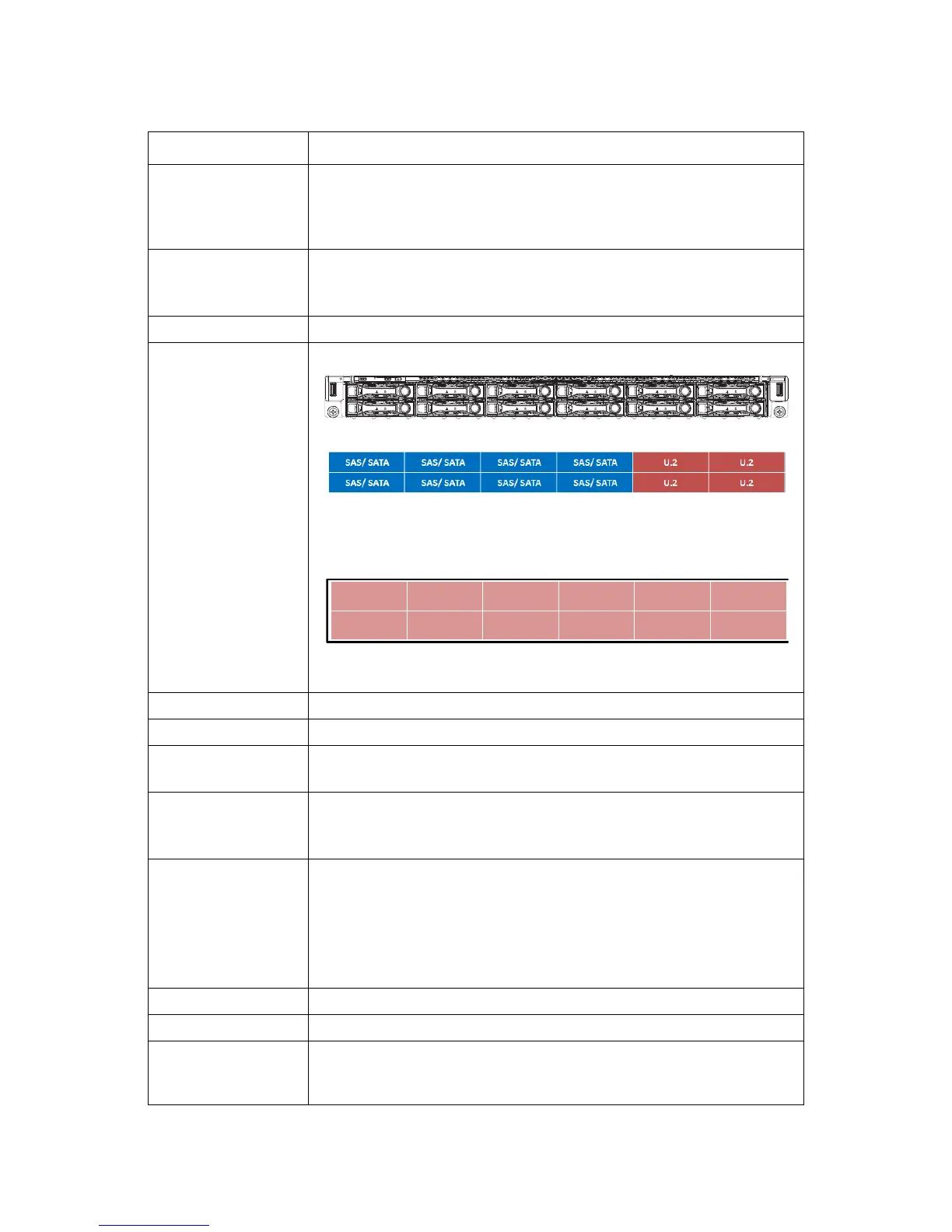

Table 1.1: System Specifications (Continued)
SPECIFICATIONS DESCRIPTION
