9
English
SPECIFICATIONS
Item Model C 10FCH / C 10FCE
Motor Type Series commutator motor
Power source Single-phase AC 60Hz
Voltage (Volts) 120
Full-load current (Amp) 15
Laser Marker Maximum output <1mW CLASS II Laser Product
(Only Model Wave length 400~700 nm
C10FCH) Laser medium Laser Diode
Applicable Outside Dia. 10" (255mm)
saw blade Hole Dia. 5/8" (15.9mm)
No load speed 5000/min
Max. Head Turntable Max. sawing dimension
sawing Miter 0 0 Max. Height 2-5/16" (59mm)
dimension
Max. Width 5-21/32" (144mm)
or
Max. Height 3-1/2" (89mm)
Max. Width 3-31/32" (101mm)
0 Left 45° Max. Height 2-5/16" (59mm)
Max. Width 4" (102mm)
Bevel Left 45° 0 Max. Height 1-5/8" (41mm)
Max. Width 5-21/32" (144mm)
Compound Left 45° Left 45° Max. Height 1-5/8" (41mm)
Max. Width 4" (102mm)
Miter sawing range Left 0° – 52° Right 0° – 52°
Bevel sawing range Left 0° – 45°
Compound sawing range Left (Bevel) 0° – 45°, Left and Right (Miter) 0° – 45°
Net weight 27.6 lbs. (12.5 kg) / 26.5 lbs. (12 kg)
Cord 2 Conductor type cable 6ft. (1.8m)
ACCESSORIES
WARNING: Accessories for this power tool are mentioned in this Instruction Manual.
The use of any other attachment or accessory can be dangerous and could cause injury
or mechanical damage.

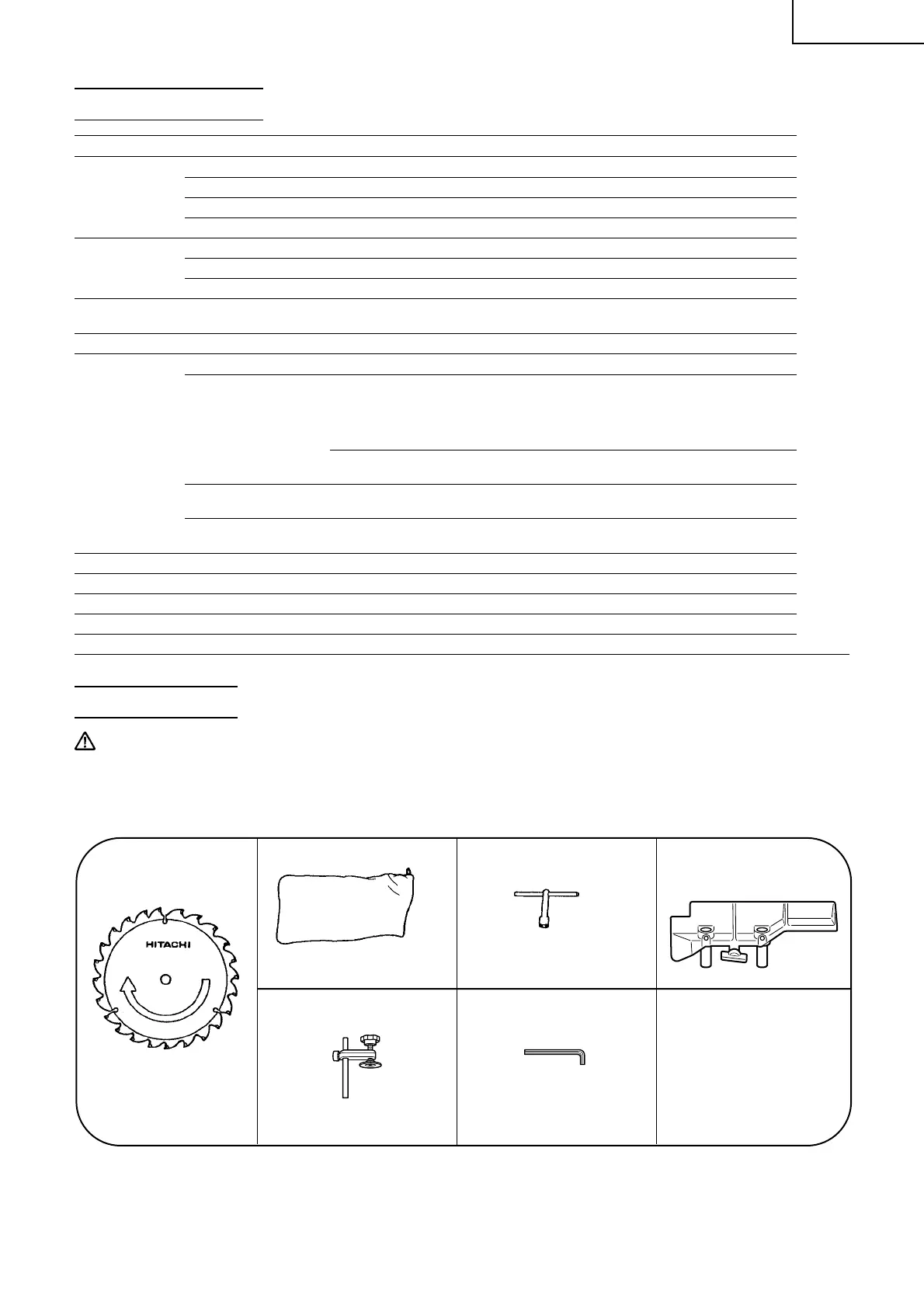

STANDARD ACCESSORIES
Fig. 3
2 Dust bag (1 piece)1 10" (255mm) TCT Saw
blade (1 piece) (For wood)
For how to use, refer to
page 20.
4 10mm BOX wrench
(1 piece)
3 Vise Assembly w/knob bolt
(1 piece)
For how to use, refer to
page 16.
(No. of teeth 24
Code No. 318963)
5 4mm Hex. bar wrench
(Only C10FCH)
For how to use, refer to
page 14.
6 Sub Fence
(1 piece)
To Next Page
