OPTIONAL ACCESSORIES...sold separately
1 Extension Holder and Stopper (Code No. 323523)
2 Crown molding Vise Ass’y (Code No. 323545) (Include Crown molding Stopper (L))
3 Crown molding Stopper (L) (Code No. 323546)
4 Crown molding Stopper (R) (Code No. 323547)
NOTE: Accessories are subject to change without any obligation on the part of the HITACHI.
APPLICATIONS
Wood and aluminum sash.
PREPARATION BEFORE OPERATION
Make the following preparations before operating the power tool:
1. Installation
11/32” (9mm)
4 Holes
22-3/4” (578mm)
12-19/32”(320mm)
5/16" (8mm) bolt
Base
Work bench
5/16” (8mm) nut
1” (25mm) Thick bench
Fig. 4

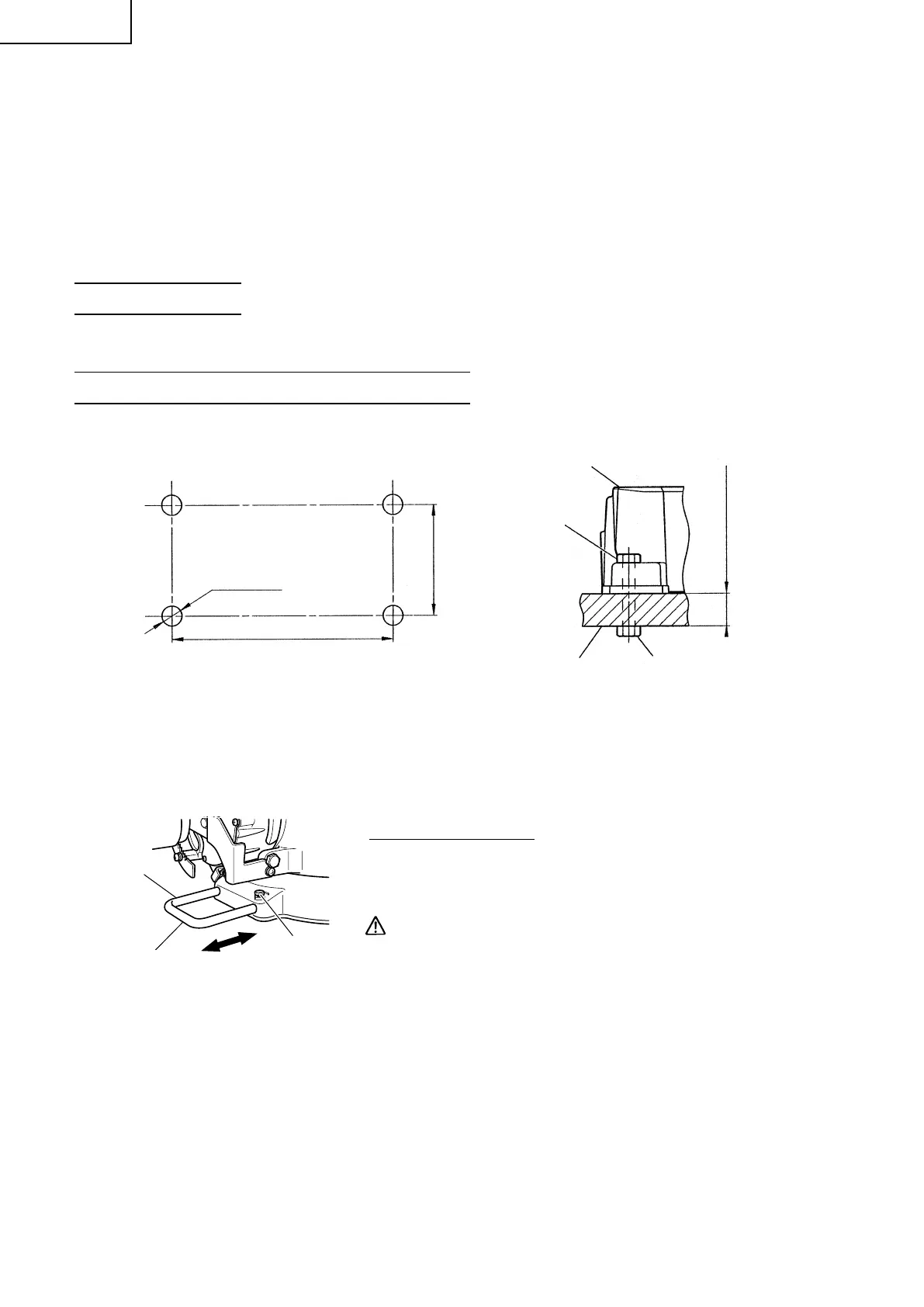

Attach the power tool to a level, horizontal work bench in accordance with Fig. 4.
Select 5/16” (8mm) diameter bolts suitable in length for the thickness of the work bench.
Bolt length should be at least 1-3/8" (35mm) plus the thickness of the work bench.
For example, use 2-11/32" (60mm) or larger bolts for a 1" (25mm) thick work bench.
The holder attached to the rear of the base helps stabilize the power tool.
Move
Adjust the holder
until its bottom
surface contacts the
work bench surface.
Holder (B)
6mm bolt
Holder (B) adjustment:
Loosen the 6mm bolt with the supplied 10mm box wrench.
Adjust the holder (B) until its bottom surface contacts the work
bench surface.
After adjustment, firmly tighten the 6mm bolt.
CAUTION: Attach the power tool to a work bench with bolts
(6mm), and if the turntable has been swiveled 45°
degrees or more, be careful not to let the hand
that is holding the side handle get caught between
the side handle and heads of bolts (6mm). Injuries
could result.
Fig. 5
01Eng_C12LDH_US 12/27/10, 13:1810
