18
English

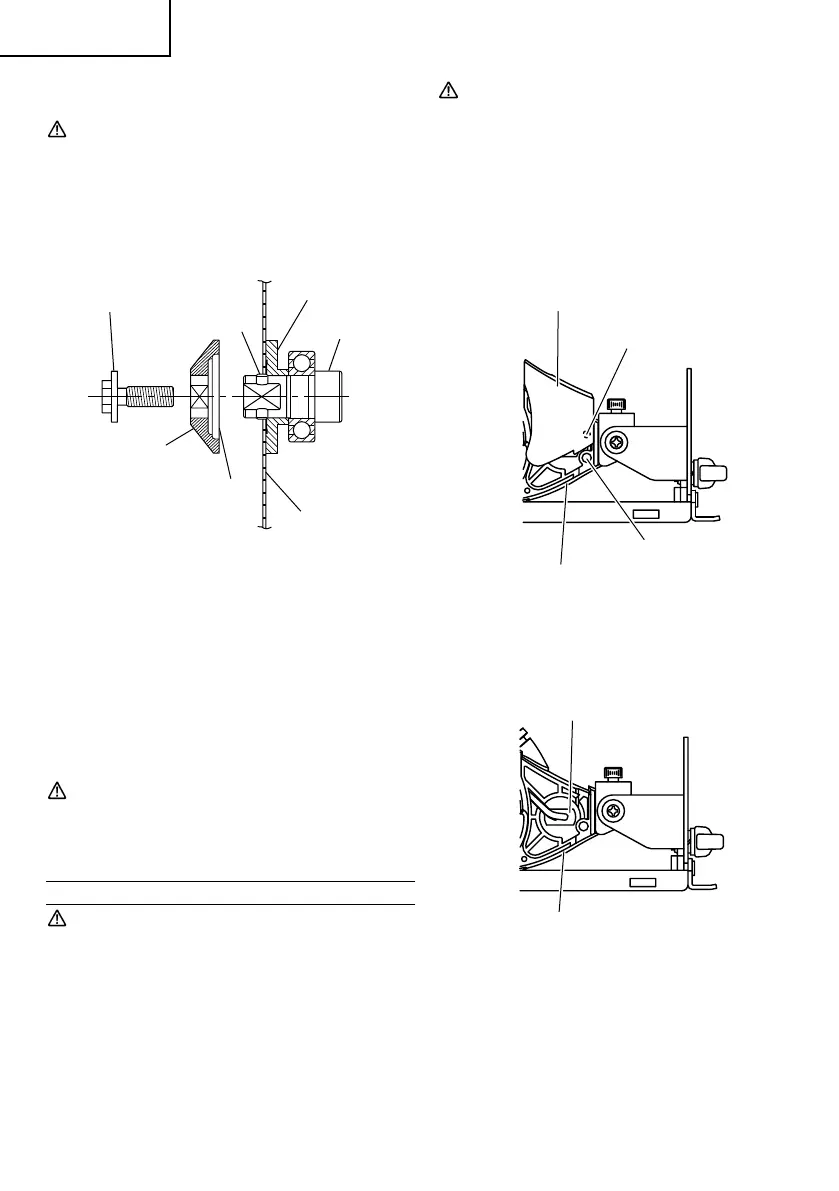

2. Mounting the Saw Blade (Fig. 17)
WARNING:
If the left-hand bolt is worked using other tools
than the provided box wrench, excessive
tightening and insufficient tightening may take
place, resulting in injury.
䡬
Take procedures here that are contrary to the
detaching procedures.
Fig. 17
NOTE:
䢇
Thoroughly remove any sawdust which has
accumulated on the spindle, bolt and washers.
䢇
To assure proper rotation direction of the saw
blade, the arrow direction on the saw blade must
coincide with the arrow direction on the saw cover.
䢇
Using the fingers, tighten the left-hand bolt
retaining the saw blade as much as possible. Then
depress the lock lever, lock the spindle, and
thoroughly tighten the left-hand bolt.
CAUTION:
After mounting the saw blade, reconfirm that the
lock lever is firmly secured in the prescribed
position.
REPLACING LIGHT BULB
WARNING:
䢇
Make absolutely sure that the battery is removed
from the main body before replacing the light bulb.
䢇
Immediately after the light is turned OFF, the bulb
retains high temperature. Make sure to cool down
the light bulb thoroughly before replacing it so as
to prevent burns.
CAUTION:
When replacing the light bulb, check the shape of
base as well as the rating (12 V, 5 W), and then
carry out perfect mounting. Otherwise, the light
bulb can come off and/or cause overheat.
1. Detaching light bulb
(1) Remove the convex part of the light cover from
the concave part of the housing, and then pull out
the light cover in the arrow-marked direction as
shown in Fig. 18.
Fig. 18 <Side View>
(2) Push the back of the socket, and remove the socket
and the light bulb together from the housing (Fig.
19).
Fig. 19
Left-hand bolt
Ring
Washer (A1)
Spindle
Washer (B2)
Concave
Saw blade
Housing
Light cover
Convex
Concave
Housing
Back of the socket
01Eng_C18DSL_US 8/8/08, 09:4218
