NOTE:

(1)ALL RESISTERS ARE IN OHM,ALL COILS ARE IN H;

ALL THE CRYSTALS ARE IN HZ;

(2)THE AREA ENCLOSED BY ------ IS LIVE AREA AND

DIRECTLY CONNECTED TO MAIN VOLTAGE.

(3)THE DEVICE WITH ARE SAFETY CRITICAL DEVICES;

(4)THE DEVICE WITH * ARE SUBJECT TO CHANGE OR OMIT

ACCORDING TO DIFFERNT TV SETS;

(5)THE AREA ENCLOSED BY - - - IS OPTIONL;

(6)THE CIRCUIT IS SUBJECT TO CHANGE WITHOUT NOTICE!

(7)All components with sign is FDA critical components.

PAL/SECAM/NTSC BG/DK/I/M

NICAM/TELETXT

ISSUED BY:

SYSTEM:

YUV/S-VIDEO/AV-IN/OUT

yangtr

REV DATA:

2005-11-05

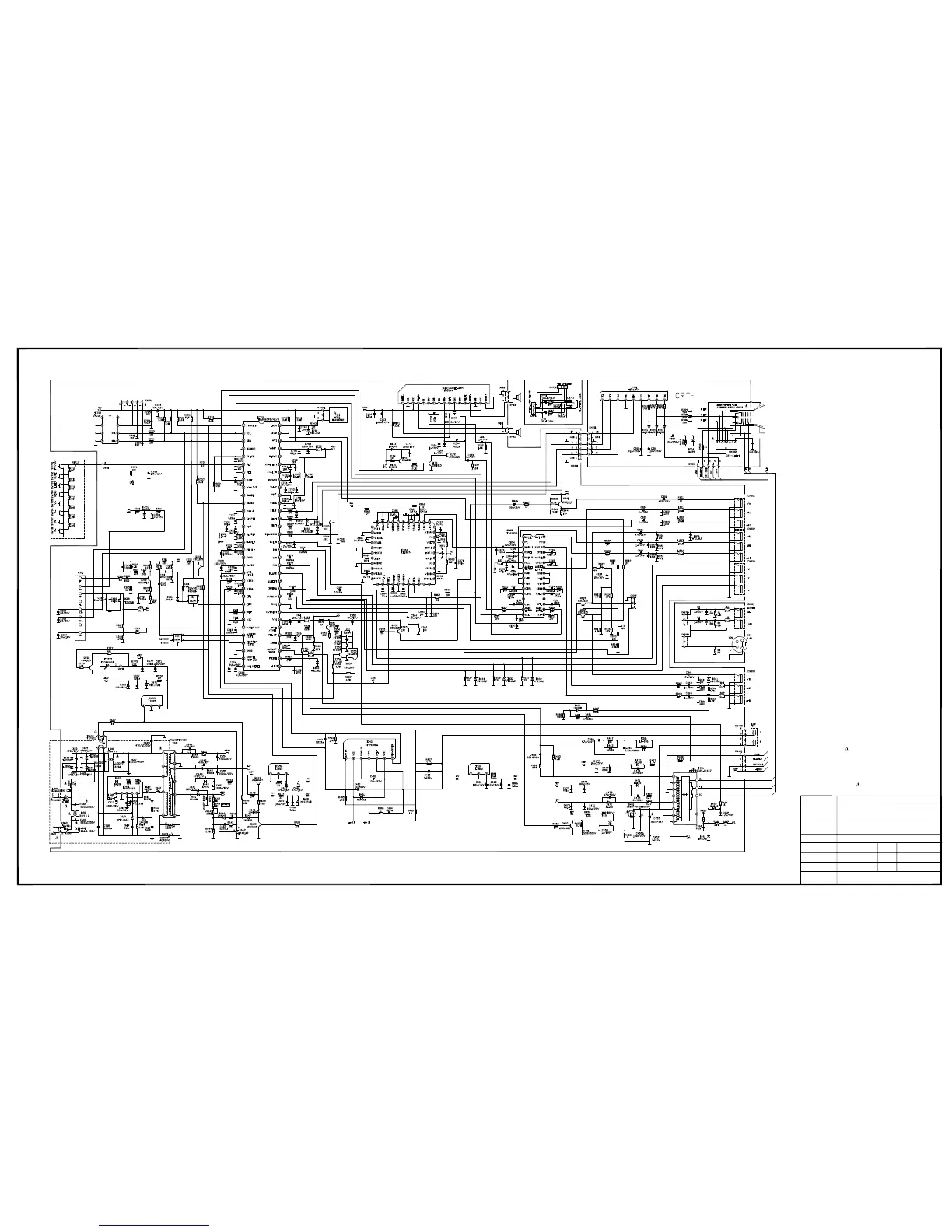

C21-F880SNT SCHEMATIC DIAGRAM

P/N:

TITLE:

0502-A3P311-00

3P31 SCHEMATIC DIAGRAM

APPROVED BY:

CHECKED BY:

hansx

SOFT::

Philips

DATA:

2005-11-05

yangtr
