ASSEMBLY AND OPERATION
APPLICATIONS
䡬 Use as a drill
Drilling of soft steel, wood, plastic and aluminum materials
䡬 Use as a screwdriver
Tightening and loosening of machine screws, wood screws and tapping screws
REMOVAL AND INSTALLATION METHOD OF BATTERY
䡬 How to install the battery
Align the battery with the groove in tool handle and slip it into place.
Always insert it all the way until it locks in place with a little click. If not, it may accidentally
fall out of the tool, causing injury to you or someone around you. (Fig. 5)
䡬 How to remove the battery
Withdraw battery from the tool handle while pressing the latch (2 pcs.) on the sides of
the battery. (Fig. 5)

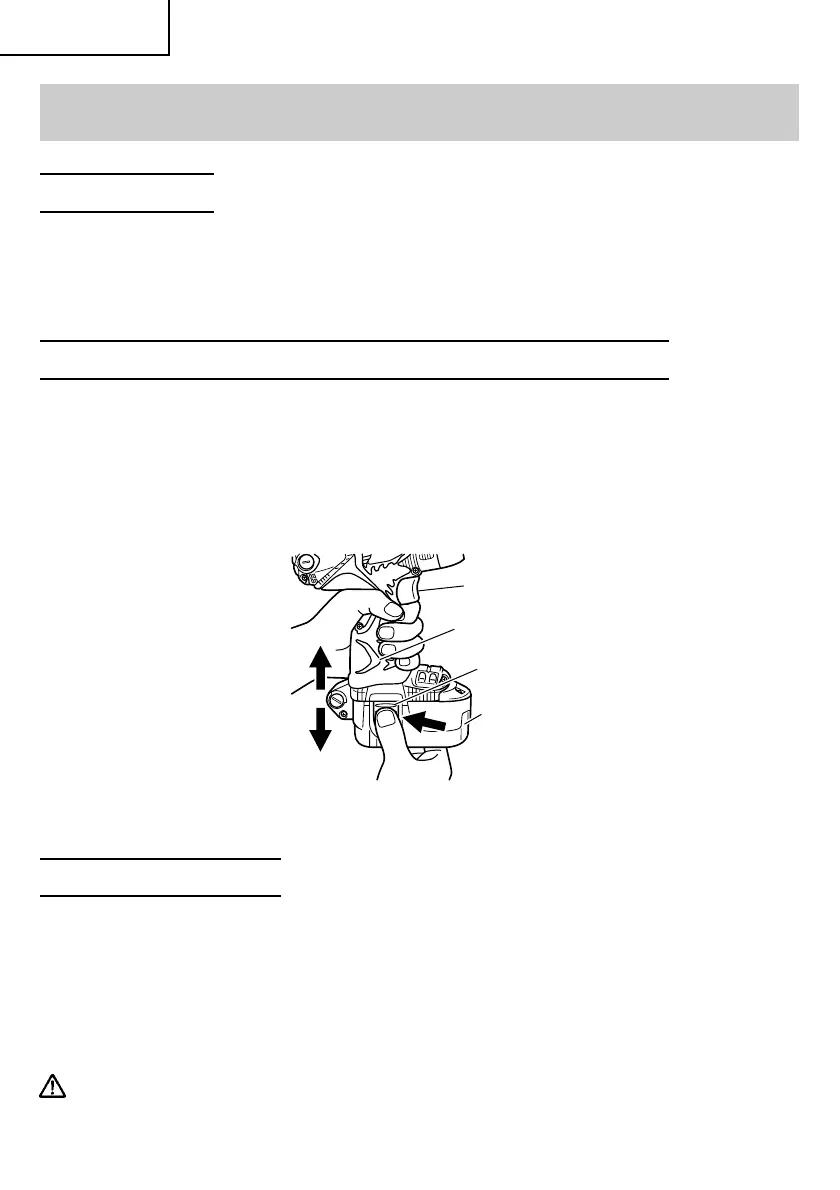

Fig. 5
CHARGING METHOD
The following is an explanation of charging methods when using the battery charger
UC14YFA, UC24YJ or UC18YG. When charging using the ET18DM Multi Charger, please
read the separate ET18DM Instruction manual.
NOTE: Before plugging into the receptacle, make sure the following points.
䡬 The power source voltage is stated on the nameplate.
䡬 The cord is not damaged.
WARNING: Do not charge at voltage higher than indicated on the nameplate.
If charged at voltage higher than indicated on the nameplate, the
charger will burn up.
Latch
Push
Handle
Battery
Insert
Pull out
Switch Trigger
