— 9 —
English

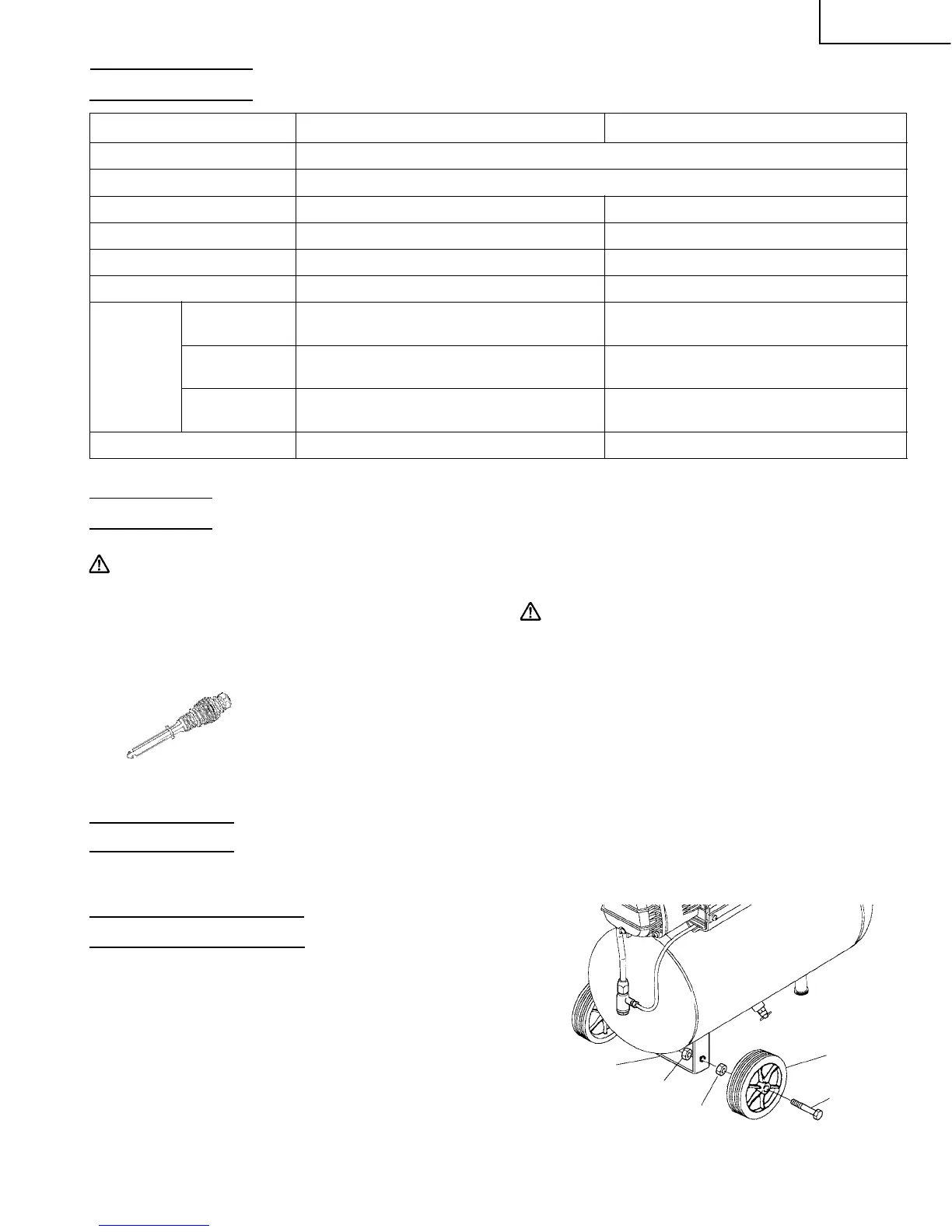

SPECIFICATIONS
Model EC10SB EC10SC
Motor Single-Phase, Induction Motor
Power Source Single-Phase, 115V AC 60Hz
Output Power 1.5 HP (1.1 KW) 1.5 HP (1.1 KW)
Current 13.5 A 13.5 A
Tank Capacity 2.1 gal. (8.0 ltr) 5.8 gal. (22.0 ltr)
Maximum Pressure 125 PSI (8.6 bar) 125 PSI (8.6 bar)
at 40 PSI
4.9 CFM (138 ltr/min) 4.9 CFM (138 ltr/min)
(2.8 bar)
at 90 PSI
3.6 CFM (103 ltr/min) 3.6 CFM (103 ltr/min)
(6.2 bar)
at 100 PSI
3.5 CFM (98 ltr/min) 3.5 CFM (98 ltr/min)
(6.9 bar)
Lubrication Oil Oil
ACCESSORY
WARNING:
䢇 Accessory other than these shown below can lead
to malfunction and resulting injuries.
STANDARD ACCESSORY
Dipstick - - - - - - - - - - - - - - 1
APPLICATIONS
䡬 Air source of the pneumatic nailer and stapler.
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms
to the power source requirements specified on the
product nameplate.
2. Power switch
Ensure that the knob of the pressure switch is in the
“OFF” position. If the plug is connected to a
receptacle while the knob is in the “AUTO” position,
the compressor will start operating immediately and
can cause serious injury.
3. Extension cord
When the work area is far away from the power
source, use an extension cord of sufficient thickness
and rated capacity (refer page 6). The extension cord
should be kept as short as practicable.
WARNING:Damaged cord must be replaced or
repaired.
4. Confirm the power receptacle
If the power receptacle only loosely accepts the plug,
the receptacle must be repaired. Contact the nearest
electric store for repair service.
If such a faulty receptacle is used, may cause
overheating, resulting in a serious hazard.
5. Wheel assembly
(EC10SC)
The wheels are disassembled. Remove 2 screws, 2
wheels and 4 nuts from the bag and install them on
the foot section of the tank as shown in Fig. 2
Fig. 2
Foot of tank
Wheel
Screw
Nut
Nut
Free Air
Delivery
