Hitachi L2002 Series User Manual

6

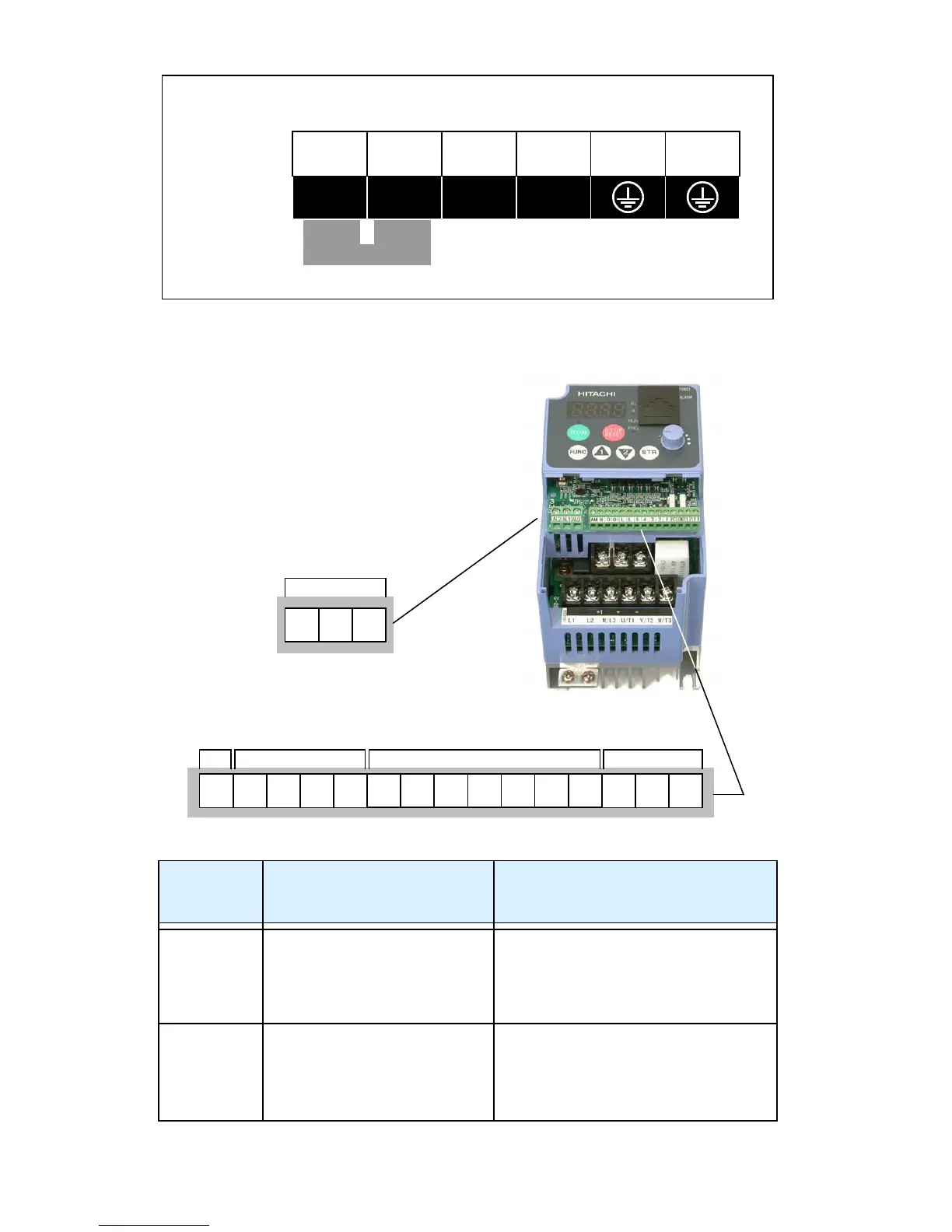

Control Circuit Terminals
Terminal
Name
Description Ratings and Notes
PCS +24V for logic inputs 24VDC supply, 30 mA max.
(Notes: Do not use for network
power
Do not short to terminal L)
1, 2, 3, 4,
5
Intelligent (program-
mable) discrete logic
inputs
27VDC max. (use P24 or an
external supply referenced to
terminal L), 4.7kΩ input
impedance
Inverter models L200–HFEF2, –075HFEF2
Jumper
+ – +1
Chassis
Ground
U/T1 V/T2 W/T3L1 L2 L3
H O OI PCS L
Analog
inputs
Analog
output
Alarm relay
Logic
outputs
Logic inputs
L 5 4 3 2 1 CM2 12 11
AL2 AL1 AL0
AM
