ACCESSORIES AND ATTACHMENTS
RECOMMENDED ACCESSORIES
Visit your Hardware Department or see the Power and Hand Tools Catalog to purchase recommended
accessories for this power tool.
UNPACKING AND CHECKING CONTENTS
Separate all parts from packing materials. Check each
part with the illustration on the next page and the “Table
of Loose Parts” to make certain all items are accounted
for, before discarding any packing material.
TABLE OF LOOSE PARTS
CARTON CONTENTS
ITEM
DESCRIPTION
QUANTITY
A
Planer
1
B
Bolts
2
C
Power Cord Bracket
2
D
Hex Key
1
E
Setting Gauges
2
F
Cap
1
G
Wrench
1
H
Bolt
1
I
Crank Handle
1
J
Stand Legs
4
K
Short Lower Crossbar
2
L
Long Lower Crossbar
2
M
Short Upper Crossbar
2
N
Long Upper Crossbar
2
If any part is missing or damaged, do not attempt to
assemble the planer, plug in the power cord, or turn
the switch ON until the missing or damaged part is
obtained and is installed correctly.
NOTE: To make assembly easier, keep contents of box
together. Apply a coat of automobile wax to the table.
Wipe all parts thoroughly with a clean dry cloth. This will
reduce friction when pushing the workpiece.
WARNING
O
Foot Pad
4
Flat Washer
4
Hex. Hd. Bolt
4
Cap Hd. Sq.neck Bolt
40
Serrated Toothed Hexagon Flange Nut
4
Serrated Toothed Hexagon Flange Nut
40
Supplied

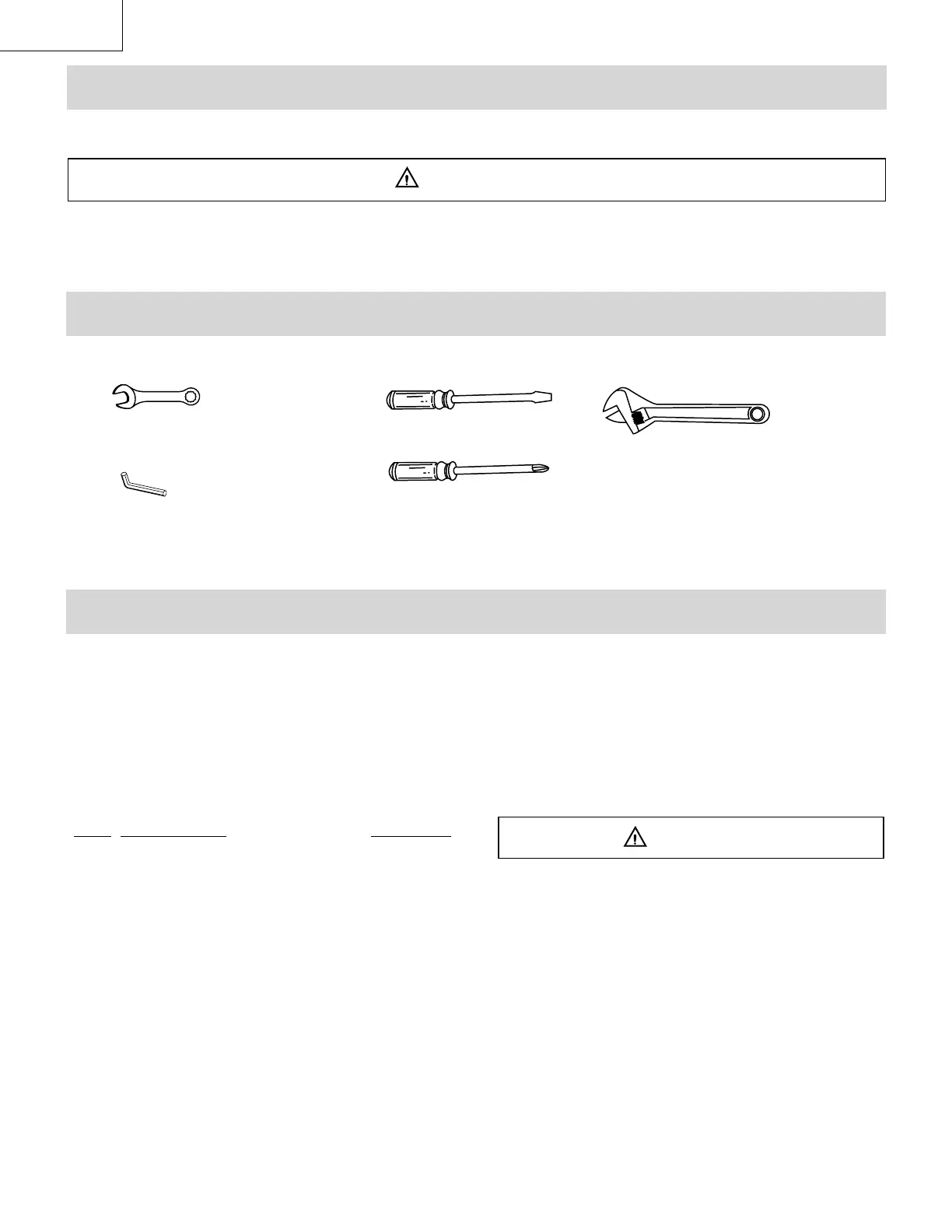

TOOLS NEEDED FOR ASSEMBLY
Not Supplied
Medium Screwdriver
#2 Phillips Screwdriver
Adjustable Wrench
Hex Wrench
Wrench
WARNING
To Next Page
