2
/
2

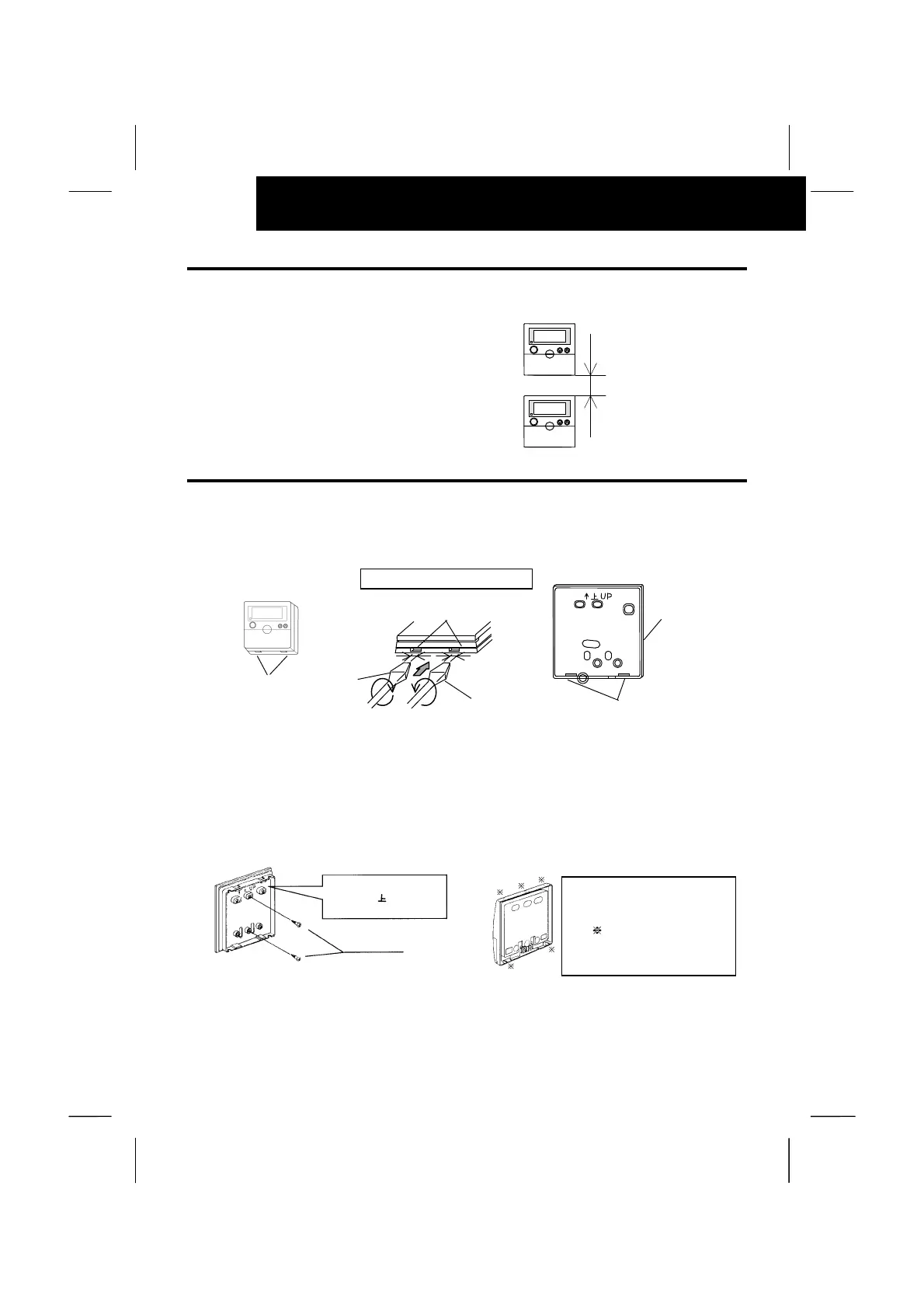

INSTALLATION WORK
2.3. INSTALLATION SPACE
In case of installing the Timers in vertical line,
keep a distance more than 50mm between the
Timers vertically.
If the distance is insufficient, the front cover of
the Timer can not open wide enough.
2.4. INSTALLATION PROCEDURES]
1. Insert the edge of the screwdriver into the groove parts at the bottom of the holding bracket, push
and turn the screwdriver and remove the Timer from the holding bracket.
2. Attach the Timer to the holding bracket and connect the cable as follows.
Q In Case of Exposing Remote Control Cable
o Fix the holding bracket onto the wall
with screws (accessory).
p Select and cut the knockout hole
according to the direction for drawing out
the cable.
More than 50mm
Groove Part
Holding
Bracket
Figure Seen from Bottom Side
Groove Part
Screw
Driver
Screw
Driver
A
pprox. 6mm
Groove Part
Screws
(Accessory)
Fix the holding bracket
with the “ UP” mark
u
p
ward.
Determine the direction for drawing
out the cable according to the cable
arrangement and cut the knockout
hole (one of five positions marked
with in the left figure).
In case of using accessory cable,
draw out the cable from one of the
knockout holes at the lower side.
