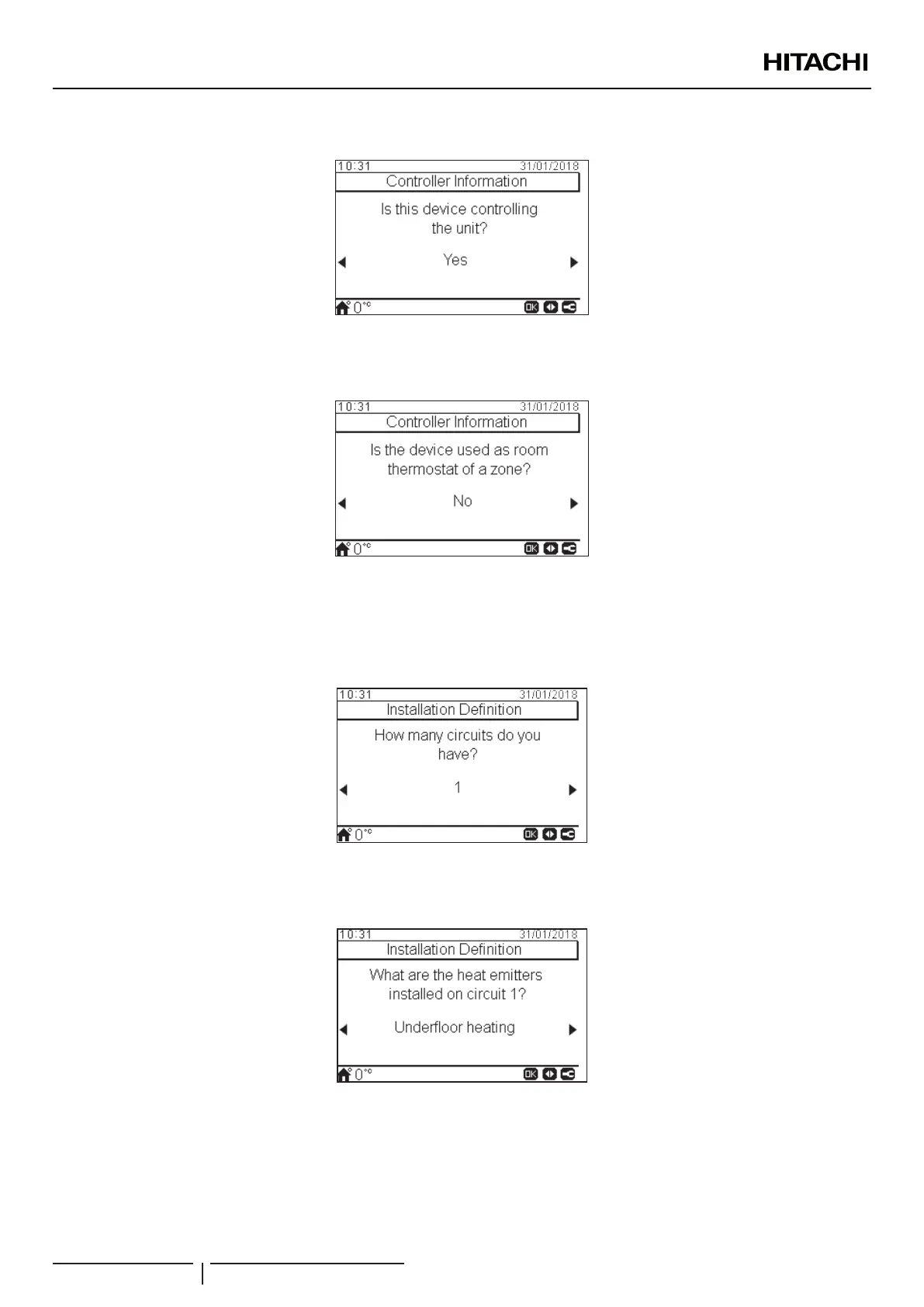

• Select No when the device acts as Room Thermostat only. It does not control the unit.
• Press OK button.
• Select No when the device is not used as a room thermostat.
• Select Yes, in zone 1/ Yes, in zone 2 / Yes, in both zones, depending on the number of circuits controlled.
• When select Yes, in both zones, jump to screen 8.
• Press OK button.
• Select the number of circuits (1 or 2) .
• Press OK button.
• Select the heat emitters on the circuit 1: Underoor heating, Fan coils or Radiators.
• Repeat this step in case of circuit 2.
• Press OK button.
UNIT CONTROLLER
PMML0510 rev.1 - 10/2019
76
