English
8
APPLICATION
For charging the HITACHI BATTERY
䡬 EB712S, EB7S, EB714S, FEB7S, EB7B, BCC912,
EB912S, EB9S, EB914S, EB914, FEB9S, EB9B,
EB924, EB926H, EB930H, EB933X, BCC1212,
EB1212S, EB12S, EB1214S, EB1214L, FEB12S,
EB12B, EB1220BL, EB1224, BCH1215, BCH1220,
EB1226HL, EB1230H, EB1230HL, EB1230X, EB1233X,
BCC1412, EB1412S, EB1414S, EB1414, EB14B,
EB1424, BCH1415, BCH1420, EB1426H, EB1430H,
EB1430X, EB1433X, BCL1415, BCL1430, EBL1430,
EB1812S, BCC1812, EB1814SL, EB18B, EB1820,
EB1820L, EB1824L, BCH1815, BCH1820, EB1826HL,
EB1830H, EB1830HL, EB1830X, EB1833X, BCL1815,
EBM1830
CHARGING
Before using the power tool, charge the battery as
follows.
1. Connect the charger’s power cord to the receptacle.
When connecting the plug of the charger to a
receptacle, the pilot lamp will blink in red
(At 1-second intervals).
2. Insert the battery into the charger.
Firmly insert the battery into the charger till it
contacts the bottom of the charger and checking
the polarities as shown in Fig. 1.
CAUTION
If the batteries are inserted in the reverse direction,
not only recharging will become impossible, but it
may also cause problems in the charger such as
a deformed recharging terminal.
3. Charging
When inserting a battery in the charger, the pilot
lamp will light up continuously in red.
When the battery becomes fully recharged, the pilot
lamp will blink in red (At 1-second intervals).
(See Table 1)
(1) Pilot lamp indication
The indications of the pilot lamp will be as shown
in Table 1, according to the condition of the charger
or the rechargeable battery.

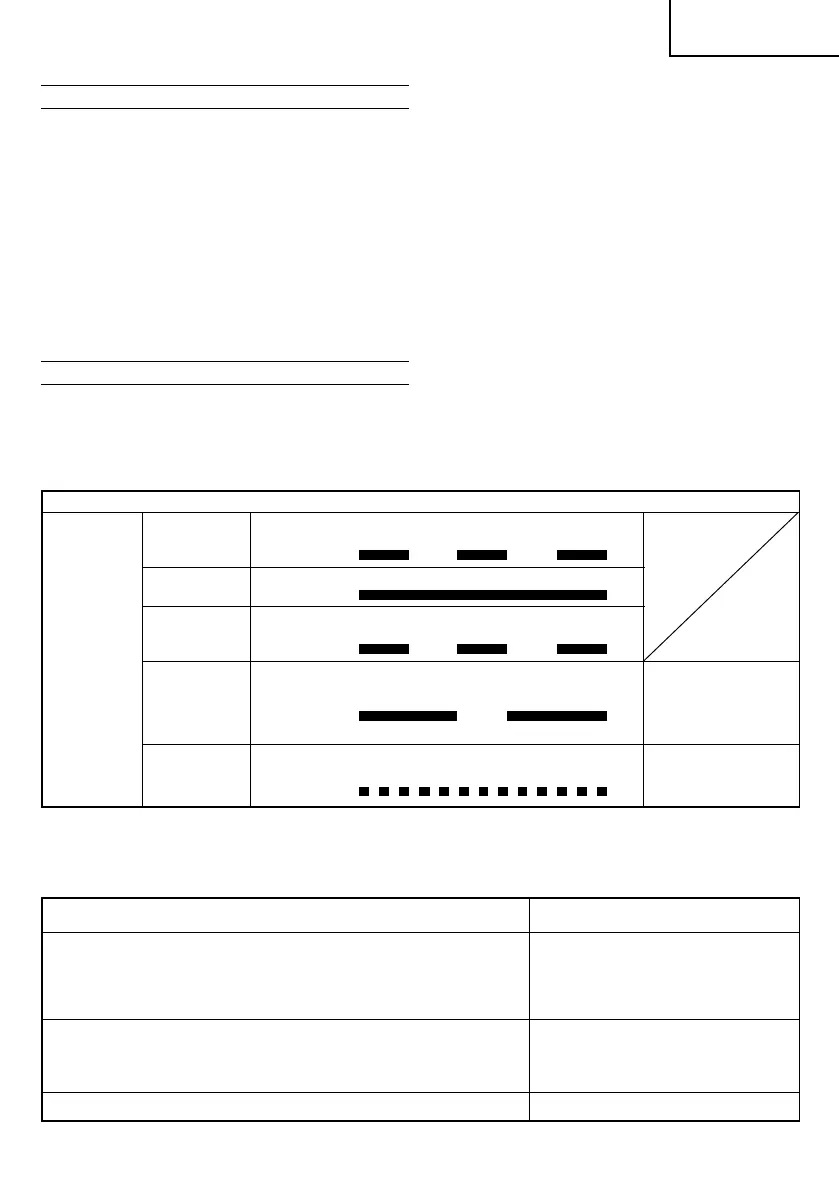

Table 1
Indications of the lamp
Before
Lights for 0.5 seconds. Does not light
Blinks for 0.5 seconds. (off for 0.5 seconds)
charging
Lights
Lights continuously
Lights for 0.5 seconds. Does not light
Blinks for 0.5 seconds. (off for 0.5 seconds)
Blinks
Lights for 1 second. Does not light
for 0.5 seconds. (off for 0.5 seconds)
Lights for 0.1 seconds. Does not light
Flickers
for 0.1 seconds. (off for 0.1 seconds)
Overheat
standby
While
charging
Charging
complete
Battery overheated.
Unable to charge.
(Charging will
commence when
battery cools)
Pilot lamp
(red)
Charging
impossible
Malfunction in the
battery or the
charger
Table 2
(2) Regarding the temperature of the rechargeable battery.
The temperatures for rechargeable batteries are as shown in the table below, and batteries that have become
hot should be cooled for a while before being recharged.
Rechargeable batteries
Temperatures at which the
battery can be recharged
EB712S, EB7S, EB714S, FEB7S, EB7B, BCC912, EB912S, EB9S,
EB914S, EB914, FEB9S, EB9B, EB924, BCC1212, EB1212S, EB12S,
EB1214S, EB1214L, FEB12S, EB12B, EB1220BL, EB1224, BCC1412, –5°C — 55°C
EB1412S, EB1414S, EB1414, EB14B, EB1424, BCC1812, EB1812S,
EB1814SL, EB18B, EB1820, EB1820L, EB1824L
EB926H, EB930H, EB933X, BCH1215, BCH1220, EB1226HL, EB1230H,
EB1230HL, EB1230X, EB1233X, BCH1415, BCH1420, EB1426H,
EB1430H, EB1430X, EB1433X, BCH1815, BCH1820, EB1826HL,
–5°C — 50°C
EB1830H, EB1830HL, EB1830X, EB1833X
BCL1415, BCL1430, EBL1430, BCL1815, EBM1830 0°C — 50°
01Eng_UC18YKL_EE 7/30/14, 1:17 PM8
