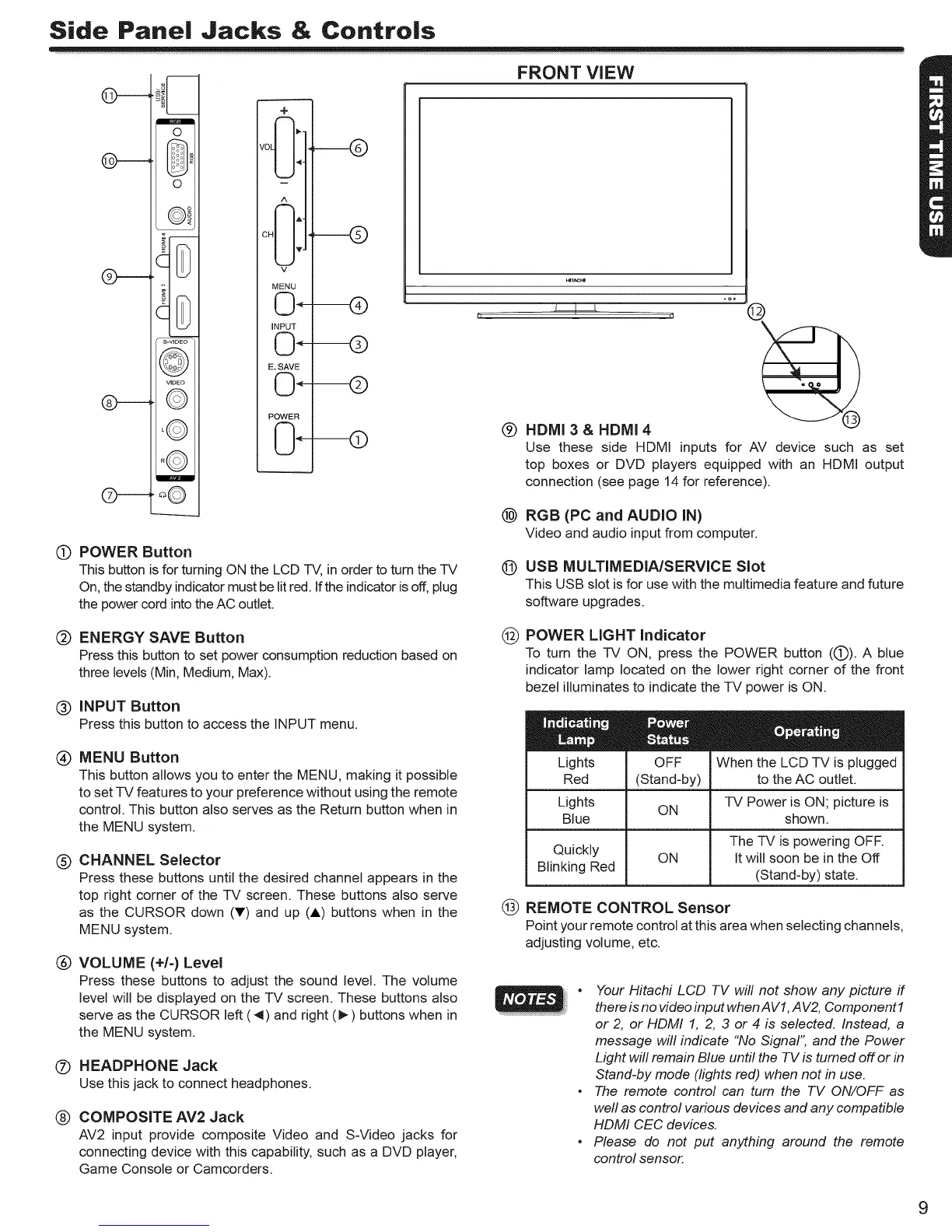

Side Pane| Jacks & Controls
nr
m
o
o
S_VIDEO
VIDEO
©
L©
o©
+
VOLI
14-
A
IA-
CHI
IV-
V
MENU
©-
©"
ESAVE
©-
POWER
I<-
___®
m®
FRONT VIEW
(_) POWER Button
This button is for turning ON the LCD TV, in order to turn the IV
On, the standby indicator must be lit red. If the indicator is off, plug
the power cord into the AC outlet.
,oo
HDMI 3 & HDMI 4
Use these side HDMI inputs for AV device such as set
top boxes or DVD players equipped with an HDMI output
connection (see page 14 for reference).
®
(_) RGB (PC and AUDIO IN)
Video and audio input from computer.
@ USB MULTIMEDINSERVICE Slot
This USB slot is for use with the multimedia feature and future
software upgrades.
@ ENERGY SAVE Button
Press this button to set power consumption reduction based on
three levels (Min, Medium, Max).
(_) INPUT Button
Press this button to access the INPUT menu.
(_ MENU Button
This button allows you to enter the MENU, making it possible
to set TV features to your preference without using the remote
control. This button also serves as the Return button when in
the MENU system.
(_) CHANNEL Selector
Press these buttons until the desired channel appears in the
top right corner of the TV screen. These buttons also serve
as the CURSOR down (V) and up (A) buttons when in the
MENU system.
(_ VOLUME (+/-) Level
Press these buttons to adjust the sound level. The volume
level will be displayed on the TV screen. These buttons also
serve as the CURSOR left (4) and right (_) buttons when in
the MENU system.
(Z) HEADPHONE Jack
Use this jack to connect headphones.
(_ COMPOSITE AV2 Jack
AV2 input provide composite Video and S-Video jacks for
connecting device with this capability, such as a DVD player,
Game Console or Camcorders.
@
POWER LIGHT Indicator
To turn the TV ON, press the POWER button ((_)). A blue
indicator lamp located on the lower right corner of the front
bezel illuminates to indicate the TV power is ON.
B
Lights
Red
m
OFF
(Stand-by)
When the LCD TV is plugged
to the AC outlet.
Lights ON TV Power is ON; picture is
Blue shown.
The -IV is powering OFF.
Quickly ON It will soon be in the Off
Blinking Red
(Stand-by) state.
@ REMOTE CONTROL Sensor
Point your remote control at this area when selecting channels,
adjusting volume, etc.
• Your Hitachi LCD TV will not show any picture ff
there is no video input when A V1,A V2, Component 1
or 2, or HDMI 1, 2, 3 or 4 is selected. Instead, a
message will indicate "No Signal" and the Power
Light will remain Blue until the TV is turned off or in
Stand-by mode (lights red) when not in use.
• The remote control can turn the TV ON/OFF as
weft as control various devices and any compatible
HDMI CEC devices.
• Please do not put anything around the remote
control sensor.
