Hitachi Unified Storage VM User Manual

Hardware overview
2–11
Hitachi Unified Storage VM Product Overview Guide
System management unit
The system management unit (SMU) in the file module (HNAS) system is
equivalent to the service processor in the block module system. It provides
administration and monitoring tools, supports data migration and
replication, and acts as a quorum device in a cluster configuration. Although
integral to the system, the SMU does not move data between the network
client and the servers.
Item Description Item Description Item Description
110GbE cluster
interconnect ports
2 10GbE public (data)
network ports
3GE ports
4 10/100 Ethernet ports 5 1/2/4Gbps FC ports 6 NVRAM, power, and
server status LEDs, and
Power and Reset buttons
7 Hot-swappable power
supplies
8 Keyboard (purple) and
mouse (green) ports
9USB ports
10 Serial port (RS-232) 11 Monitor port 12 Ethernet management
port 0 (Eth0)
13 Ethernet management
port 1 (Eth1)
Note: The server includes an embedded SMU, which can manage a single
file module server. However, embedded SMUs are not active when an
external SMU is attached. All cluster configurations require an external
SMU.

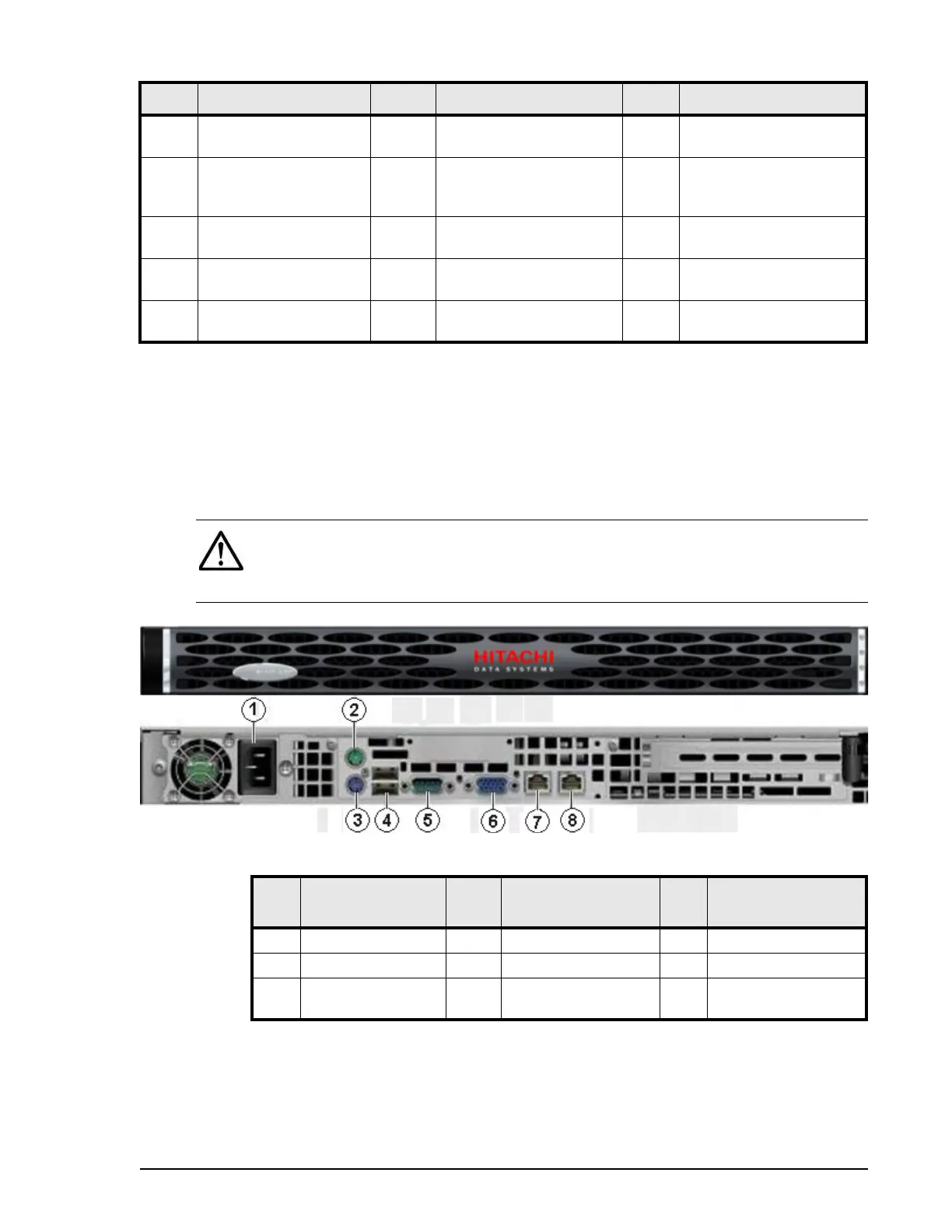

Figure 2-8 System management server
Ite
m
Description Item Description
Ite
m
Description
1 Power supply 2 Mouse port 3 Keyboard port
4 USB ports (2) 5 Serial connection 6 Video connection
7 Eth0 port (public
network)
8 Eth1 port (private
network)
