Hiwin SEG-04 User Manual

6.3 Accessory installation methods

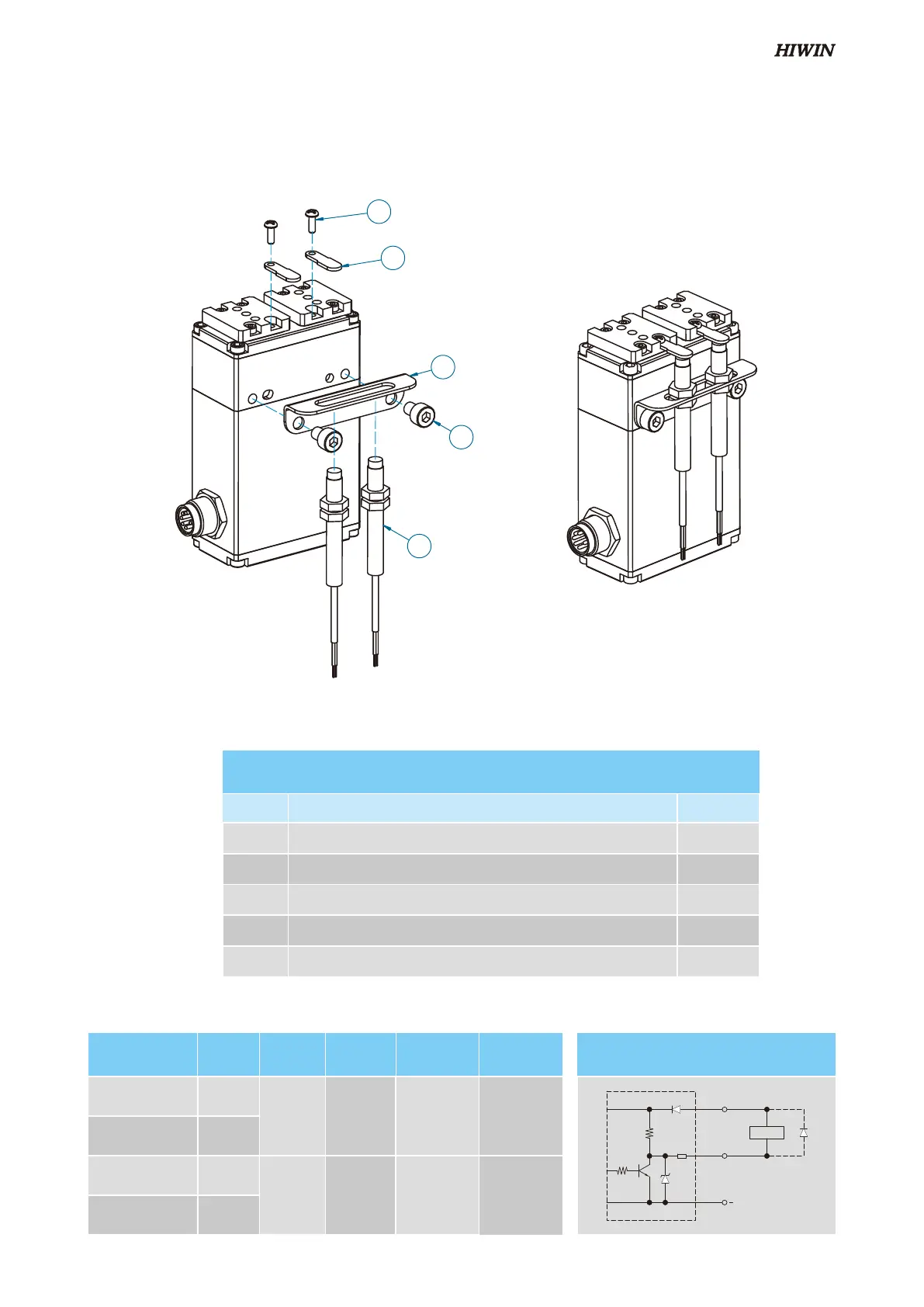

• SEG-04 sensor installation
3
1
5
4
2
SEG-04
Sensor - assembly exploded diagram
SEG-04
Sensor - assembled product diagram
SEG-04 sensor accessory kit
Item Name Amount
1 S4 sensor rack 1
2 Bolt (M4X0.7PX6L SUS) 2
3 S4 sensor plate 2
4 Bolt (M2X0.4PX6L SUS) 2
5 Proximity switch [Note 1] 2
Specifications
Output
state
Output
method
Sensing
distance
Response
frequency
Operating
voltage
PM05-02N NO
NPN 1.5 mm 2.5 KHz 10~30 VDC
PM05-02NB NC
XL-F05P1.2E1 NO
PNP 1.2 mm 2 KHz 10~30 VDC
XL-F05P1.2E2 NC
[Note 1] Refer to table below for proximity switch specifications.
NPN
Load
+10~30VDC1.Brown
3.Black
4.Blue
Output
4.7K
NPN
Load
+10~30VDC
1.Brown
3.Black
4.Blue
Output
4.7K
PNP
C11UE01-1907
23
