Honda CRF250R 2018 User Manual

38 Servicing Your Honda
Subframe

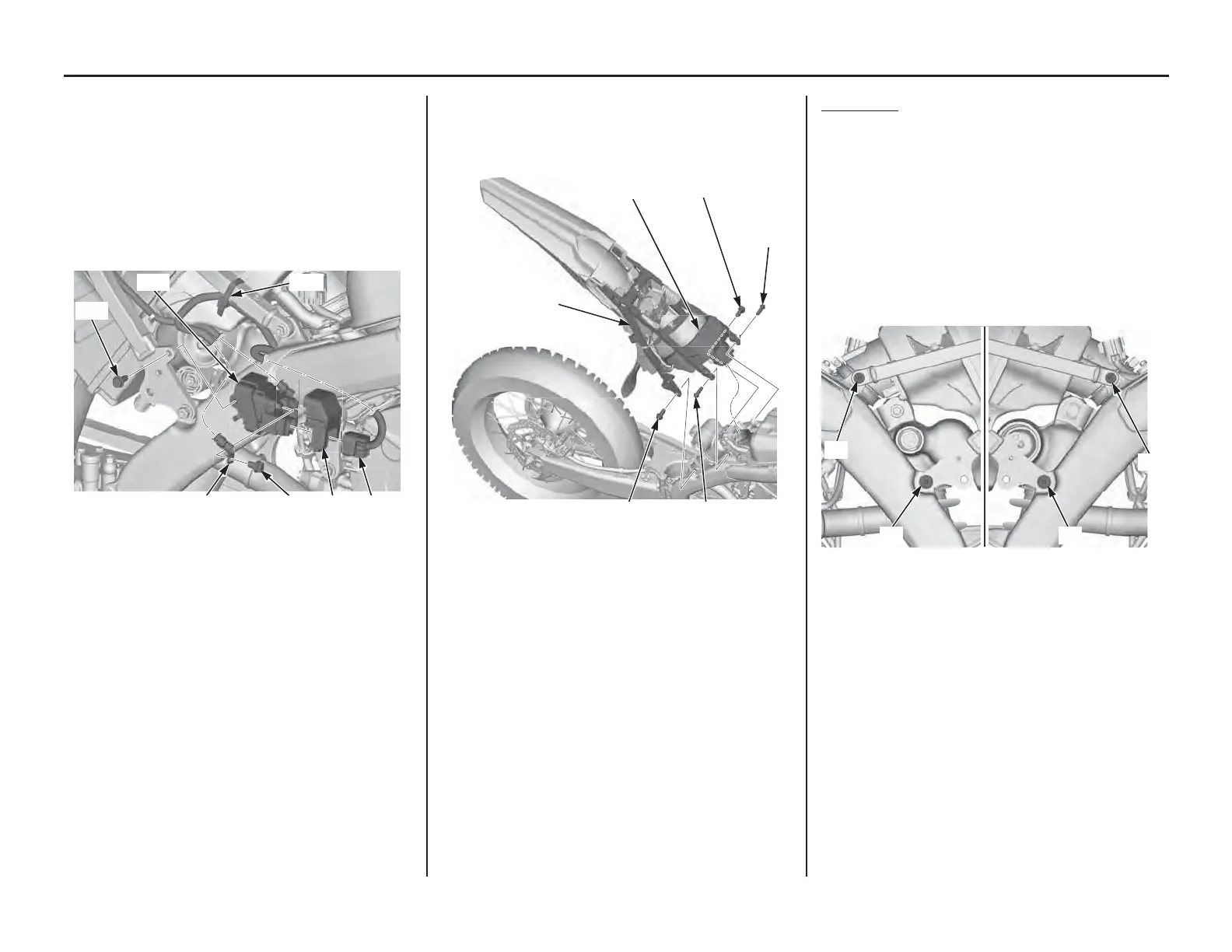

11. Remove the starter relay switch stay bolt (16)
and plastic wire band (17).
Pull out the starter relay switch (18).
Remove the starter relay switch cover (19) and
then disconnect the starter relay switch
connector (20).
Remove the starter motor terminal bolt (21)
and disconnect the starter motor terminal (22)
from the starter relay switch.
12. Remove the subframe lower bolts (23) and
upper bolts (24).
Remove the subframe (10) while
disconnecting the air cleaner box (25).
Installation
1. Loosely attach the upper and lower ends of the
subframe to the main frame and loosely install
all subframe bolts.
2. Tighten the subframe upper bolts (1) first and
then tighten the lower bolts (2) to the specified
torque:
subframe upper bolts:
24 lbf·ft (32 N·m, 3.3 kgf·m)
subframe lower bolts:
36 lbf·ft (49 N·m, 5.0 kgf·m)
(16) starter relay switch stay bolt
(17) plastic wire band
(18) starter relay switch
(19) starter relay switch cover
(20) starter relay switch connector
(21) starter motor terminal bolt
(22) starter motor terminal
(16)
(17)
(20)
(18)
(19)(21)(22)
(10) subframe
(23) subframe lower bolts
(24) subframe upper bolts
(25) air cleaner box
(10)
(23)
(24)
(25)
(24)
(23)
(1) subframe upper bolts
(2) subframe lower bolts
Left side: Right side:
(1)
(2) (2)
(1)

Honda CRF250R 2018 Specifications

General

Bore x Stroke	79.0mm x 50.9mm
Compression Ratio	13.9:1
Rear Suspension	Pro-Link Showa single shock with spring preload, rebound and compression damping adjustability; 12.4 inches travel
Front Brake	Single 260mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Wheelbase	58.3 inches
Seat Height	37.8 inches
Induction	Programmed Fuel Injection (PGM-FI)
Transmission	5-speed
Final Drive	Chain
Front Tire	80/100-21
Rear Tire	100/90-19
Trail	4.6 inches
