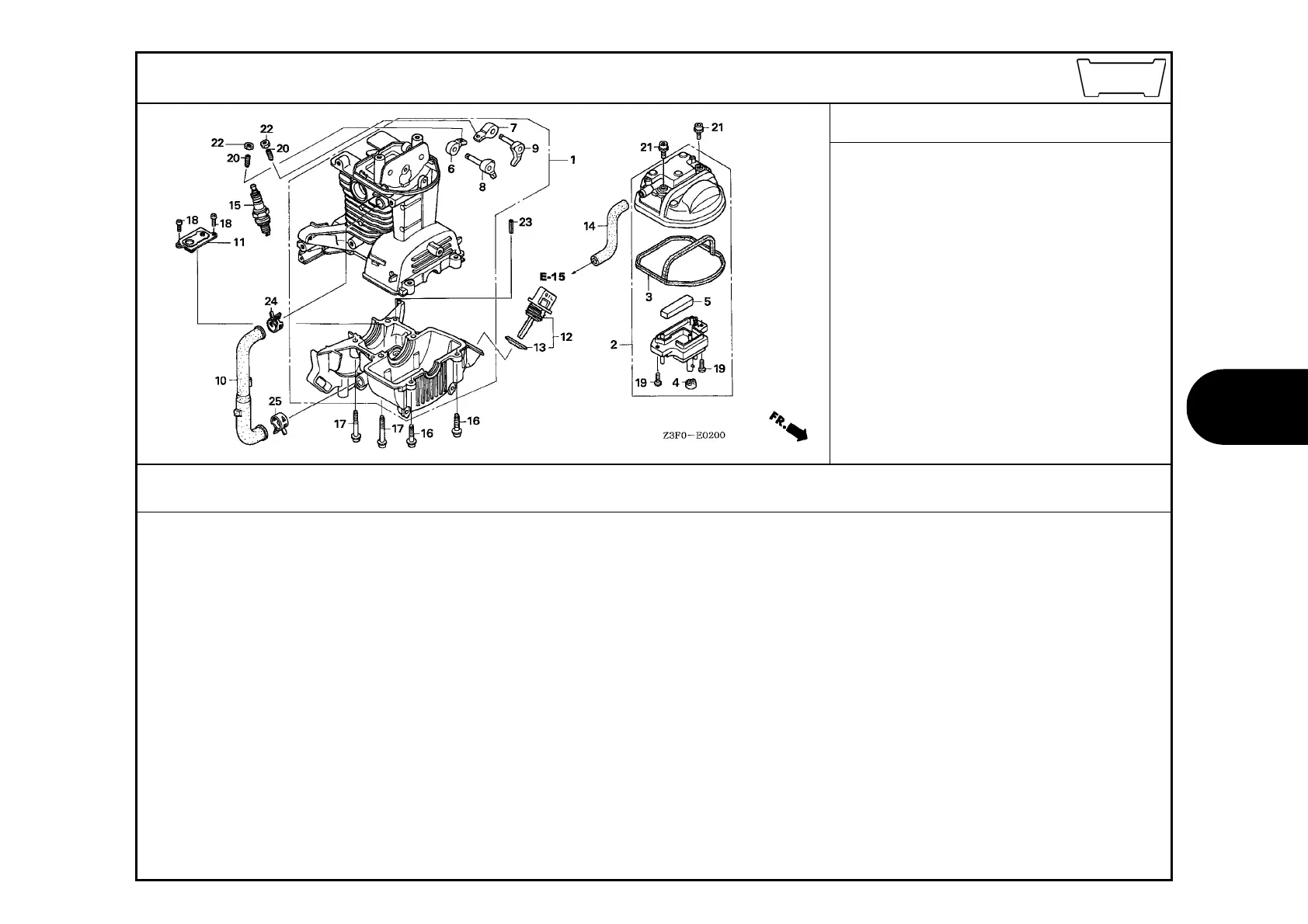

CRANKCASE SET
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
GX
35
T
Serial No.
1 10100-Z3F-405 CRANKCASE SET ••••••••••••••• 1
2 12310-Z0Z-000 COVER, CYLINDER HEAD •••••••• 1
3 12312-Z0Z-300 SEAL, HEAD COVER •••••••••••• 1
4 12314-Z0H-300 GROMMET, HEAD COVER ••••••••• 1
5 12367-Z0H-000 FILTER, BREATHER •••••••••••• 1
6 14431-Z0H-003 ARM, IN. VALVE ROCKER ••••••• 1
7 14441-Z0H-003 ARM, EX. VALVE ROCKER ••••••• 1
8 14730-Z0Z-000 LIFTER COMP., IN. VALVE ••••• 1
9 14740-Z0Z-000 LIFTER COMP., EX. VALVE ••••• 1
10 15422-Z0Z-000 TUBE, OIL ••••••••••••••••••• 1
11 15510-Z3E-000 PLATE ASSY., OIL OUTLET VALVE 1
12 15600-Z3F-000 CAP ASSY., OIL FILLER ••••••• 1
13 15625-Z0T-800 PACKING, OIL FILLER CAP ••••• 1
14 15721-Z0Z-000 TUBE, BREATHER •••••••••••••• 1
15 31914-Z0H-003 PLUG, SPARK(CMR4H)(NGK) ••••• (1) -------- -------- SAMS,SATM,SAU,SAUT,SAW,SD,SD2,SD2S,SD2T,SDH,SDL,SDS,SDT,SGT3,SGT9,SK,SKS
ST3E,ST4,SUT,T4
31915-Z0H-003 PLUG, SPARK(CMR5H)(NGK) ••••• 1 -------- -------- SAMS,SATM,SAU,SAUT,SAW,SD,SD2,SD2S,SD2T,SDH,SDL,SDS,SDT,SGT3,SGT9,SK,SKS
ST3E,ST4,SUT,T4
31916-Z0H-003 PLUG, SPARK(CMR6H)(NGK) ••••• (1) -------- -------- SAMS,SATM,SAU,SAUT,SAW,SD,SD2,SD2S,SD2T,SDH,SDL,SDS,SDT,SGT3,SGT9,SK,SKS
ST3E,ST4,SUT,T4
31914-Z0H-801 PLUG, SPARK(CM4H)(NGK) •••••• (1) -------- -------- SJ,SJS,SJT,SMG
31915-Z0H-801 PLUG, SPARK(CM5H)(NGK) •••••• 1 -------- -------- SJ,SJS,SJT,SMG
31916-Z0H-801 PLUG, SPARK(CM6H)(NGK) •••••• (1) -------- -------- SJ,SJS,SJT,SMG
16 90009-Z0H-003 BOLT, SOCKET, 5X20 •••••••••• 2
17 90010-Z0Z-003 BOLT, SOCKET, 5X32 •••••••••• 4
18 90013-Z3E-003 SCREW, PAN, 4X8 ••••••••••••• 2 -------- -------- SAMS,SAW,SD2,SD2S,SD2T,SDH,SDL,SGT3,SGT9,SK,SKS,ST3E,ST4,T4
Ref.
No.
L.O.N.
(Relative ref. Number)
Description
F.R.T.
1 1101B7 CRANKCASE •••••••••••••••••••• 1.5
2 (3,5)
1111D5 CYLINDER HEAD COVER AND/OR
PACKING ••••••••••••••••••••• 0.1
6 1111A2 ARM, ROCKER :INTAKE •••••••••• 0.6
.INCLUDES: Valve clearance
adjustment
7 1111A1 ARM, ROCKER :EXHAUST ••••••••• 0.6
.INCLUDES: Valve clearance
adjustment
8 1111L9 LIFTER, VALVE :INTAKE •••••••• 0.6
.INCLUDES: Valve clearance
adjustment
9 1111M0 LIFTER, VALVE :EXHAUST ••••••• 0.6
.INCLUDES: Valve clearance
adjustment
10 1171A4 TUBE, OIL •••••••••••••••••••• 0.3
11 1171A2 PLATE, OIL OUTLET VALVE •••••• 1.0
14 1111K5 TUBE, BREATHER ••••••••••••••• 0.2
15 6141C1 PLUG, SPARK •••••••••••••••••• 0.1
.INCLUDES: Spark plug check
C 1
