Honda GX610 User Manual

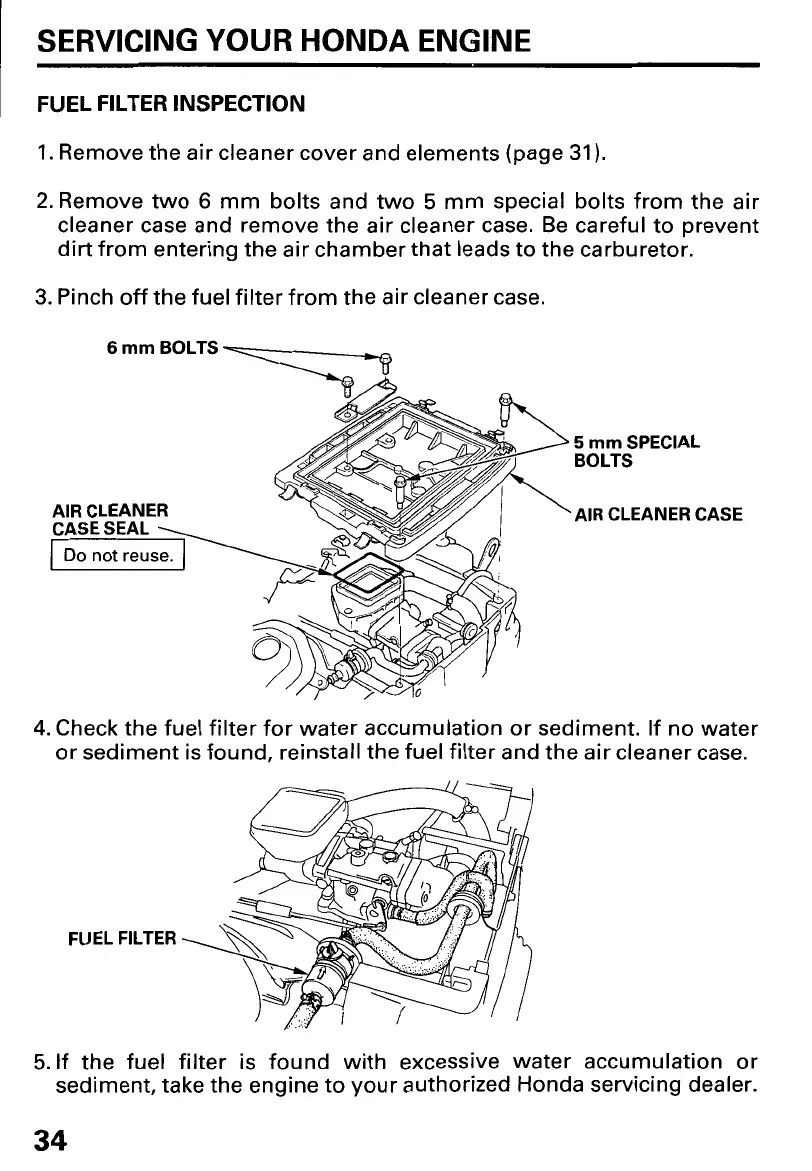

SERVICING YOUR HONDA ENGINE
FUEL FILTER INSPECTION
1. Remove the air cleaner cover and elements (page 31).
2. Remove two 6 mm bolts and two 5 mm special bolts from the air
cleaner case and remove the air cleaner case. Be careful to prevent
dirt from entering the air chamber that leads to the carburetor.
3. Pinch off the fuel filter from the air cleaner case.
6 rnrn BOLTS
5 rnrn SPECIAL
BOLTS
AIR CLEANER CASE
4. Check the fuel filter for water accumulation or sediment. If no water
or sediment is found, reinstall the fuel filter and the air cleaner case.
FUEL FILTER
5. If the fuel filter is found with excessive water accumulation or
sediment, take the engine to your authorized Honda servicing dealer.
34

Honda GX610 Specifications

General

PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized magneto
Engine Type	Air-cooled 4-stroke OHV
Displacement	614 cm³
Starting System	Electric / Recoil
Fuel Tank Capacity	6.5 L (1.7 US gal)
