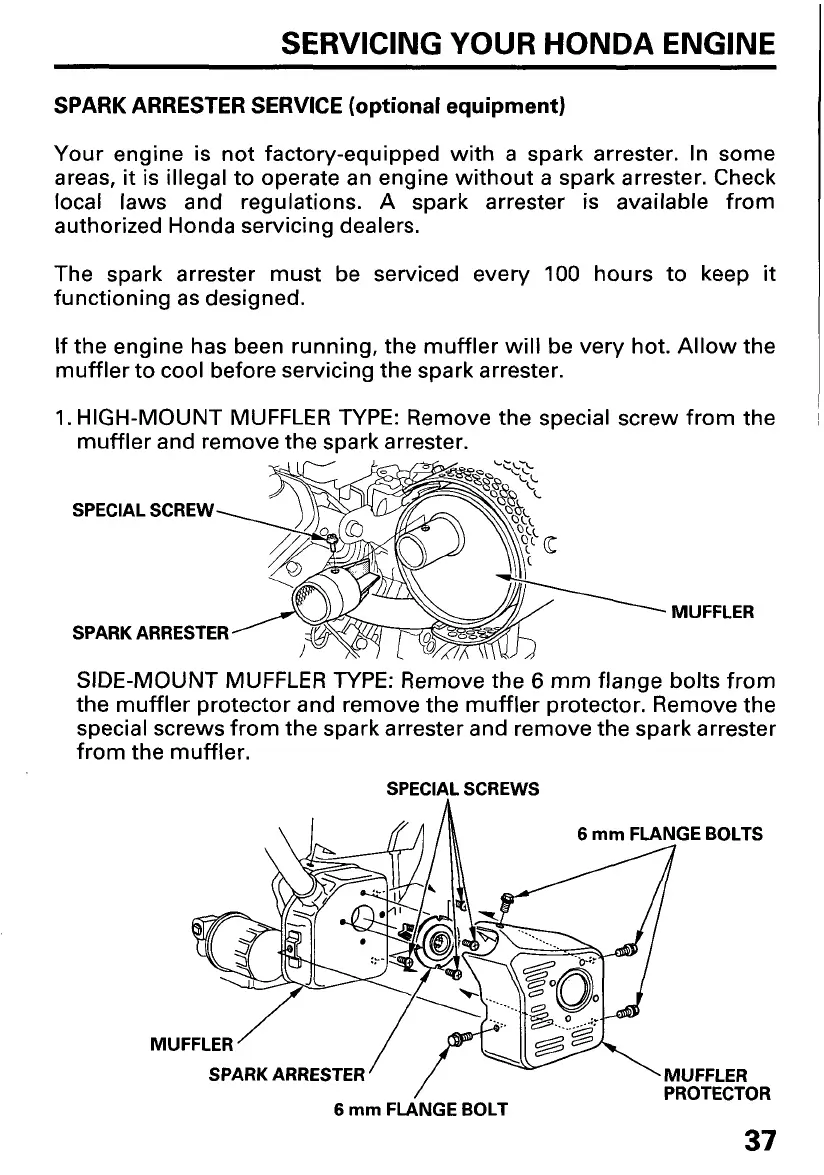

SERVICING YOUR HONDA ENGINE
SPARK ARRESTER SERVICE (optional equipment)
Your engine is not factory-equipped with a spark arrester. In some
areas,
it is illegal to operate an engine without a spark arrester. Check
local laws and regulations.
A spark arrester is available from
authorized Honda servicing dealers.
The spark arrester must be serviced every
100 hours to keep it
functioning as designed.
If the engine has been running, the muffler will be very hot. Allow the
muffler to cool before servicing the spark arrester.
1. HIGH-MOUNT MUFFLER TYPE: Remove the special screw from the
muffler and remove the spark arrester.
SIDE-MOUNT MUFFLER TYPE: Remove the
6 mm flange bolts from
the muffler protector and remove the muffler protector. Remove the
special screws from the spark arrester and remove the spark arrester
from the muffler.
SPECIAL SCREWS
SPARK ARRESTER
6 mm FLANGE BOLT
37

Honda GX610 Specifications

General

PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized magneto
Engine Type	Air-cooled 4-stroke OHV
Displacement	614 cm³
Starting System	Electric / Recoil
Fuel Tank Capacity	6.5 L (1.7 US gal)
