3

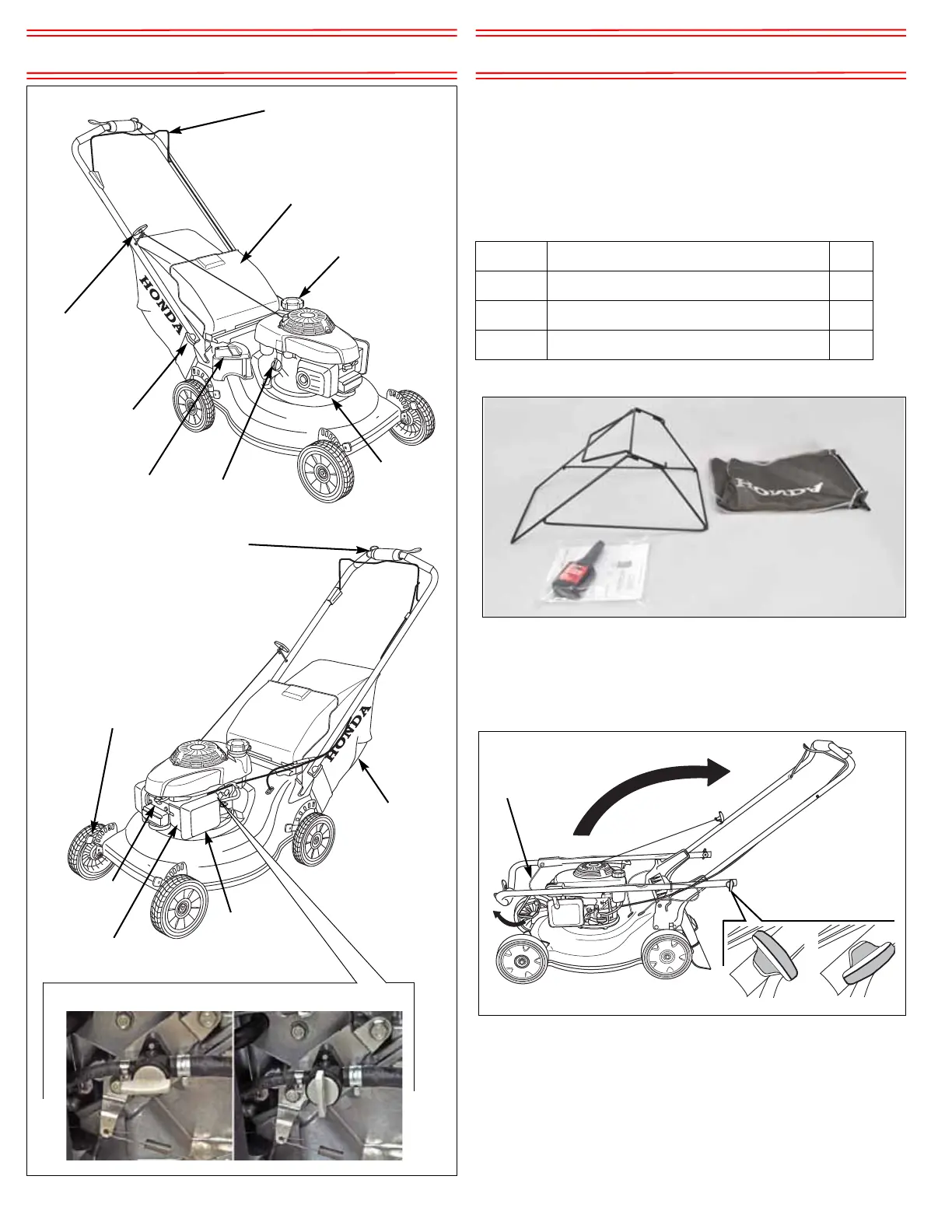

PARTS AND CONTROLS INITIAL MOWER SETUP
List of Parts
With help from an assistant, carefully remove the mower and loose
parts from the carton and compare the loose parts against the
following list. Contact the authorized Honda dealer from whom you
purchased the mower if any of the loose parts shown are not included
with your mower.
Adjust the Handlebar
1. With the handlebar adjust knobs in the unlocked position, pull the
blade control lever against the handlebar, and then raise the
handlebar into the mowing position .
2. Align the adjust knobs with one of the two holes on each handle
stay. Setting the adjust knobs in the lowest holes raises the
handlebar to its highest position.
3. Turn the handlebar adjust knobs 90 degrees into the lock
position, making sure both sides are positioned at the same
height.
4. Remove all the cardboard from around the handlebar.
HONDA
BLADE CONTROL
LEVER
(P. 8)
REAR
DISCHARGE
GUARD
(P. 5)
FUEL TANK CAP (P. 7)
MUFFLER
(P. 13)
OIL FILLER CAP
(P. 4)
HANDLEBAR
ADJUST
KNOB (2)
(P. 3)
RECOIL
STARTER
GRIP
(P. 8)
CUTTING HEIGHT
ADJUSTMENT
LEVER (4)
(P. 6)
GRASS BAG
(P. 4)
AIR FILTER
(P. 12)
SPARK PLUG
CAP
(P. 13)
CARBURETOR
SMART DRIVE
CONTROL
(P. 8)
CLIP DIRECTOR
(P. 4)
FUEL VALVE ON FUEL VALVE OFF
Ref. No. Description Qty.
Grass bag frame 1
Grass bag 1
Engine oil and owner’s manual 1
HANDLEBAR
ADJUST KNOBS
UNLOCKED
LOCKED
BLADE CONTROL
LEVER
