3

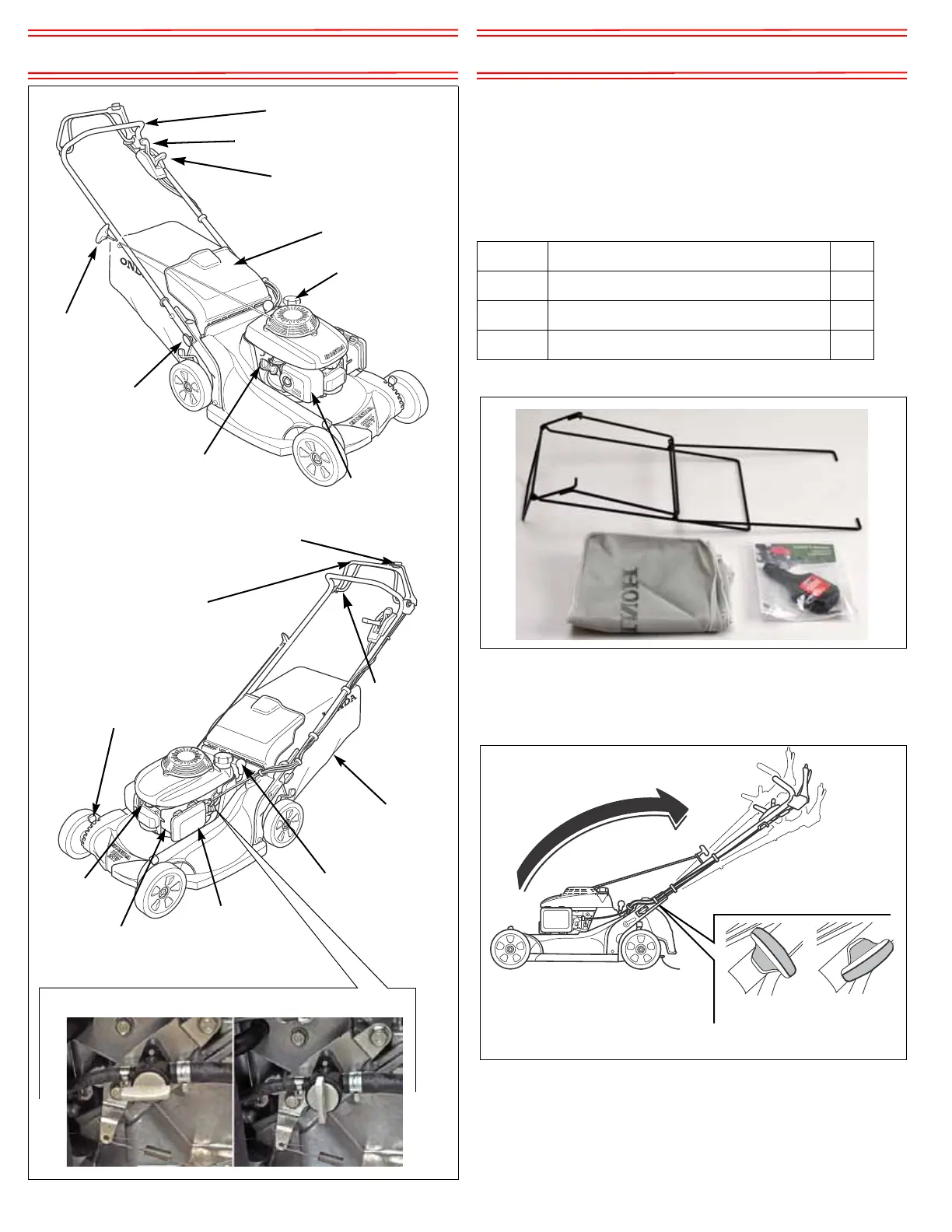

PARTS AND CONTROLS INITIAL MOWER SETUP
List of Parts
With help of an assistant, carefully remove the mower and loose parts
from the carton and compare the loose parts against the following list.
Contact the authorized Honda dealer from whom you purchased the
mower if any of the loose parts shown are not included with the
mower.
Adjust the Handlebar
1. With the handlebar adjust knobs in the unlocked position, raise
the handlebar into the mowing position.
2. Align the adjust knobs with one of the three holes on each handle
stay. Setting the adjust knobs in the lowest holes raises the
handlebar to its highest position.
3. Turn the handlebar adjust knobs 90 degrees into the lock
position, making sure both sides are positioned at the same
height.
4. Remove all the cardboard from around the handlebar.
HANDLEBAR
REAR
DISCHARGE
GUARD
(P. 5)
FUEL TANK CAP
(P. 7)
MUFFLER
(P. 13)
OIL FILLER CAP
(P. 4)
HANDLEBAR
ADJUST
KNOB (2)
(P. 3)
RECOIL
STARTER
GRIP
CUTTING HEIGHT
ADJUSTMENT
LEVER (4)
(P. 6)
GRASS BAG
(P. 4)
AIR FILTER
(P. 12)
SPARK PLUG
CAP
(P. 13)
CARBURETOR
BLADE
CONTROL
LEVER
(P. 8)
BLADE
CONTROL
BUTTON
DRIVE
CLUTCH
LEVER
(P. 8)
FUEL VALVE ON FUEL VALVE OFF
CLIP DIRECTOR®
KNOB
(P. 5)
SHIFT LEVER (P. 9)
THROTTLE LEVER (P. 8)
Ref. No. Description Qty.
Grass bag frame 1
Grass bag 1
Engine oil and owner’s manual 1
HANDLEBAR ADJUST
KNOBS
UNLOCKED
LOCKED
