6

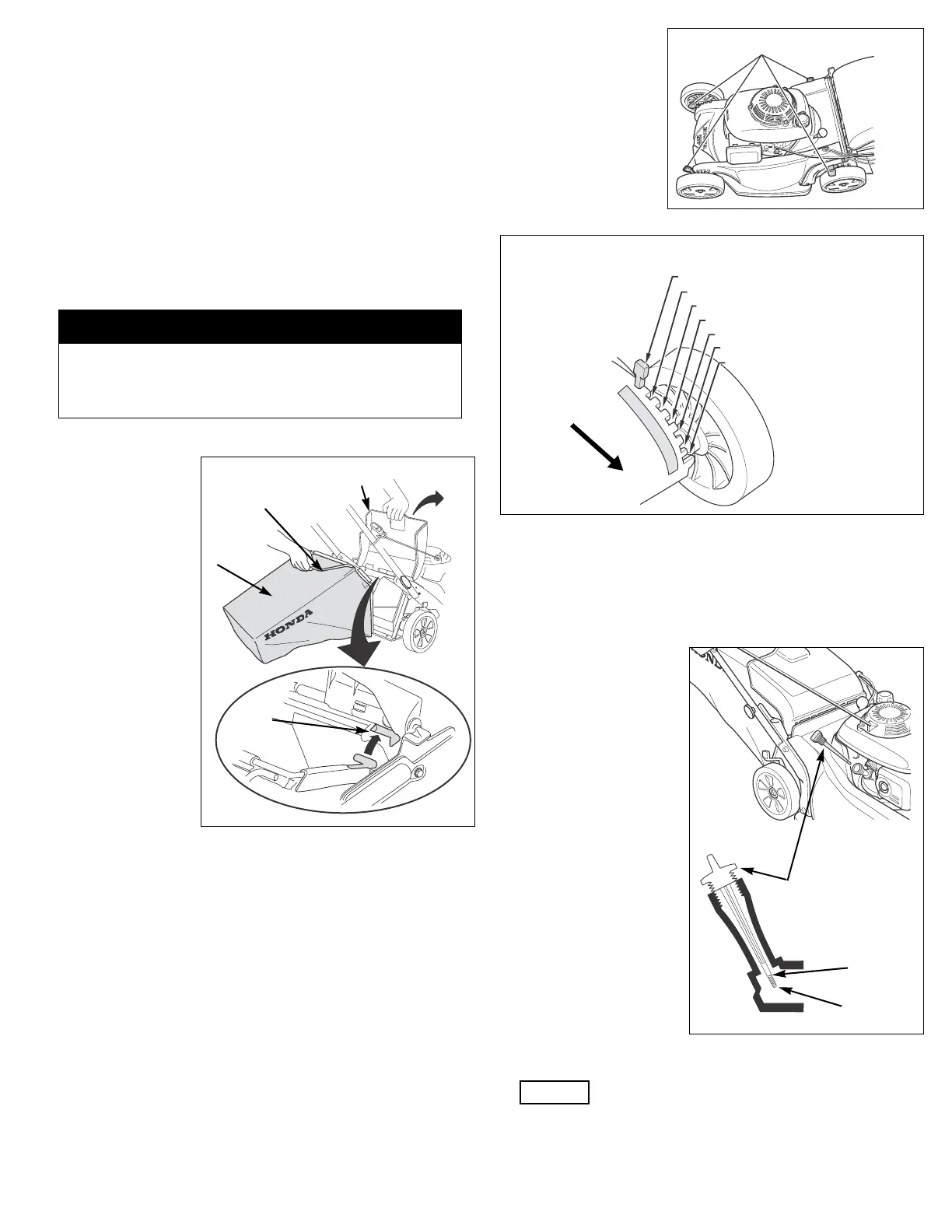

Grass Bag
A lawn mower works like a vacuum cleaner; it blows air through the
bag fabric, which traps the grass clippings. Always empty the grass
bag before it becomes filled to the limit of its capacity. Bagging
performance will diminish after the bag becomes about 90% filled.
Also, the bag is easier to empty when it is not packed full.
You can leave the grass bag on the mower during mowing, even
when full mulching is selected.
To minimize dust and fine particles from passing through the grass
bag fabric, it is best to mow grass in the morning when the grass is
damp.
Inspection
During use, the grass bag material is subject to normal wear and tear.
Grass bag replacement is explained on page 4.
Installation
1. Raise the
discharge guard
and hook the grass
bag onto the
mower deck as
shown.
Clean any grass
clippings from the
hook channel.
2. Lower the
discharge guard to
secure the grass
bag.
Removal
1. Raise the
discharge guard,
grasp the grass
bag handle, and
remove the grass
bag.
2. Release the discharge guard.
3. When the grass bag is clear of the discharge guard, you can lift it
through the handlebar opening or remove it to the rear of the
mower below the handlebar.
Cutting Height Adjustment
Each wheel of the mower can be adjusted to one of seven settings.
The actual height of cut grass will vary with lawn and soil conditions.
Be sure the engine is not running when adjusting the cutting height.
To adjust cutting height,
pull each adjustment lever
toward the wheel, and
move it into another notch.
Move all four adjustment
levers to the same
position, forward for tall
grass and rearward for
short grass.
If you are not sure what cutting height to select, start with a high
setting and check the appearance of the lawn after mowing a small
area. Then readjust the cutting height if necessary.
Check the Oil Level
1. Unscrew and remove the filler cap/dipstick and wipe it clean.
2. Insert and remove the
dipstick without
screwing it into the
filler neck. Check the oil
level shown on the
dipstick.
3. If the oil level is low, add
oil to reach the upper
limit mark on the dipstick.
Do not overfill. If the
engine is overfilled, the
excess oil may get
transferred to the air
cleaner housing and air
filter. An indication of
overfilling is white or blue
smoke coming from the
muffler when the engine
is running.
Use 10W-30 API Service
category SJ oil for normal
conditions. For additional
oil recommendations,
see page 12.
Running the engine with a low oil level can cause engine
damage.
4. Screw in the filler cap/dipstick securely.
CAUTION
An excessively worn grass bag may allow objects to be thrown
toward the operator.
Replace a worn grass bag to prevent possible injury.
GRASS BAG
HANDLE
BAG
HOOK
CHANNEL
DISCHARGE GUARD
3/4 in (20 mm)
1-1/4 in (32 mm)
2 in (46 mm)
2-1/2 in (62 mm)
3 in (75 mm)
3-1/2 in (88 mm)
4 in (100 mm)
FORWARD
DIRECTION
THE CUTTING HEIGHT FIGURES ARE APPROXIMATE
FILLER CAP
/DIPSTICK
LOWER
LIMIT
UPPER
LIMIT
