11

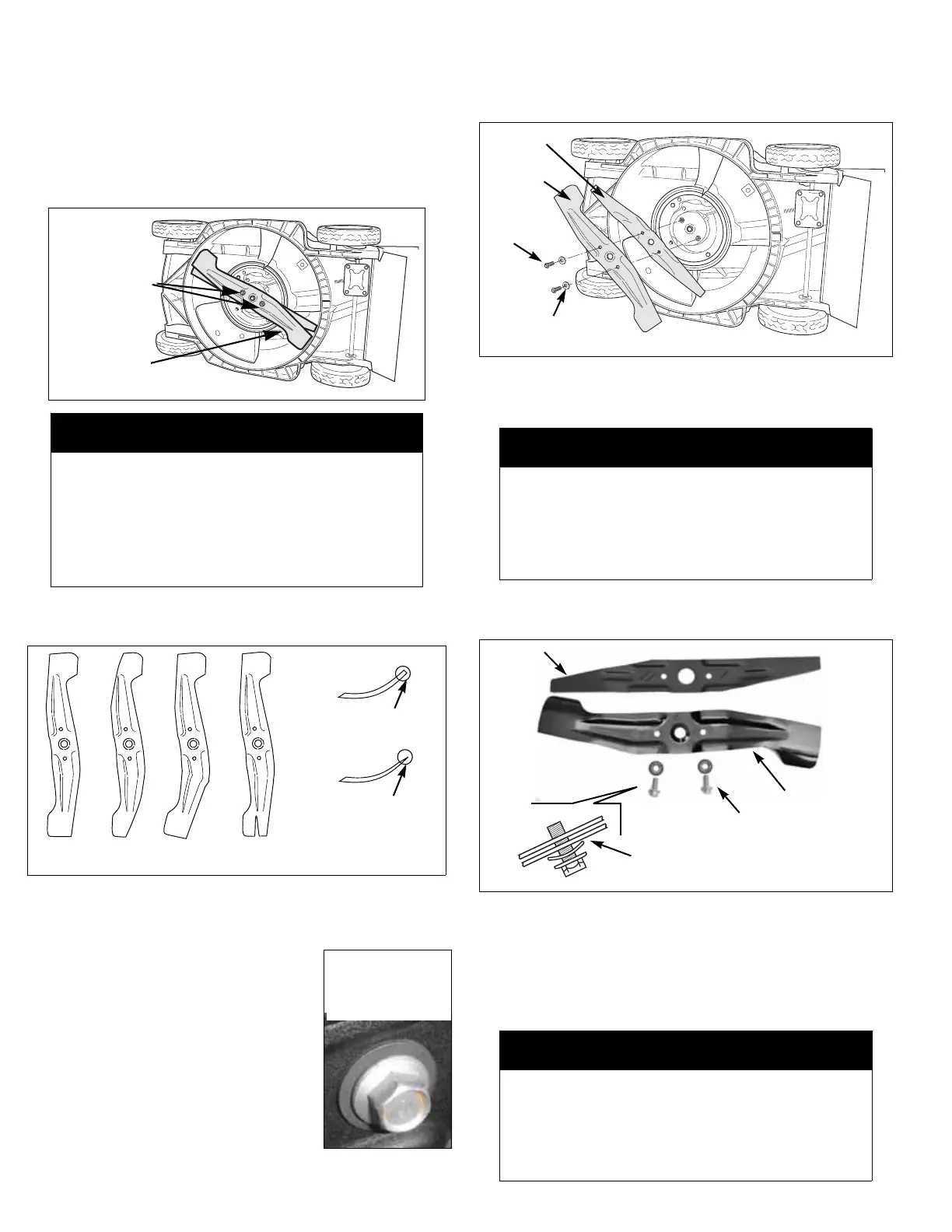

Blade Inspection
1. Turn the fuel valve OFF (page 3).
2. Disconnect the spark plug cap from the spark plug (page 13).
3. Tilt the mower to the right side so that the fuel cap side is up. This
will help to prevent fuel leakage and hard starting due to carburetor
flooding.
4. Inspect the blades for damage, cracks, and excessive rust or
corrosion.
A dull blade can be sharpened, but a blade that is excessively worn,
bent, cracked, heavily rusted, or otherwise damaged must be
replaced.
If a blade is bent, take the lawn mower to an authorized Honda
servicing dealer for inspection.
Blade Mounting Bolt Inspection
Inspect the blade bolts for any signs of damage
or looseness. If they are damaged, they must
be replaced.
Blade bolt torque: 36 ~ 43 ft-lb (49 ~ 59 N·m)
If they appear loose, a torque wrench must be
used to accurately tighten the blade bolts to the
required torque. If you do not have a torque
wrench, take your lawn mower to an authorized
dealer to have the bolts replaced or tightened.
Use only Honda Genuine blade bolts and
special washers, since they are specifically
designed for this purpose. Replacement part
numbers are on page 21.
Blade Replacement
1. Remove the two blade bolts with a 14 mm (6 point) socket wrench.
Use a wooden block to prevent the blades from turning when
removing the bolts. Remove the blades.
2. Clean dirt and grass from around the blade mounting area.
3. Install the sharpened or replacement blades using the two blade
bolts and special washers as shown below.
The blade bolts and washers are specially designed for this
application. When replacing bolts and washers, use only Honda
Genuine replacement parts.
4. Tighten the blade bolts with a torque wrench to the specified
torque. Use a wooden block to prevent the blades from turning
when tightening the bolts, as shown on page 12.
Blade bolt torque: 36 ~ 43 ft-lb (49 ~ 59 N·m)
If you do not have a torque wrench, have an authorized Honda
servicing dealer tighten the blade bolts.
WARNING
A worn, cracked, or damaged blade can break, and
pieces of the damaged blade can become dangerous
projectiles.
Thrown objects can cause serious injury.
Inspect the blades regularly, and do not operate the
mower with worn or damaged blades.
NORMAL WORN BENT CRACKED
NORMAL
TRAILING EDGE
EXCESSIVELY WORN
TRAILING EDGE
INSPECT WASHERS
AND BOLT HEADS
FOR LOOSENESS
AND DAMAGE
WARNING
Operating the mower with only one blade will result in an
improperly seated blade that can become dangerous
projectiles.
Thrown objects can cause serious injury.
Always install both blades as a set.
DANGER
If the blade bolts are not torqued properly, the blade could
loosen and be thrown from the mower.
Blades thrown from the mower could seriously hurt or kill
someone.
Ensure the blade bolts are torqued properly.
UPPER BLADE
LOWER
BLADE
BLADE
BOLT (2)
SPECIAL
WASHER (2)
BLADE BOLT [2]
AND WASHER [2]
SPECIAL WASHER
DIRECTION
UPPER BLADE
LOWER BLADE
