3

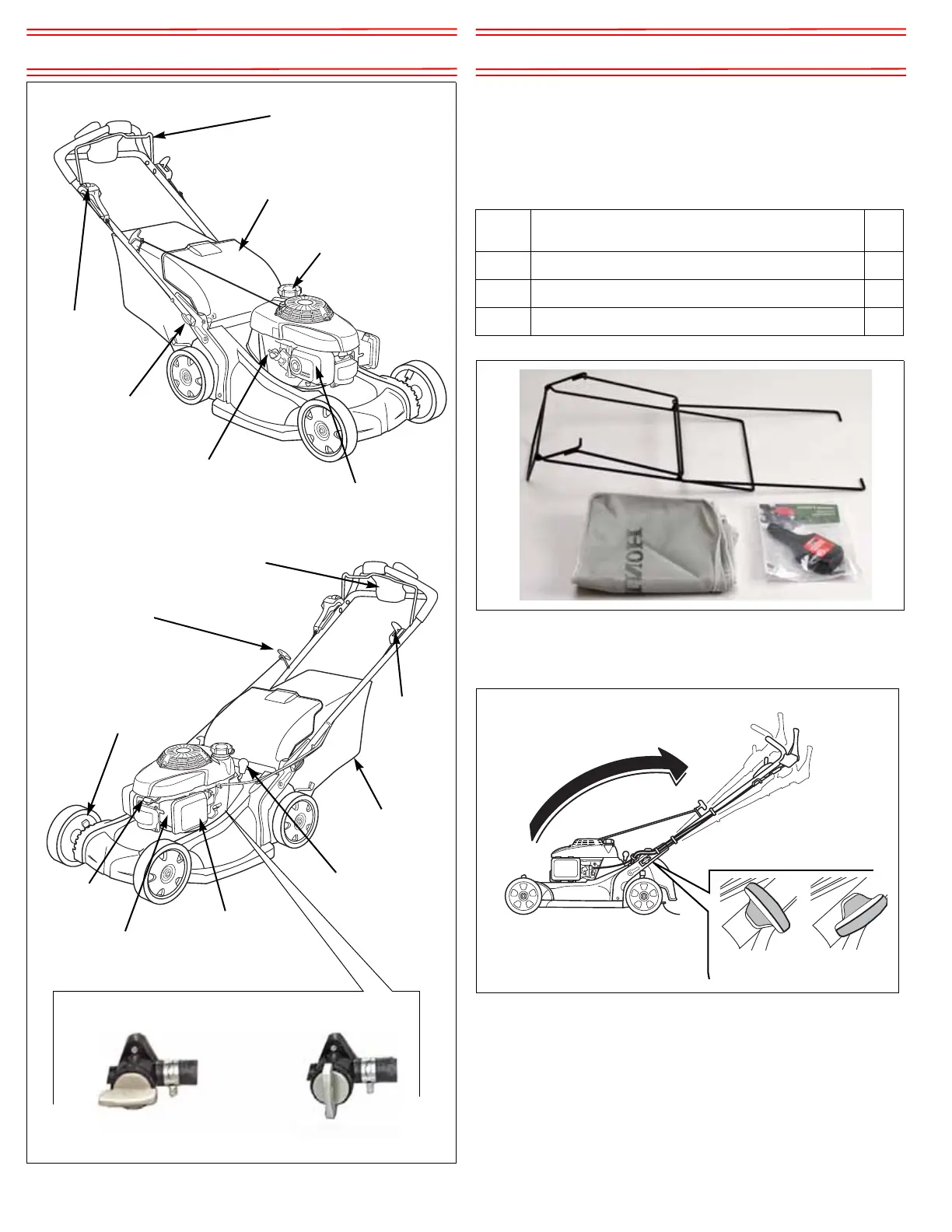

PARTS AND CONTROLS INITIAL MOWER SETUP
List of Parts
With help from an assistant, carefully remove the mower and loose
parts from the carton and compare the loose parts against the
following list. Contact the authorized Honda dealer from whom you
purchased the mower if any of the loose parts shown are not included
with your mower.
Adjust the Handlebar
1. With the handlebar adjust knobs in the unlocked position, raise the
handlebar into the mowing position.
2. Align the adjust knobs with one of the three holes on each handle
stay. Setting the adjust knobs in the lowest holes raises the
handlebar to its highest position.
3. Turn the handlebar adjust knobs 90 degrees into the lock position,
making sure both sides are positioned at the same height.
4. Remove all the cardboard from around the handlebar.
BLADE CONTROL
LEVER
(P. 8)
REAR
DISCHARGE
GUARD
(P. 5)
FUEL TANK CAP (P. 7)
MUFFLER
(P. 13)
OIL FILLER CAP
(P. 12)
HANDLEBAR
ADJUST KNOB (2)
(P. 4)
RECOIL
STARTER
GRIP
(P. 9)
CUTTING HEIGHT
ADJUSTMENT
LEVER (4)
(P. 6)
GRASS BAG
(P. 6)
AIR FILTER
(P. 12)
SPARK PLUG
CAP
(P. 13)
CARBURETOR
SELECT DRIVE
CONTROL
(P. 8)
CLIP DIRECTOR®
KNOB
(P. 5)
ROTO-STOP
®
BUTTON (P. 8)
THROTTLE
LEVER
(P. 8)
FUEL VALVE ON FUEL VALVE OFF
Ref.
No.
Description Qty.
Grass bag frame 1
Grass bag 1
Engine oil and owner’s manual 1
HANDLEBAR ADJUST
KNOBS
LOCKED
UNLOCKED
To Next Page
