SAFETY LABEL LOCATION
This label warns you of potential hazards that can cause serious
injury. Carefully read meaning. If label comes off or becomes hard to
read, contact your dealer for a replacement.
PRODUCT IDENTIFICATION PLATE
Record the frame and engine serial numbers in the space below. You
will need these numbers when ordering parts and when making
technical or warranty inquires.
Frame serial number:___________________________
Engine serial number:___________________________
Date of purchase:______/______/______

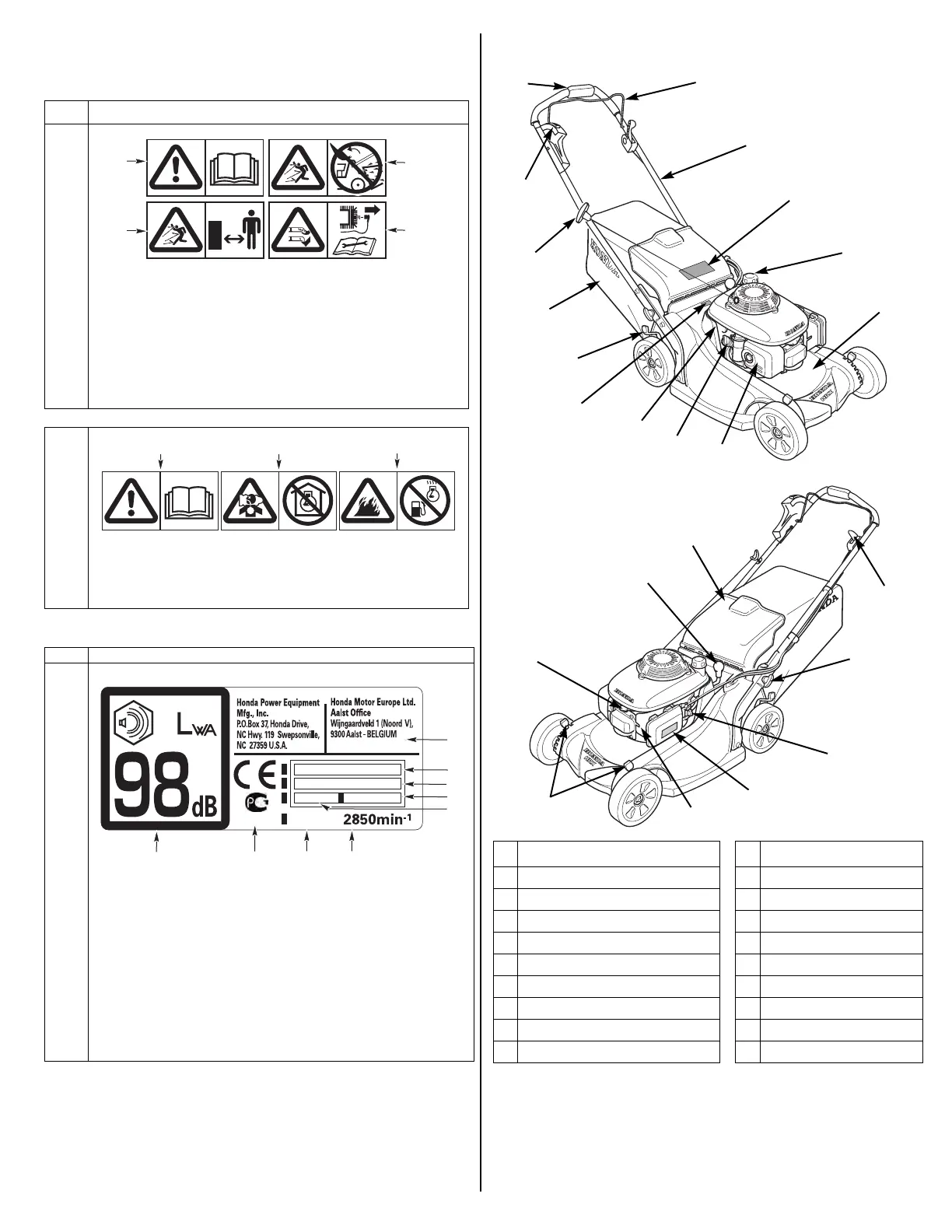

COMPONENT IDENTIFICATION
Letter Meaning
A
1. Read the owner’s manual before using the mower.
2. Risk of projections: Keep third persons away from the area
during use.
3. Risk of cuts. Rotating blade: Do not put hands or feet inside
the blade enclosure. Disconnect the spark plug cap before
performing any operation of maintenance or repairs.
4. Do not operate without either discharge guard or grass
catcher in place.
B
5. Read the owner’s manual before using the mower.
6. The engine emits toxic carbon monoxide. Do not run in an
enclosed area.
7. Petrol is highly flammable. Stop the engine before refueling.
Letter Meaning
C
1. Guaranteed sound power level according to Directive
2000/14/EC
2. Conformity mark, according to EC-Directive and GOST-R
conformity mark
3. Nominal power in kilowatts
4. Maximum engine speed
5. Weight in kilograms
6. Year of manufacture
7. Serial number
8. Model
9. Manufacturer’s name and address and authorized
representative
1
2
3
4
5
6
7
2
1
3
4
6
7
8
9
5
AЯ04
3.2kW
1 Blade control lever 11
Roto-Stop
®
button
2 Handlebar 12 Smart Drive control
3 Fuel tank cap 13 Throttle lever
4 Mower deck 14 Handlebar adjust knob (2)
5 Muffler 15 Fuel valve
6 Oil filler cap 16 Air cleaner
7 Engine serial number 17 Carburetor
8 Cutting height adjustment lever (4) 18 Spark plug cap
9 Grass bag 19 Clip Director knob
10 Recoil starter 20 Discharge guard
[1]
[12]
[9]
[20]
[10]
A [LABEL]
[8]
[11]
C [LABEL]
[13]
[2]
[3]
[7]
[6]
[5]
[18]
[14]
[19]
[15]
[16]
[17]
[4]
[8]
B [LABEL]
