Honda PCX 150 User Manual

Inspecting the Rear Brake Shoe
Wear
The rear brake is equipped with a brake wear
indicator.
When the brake is applied, an arrow attached
to the brake arm moves toward a reference
mark on the brake panel. If the arrow aligns
with the reference mark on full application of
the brake, the brake shoes must be replaced.
See your dealer for this service.
When the brake service is necessary, see your
dealer. Use only Honda Genuine Parts or its
equivalent.
20180912083000_32K97Q000_eng_BOOK Page 105 Wednesday, September 12 2018 08:36:26 JST
Brakes u Inspecting the Rear Brake Shoe Wear
Maintenance
100

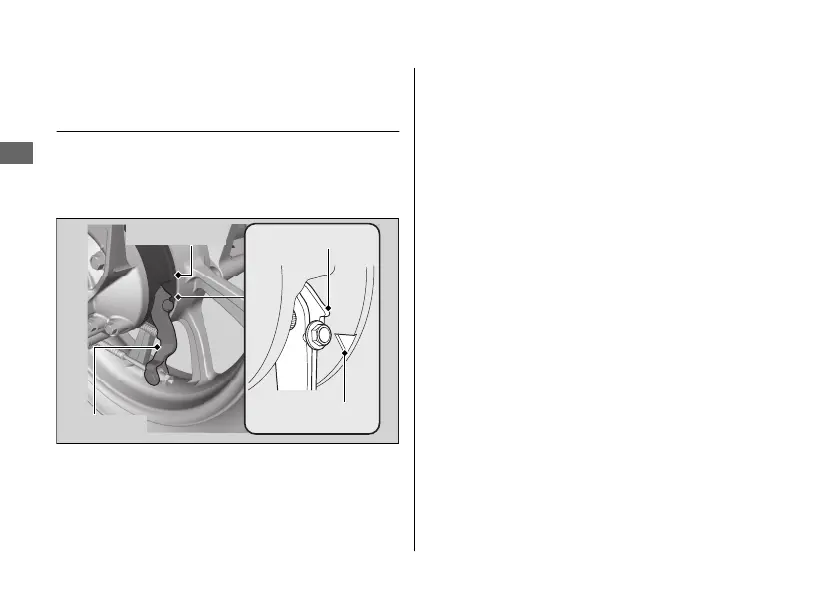

Brake arm
Brake panel
Arrow
Reference mark

Honda PCX 150 Specifications

General

Displacement	149cc
Bore x Stroke	57.3mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Ignition	Full transistorized ignition
Transmission	Automatic V-Matic
Front Suspension	31mm telescopic fork
Front Brake	Hydraulic disc
Rear Brake	Mechanical drum
Front Tire	100/80-14
Rear Tire	120/70-14
Wheelbase	51.8 inches
Seat Height	30.1 inches
Fuel Capacity	2.1 gallons
Starter	Electric
Front Brake Disc Size	220mm
Rear Brake Drum Size	130mm
Rear Suspension	Twin shock
