Honda PCX User Manual

Fuse Box:
Pull out the old fuse and install a new fuse.
Openthefuseboxcover( ).
Remove the battery cover (page ).
Thefusebox( )islocatednearthebattery.
The specified fuses are:
Main fuse 1
Main fuse 2
Sub fuse
The spare fuses ( ) are located in the
fuse box.
Close the fuse box cover and install the
battery cover.
4.
3.
2.
1.
(1)
(2)
2
(3)
1
3
112

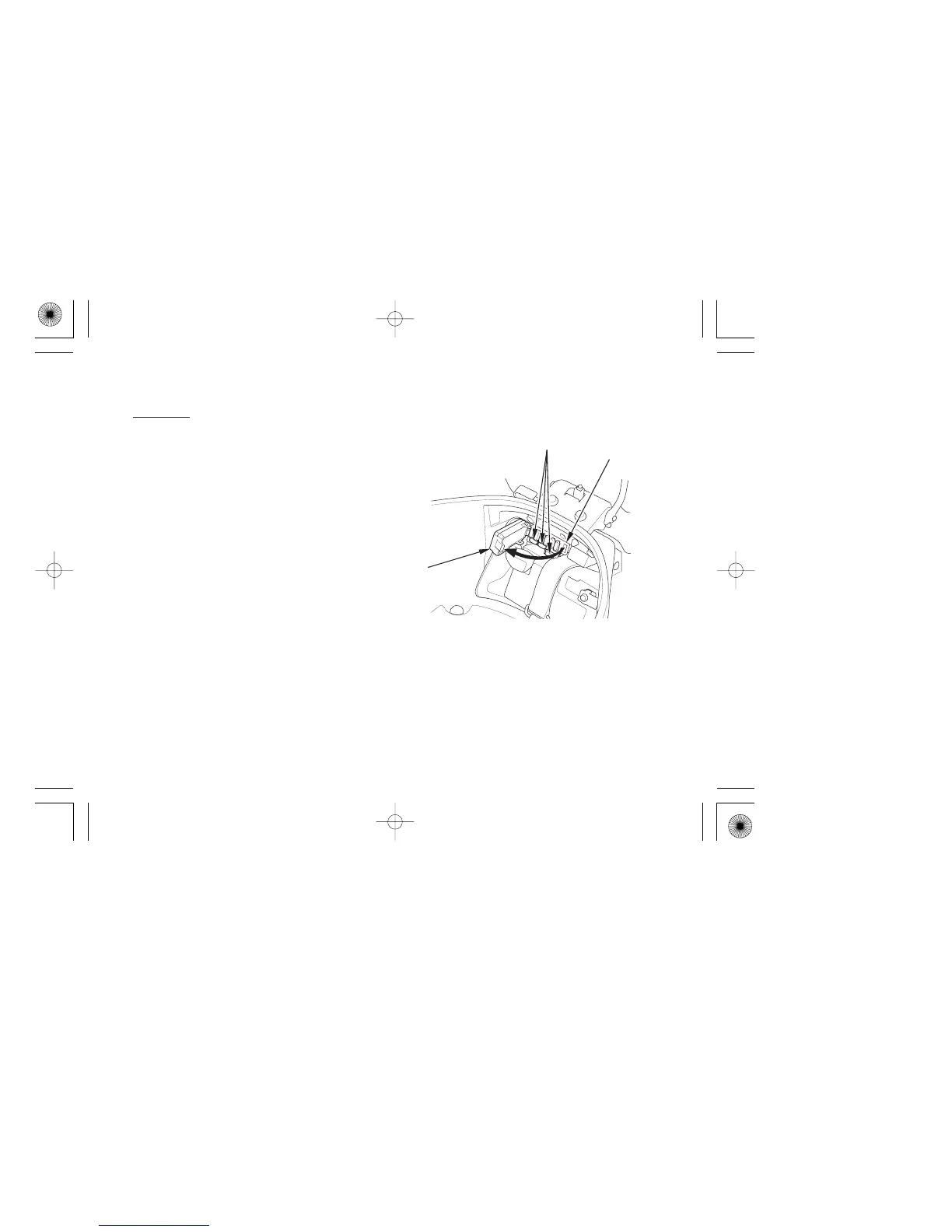

(1) Fuse box
(2) Fuse box cover
(3) Spare fuses
115
10A
10A, 15A
30A
10/02/17 17:02:14 32KWN600_125

Honda PCX Specifications

General

Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic
Front Suspension	Telescopic fork
Engine Type	Single-cylinder, liquid-cooled, 4-stroke
Rear Suspension	Twin shock
Front Brake	Single disc
