3 EN

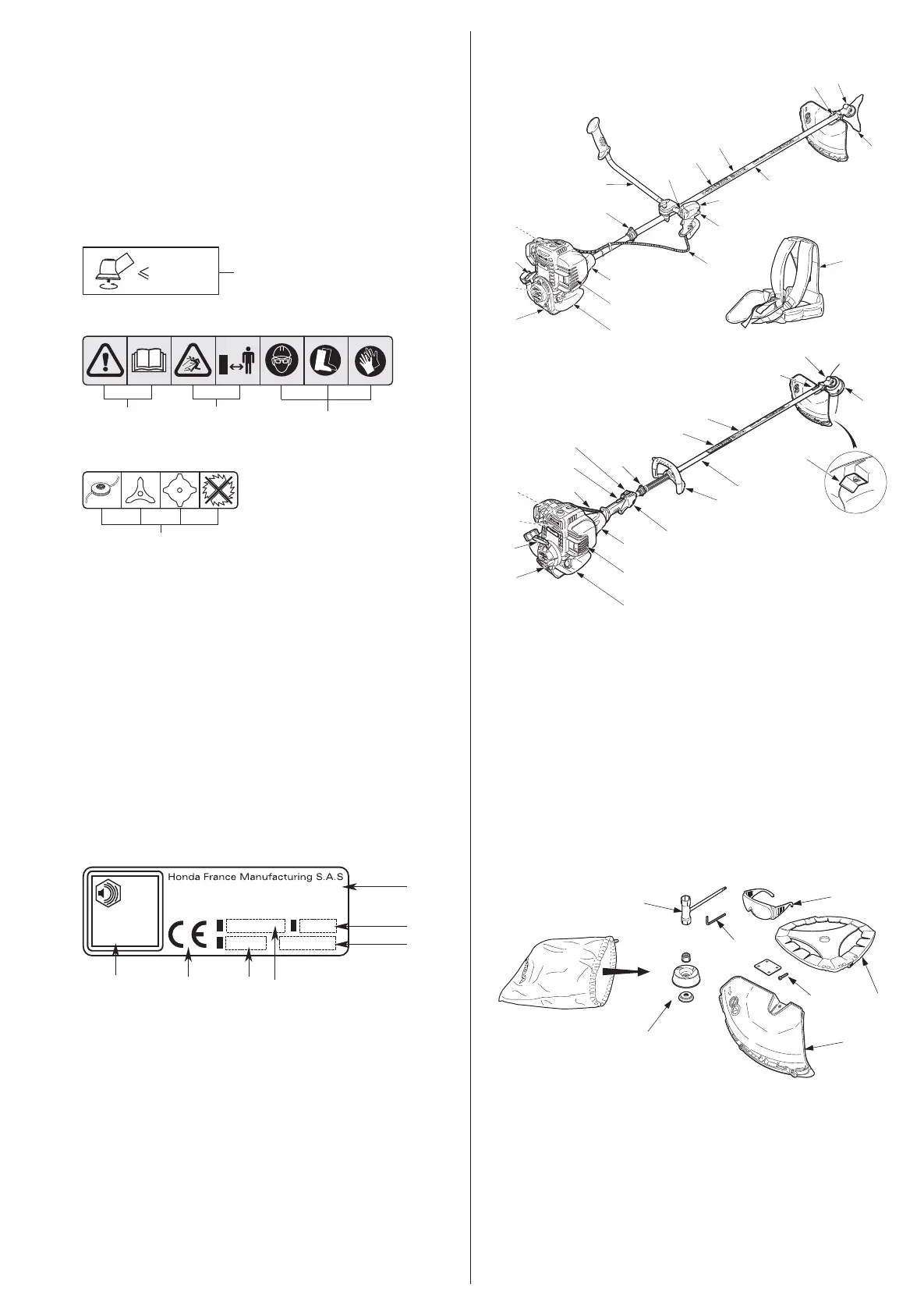

SAFETY STICKERS
Your brushcutter must be used with care.
For this reason, adhesive labels in the form of pictograms have
been placed on the machine to remind you of the main operating
precautions. Their meanings are specified below. These labels are
considered to be an integral part of the machine. If any of them
comes off or becomes difficult to read, please contact your dealer to
replace it. We also recommend that you should carefully read all the
safety instructions (see page 2).
IDENTIFICATION OF MACHINE
GENERAL DESCRIPTION
IDENTIFICATION OF COMPONENTS
CONTENTS OF BAG
[1] WARNING: Read the owner's manual before using the machine.
[2] WARNING: Projection hazard. Ensure that all people and animals stay
at a minimum distance of 15 m when you operate the machine.
[3] Always wear goggles, a hard hat and any other necessary protective
accessories to protect your eyes and body from objects (such as
gravel, glass or pieces of metal) thrown up by the cutting attachment.
[4] The brushcutter is to be used with a nylon or a metal disc line cutting
attachment only. Do not use a circular saw blade with the standard
protector.
[5] Cutting attachment rotation speed.
[6] Guaranteed sound power level Directive 2000/14/EC
[7] Model - Type
[8] Model - Name
[9] Year of manufacture
[10] Serial number
[11] Name and address of manufacturer
[12] Conformity mark, according to the 98/37/CE, 2004/108/EC,
2000/14/EC, 2005/88/EC modified directive
[1]
[4]
[5]
[B] General instructions
[A] Rotating speed
[C] Authorized cutting attachments
[2]
[3]
n/min.
XXXX
[D] Identification plate
[9]
[11]
[7] [8]
[10]
[6]
dB
-----
WA
L
Rue des Châtaigniers - Pôle 45
45140 Ormes - France
[12]
[13] Engine [23] Transmission shaf
[14] Spark plug [24] Transmission head
[15] Recoil starter [25] Nylon line cutting head
[16] Air filter [26] 3-tooth blade
[17] Fuel tank [27] Harness attachment point
[18] Throttle cable [28] Double harness
[19] Clutch housing [29] Bike handle
[20] Control grip [30] Loop handle
[21] Throttle control trigger [31] Line cutter blade
[22] Start / Stop switch
[32] Attachment protector
[33] Screw and spacer
[34] Goggles
[35] 3-tooth blade and its protection
[36] Stabilizer, spacer and nut
[37] Multipurpose wrench
[38] Hexagonal wrench
[25]
[23]
[30]
[13]
[15]
[24]
[24]
[31]
[22]
[22]
[A]
[B]
[C]
[14]
[14]
[D]
[23]
[26]
[18]
[18]
[20]
[20]
[28]
[21]
[21]
[16]
[16]
[19]
[19]
[17]
[17]
[13]
[15]
[A]
[B]
[C]
[27]
[27]
[29]
[D]
[32]
[33]
[34]
[35]
[36]
[37]
[38]
