Honda XR250R User Manual

7. Measure the free play at the top of the
manual decompressor lever (7).
Free play: 5-8 mm (3/16 - 5/16 in)
To adjust: Loosen the manual
decompressor lock nut (2) and turn the
adjusting nut (1).
Other Checks:
Check the decompression cable for kinks or
signs of wear that could cause sticking or
failure. Lubricate the decompression cable
with a commercially available cable lubricant
to prevent premature wear and corrosion.

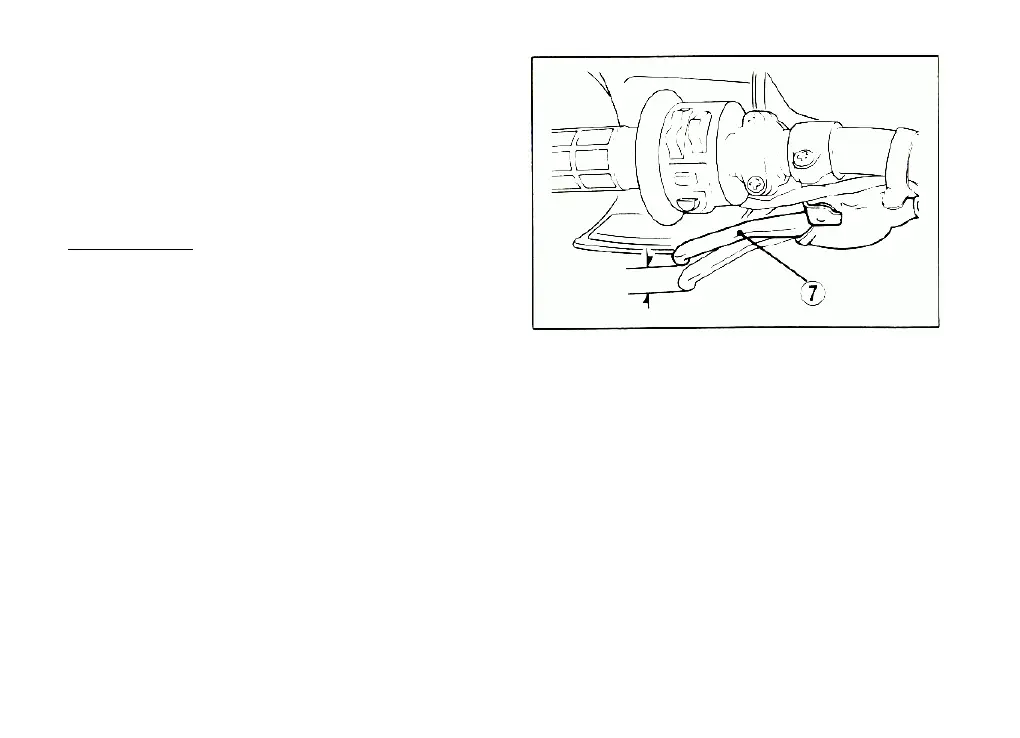

(7) Manual decompressor lever
60

Honda XR250R Specifications

General

Displacement	249 cc
Bore x Stroke	73.0 mm x 59.5 mm
Compression Ratio	9.3:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Pro-Link single shock
Front Brake	Single disc
Rear Brake	Drum
Front Tire	80/100-21
Engine Type	Air-cooled, four-stroke, single-cylinder
Fuel Capacity	9.5 liters (2.5 US gal)
