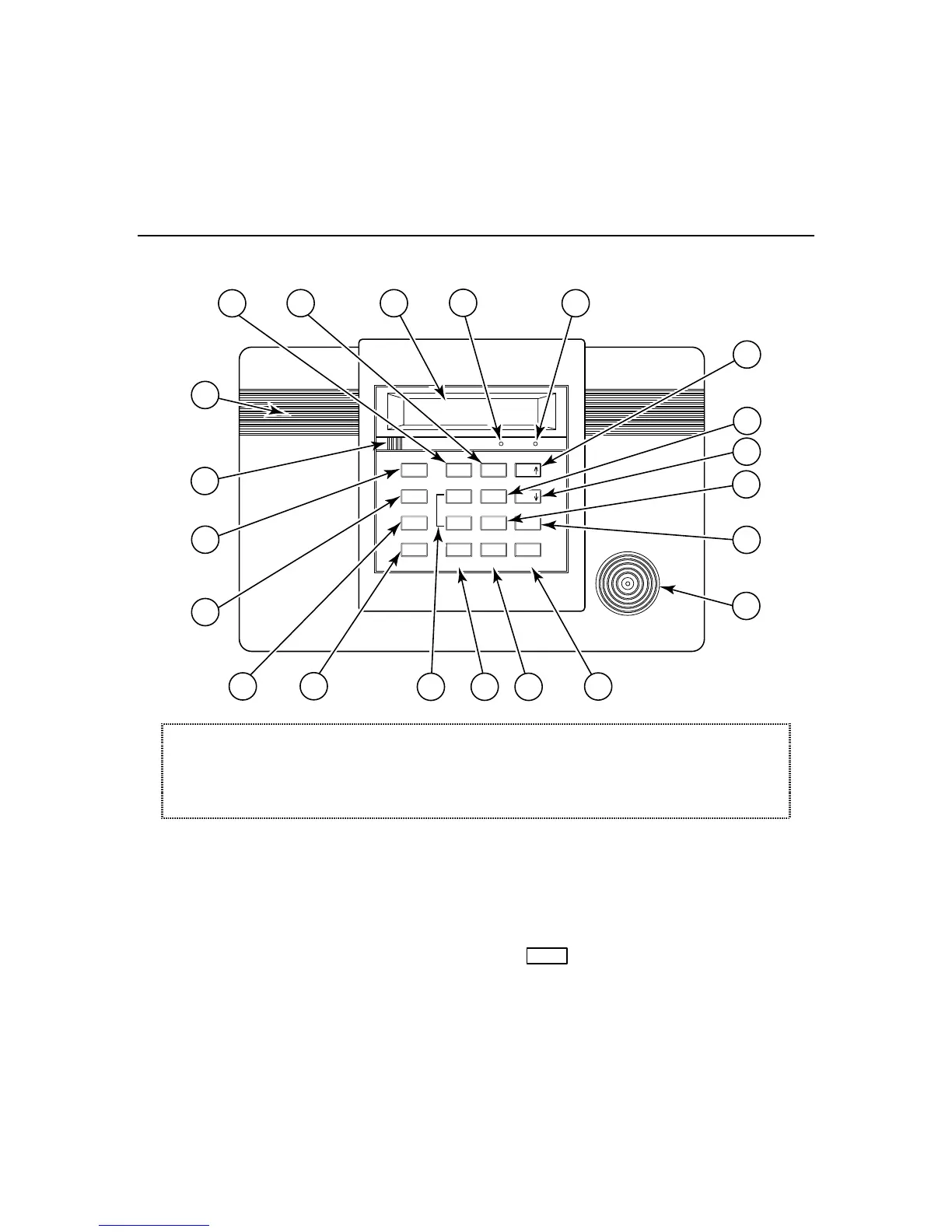

Master Keypad Definitions
12
456
789
0
#
*
RECORD VOLUME PLAY
ARMED READY
ESCAPE
DELETE
ADD
SELECT
OFF
AWAY
STAY
AUX
LIGHTS ON TEST BYPASS
LIGHTS OFF CODE CHIME
1
3
2
3
4
5
6
7
8
9
FUNCTION
10
11
12
NO DELAYSTATUS
15
16
17
19
18
21
20
01009-022-V1
13
14
IMPORTANT!
When you use the keypad to enter codes and commands, press the keys within 2 seconds of one another.
If 2 seconds elapse without a key depression, the entry is aborted and must be repeated from its
beginning.
NOTE: Different timeouts may occur when defining auxiliary functions and setting the real-time clock.
Note: The system functions described below are for reference only and require additional key entries to activate.
1. DISPLAY WINDOW: Liquid Crystal Display
(LCD). Displays protection point identification
and system status, messages, and user
instructions.
2. ARMED INDICATOR: (RED) Lit when the
system has been armed (STAY, AWAY, NO
DELAY). Blinks when armed and fault exists, or
once per second when AVM (VOX or Talk) or
speaker phone mode is active.
3. READY INDICATOR: When lit, indicates
system is ready to be armed; blinking indicates
system is not ready (a zone is open). Blinks once
per second when AVM (VOX or Talk) or speaker
phone mode is active.
4. PLAY
KEY: Announces a user’s message if one
was previously recorded. See RECORD function.
Used to adjust volume of voice messages.
