Honeywell C7046C Product Data

SOLID STATE ECONOMIZER SYSTEM
63-2484—1
3
SPECIFICATIONS
IMPORTANT
The specifications given in this publication do not
include normal manufacturing tolerances. Therefore,
these units may not exactly match the specifications
listed. Also, these products are tested and calibrated
under closely controlled conditions and some minor
differences in performance can be expected if these
conditions are changed.
Models:
Specifications for each model are listed separately.
C7046 Discharge Air Sensors
Intended for use as a discharge sensor in rooftop
applications.
Sensing Element:
Carbon type, thermistor-resistor element.
Performance Characteristics:
Reaction Time Constant with Air Approach Velocity of
8.33 ft/sec (2.54 m/sec): 60 seconds.
Resistance/Temperature (NTC):
Nominal Resistance: 3000 ohms at 77°F (24°C).
Nominal Sensitivity: 70 ohms per degree F (124 ohms per
degree C) at midrange.
Mounting Arrangement:
Integral mounting flange that requires two no. 8 screws
(not provided).
Maximum Ambient Temperature:
250°F (121°C).
Operating Temperature Range:
40°F to 150°F (4°C to 66°C).
Wiring Connections:
6 in. (152 mm) leadwires.
Dimensions:
See Fig. 1.
C7150B Mixed/Discharge Air Sensor
Used to sense mixed or discharged air in rooftop packaged
air conditioning equipment.
Resistance/Temperature (NTC):
Nominal Resistance: 3000 ohms at 77°F (24°C).
Nominal Sensitivity: 70 ohms per degree F (124 ohms per
degree C) at midrange.
Maximum Ambient Temperature:
250°F (121°C).
Operating Temperature Range:
-40°F to +110°F (-40°C to +44°C).
Dimensions:
See Fig. 2.
C7400A Solid State Enthalpy Sensor/C7650A Solid
State Temperature Sensor
Permits use of outdoor air as the first stage of cooling in
HVAC systems.
Temperature Sensing Element:
Thermistor.
Output Signal:
4 to 20 mA current signal; increases from 4 mA to 20 mA as
enthalpy decreases.
Ambient Operating Temperature Range:
-40°F to +125°F (-40°C to +52°C).
9/16
(14)
7/8
(22)
3/4 (19)
1-1/2 (38)
1/2 (13)
DIAMETER
1/4 (6)
DIAMETER
(2)
3/8 (10)
DIAMETER
IMMERSION LENGTH: 8 (203)
M9087

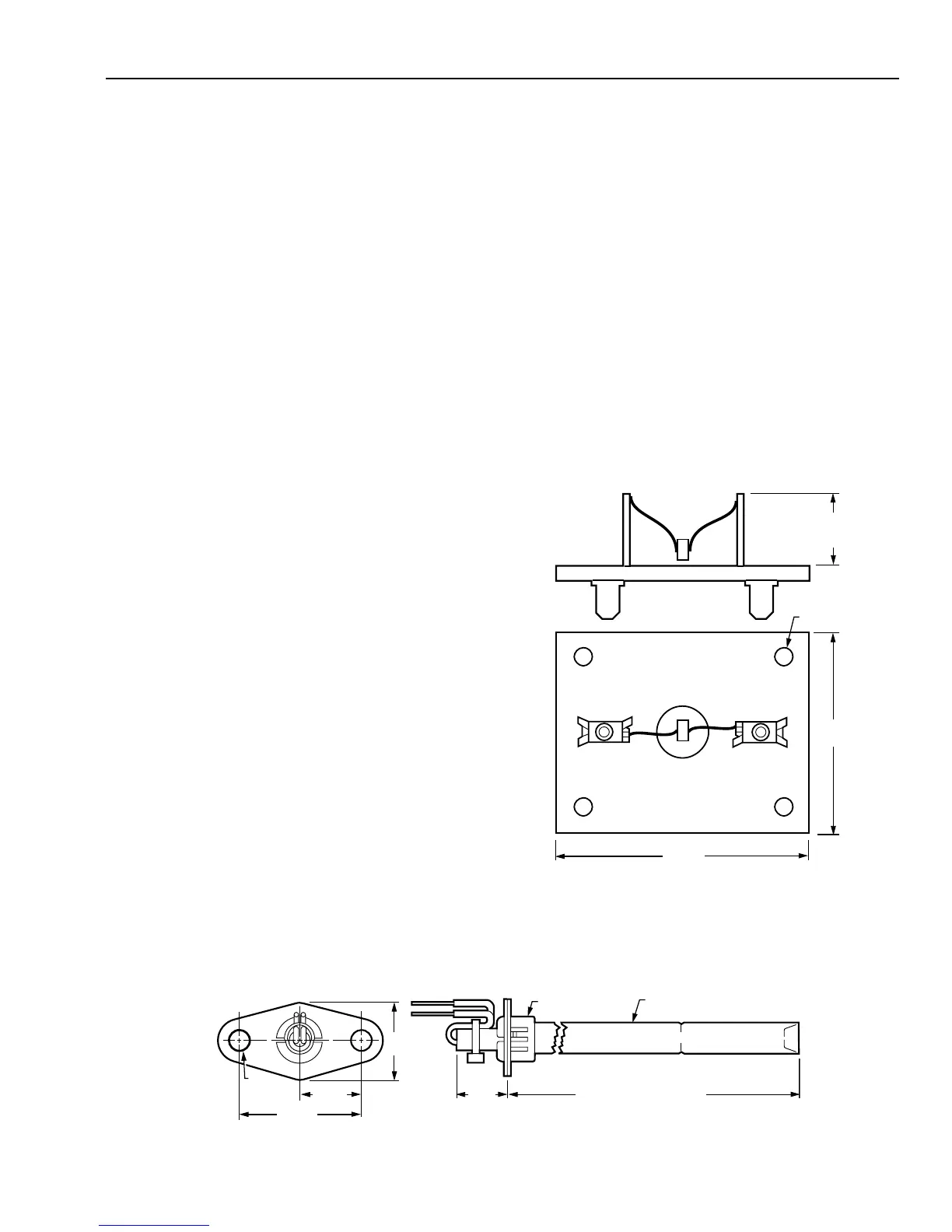

Fig. 1. Approximate dimensions of C7046C Air Temperature Sensor in in. (mm).
3/16 (5) DIAMETER
2-1/2 (64)
2
(51)
3/4
(19)
M9084
Fig. 2. Approximate dimensions of C7150B Mixed/
Discharge Air Sensor in in. (mm).
