EXCEL 100C INSTALLATION INSTRUCTIONS
EN1R-0144GE51 R1007 20

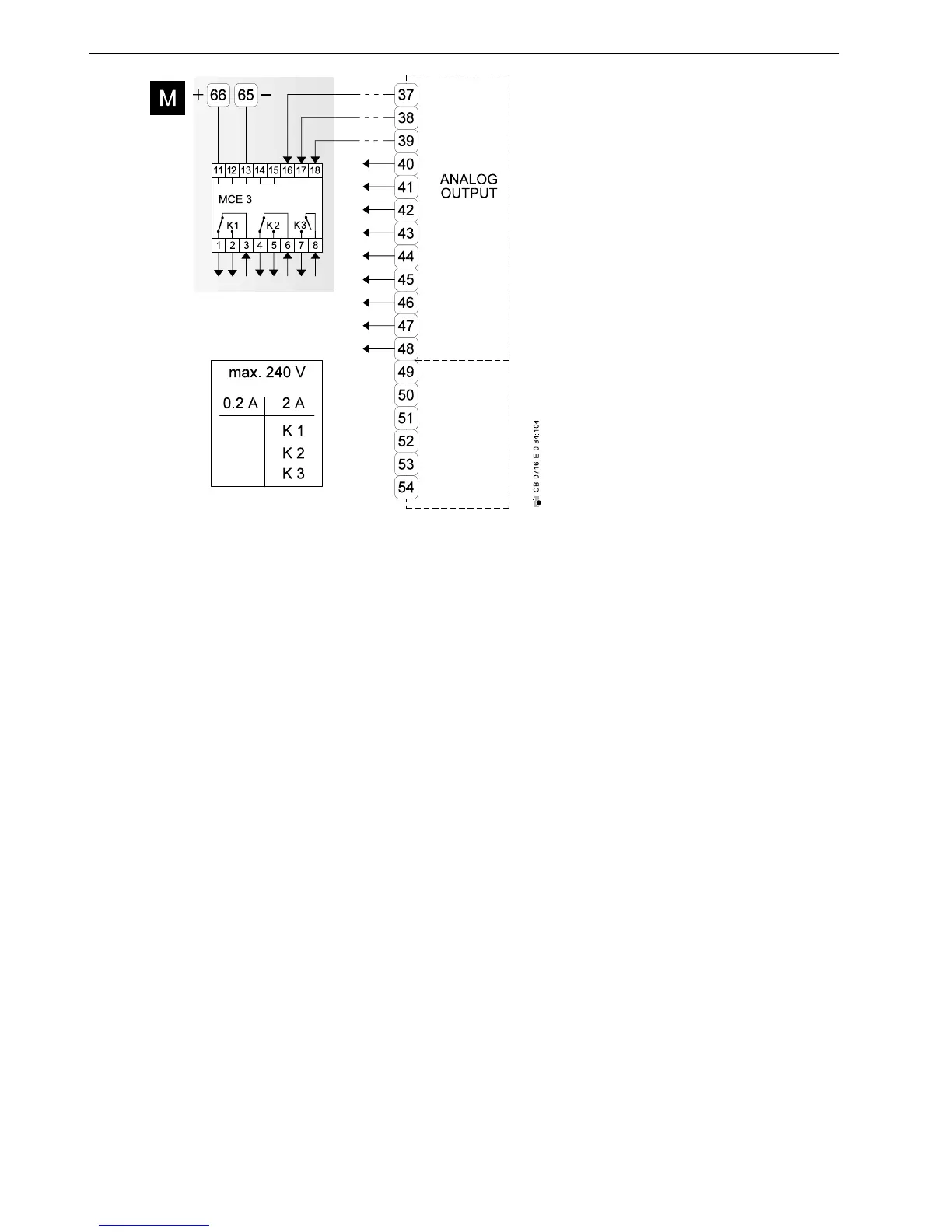

MCE 3:
M (Fig. left)
Terminal 16 controls the ON contact K3.
Terminal 17 controls the changeover con-
tact K2. Terminal 18 controls the change-
over contact K1.
IMPORTANT
It is not allowed to draw more
than 300 mA out of terminal
65/66.
The number of MCE and MCD modules
that can be used depends only on the
available AOs.
This means:
5 MCE
15 relays incl. watchdog alarm
terminal 69
or
6 MCD 12 relays
