Honeywell HZ322 True ZONE User Manual

Installation Guide
69-2199—01 2
M28029

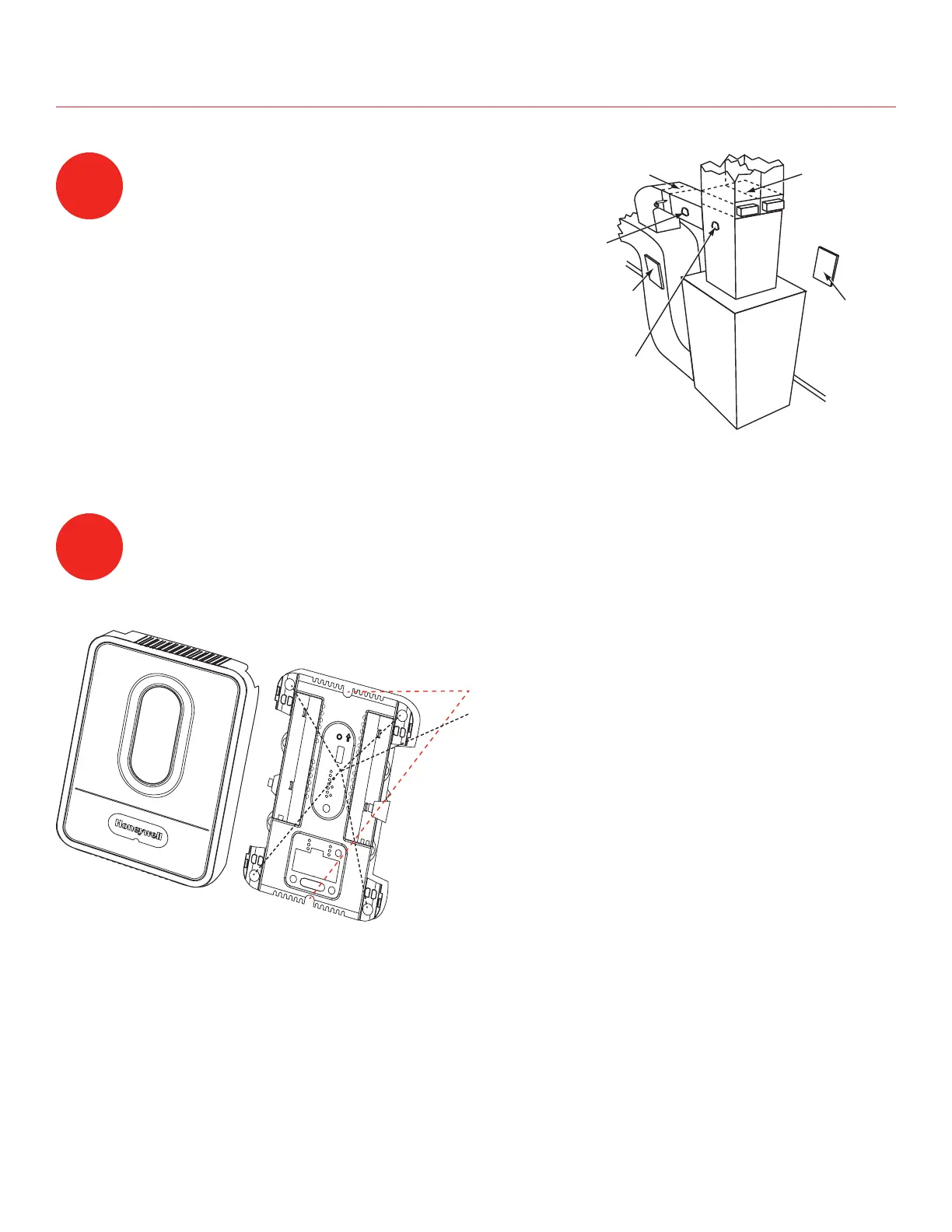

MOUNTING
Mount the HZ322 TrueZONE panel near the HVAC
equipment; locate it on a wall, stud, roof truss, or cold-
air return.
NOTE: The HZ322 TrueZONE panel can be mounted in
any orientation; level it for appearance only.
Please refer to TrueZONE Panel Frequently Asked
Questions form 50-9694 for operating details.
1
2
Separate the zone panel cover from the base, and use the base as a template to drill mounting holes.
Attach the base to the wall, stud, roof truss, or duct with appropriate screws (not included).
Use two screws for attaching to a stud or roof truss, or
four screws for duct or drywall/plaster installations.
Fig. 2
Fig. 3
SUPPLY
DUCT
DATS
(AT LEAST 3 FT
FROM PLENUM)
DATS
(ALTERNATE
LOCATION)
TrueZONE PANEL
MOUNTED ON
RETURN DUCT
TrueZONE PANEL
MOUNTED ON WALL
ZD SERIES
ZONE DAMPERS
SPRD BYPASS
DAMPER
FURNACE OR
AIR CONDITIONER
M24738

Honeywell HZ322 True ZONE Specifications

General

Brand	Honeywell
Model	HZ322 True ZONE
Category	Thermostat
Language	English
