HZ322 TrueZONE
7 69-2199—01
CONFIGURATION

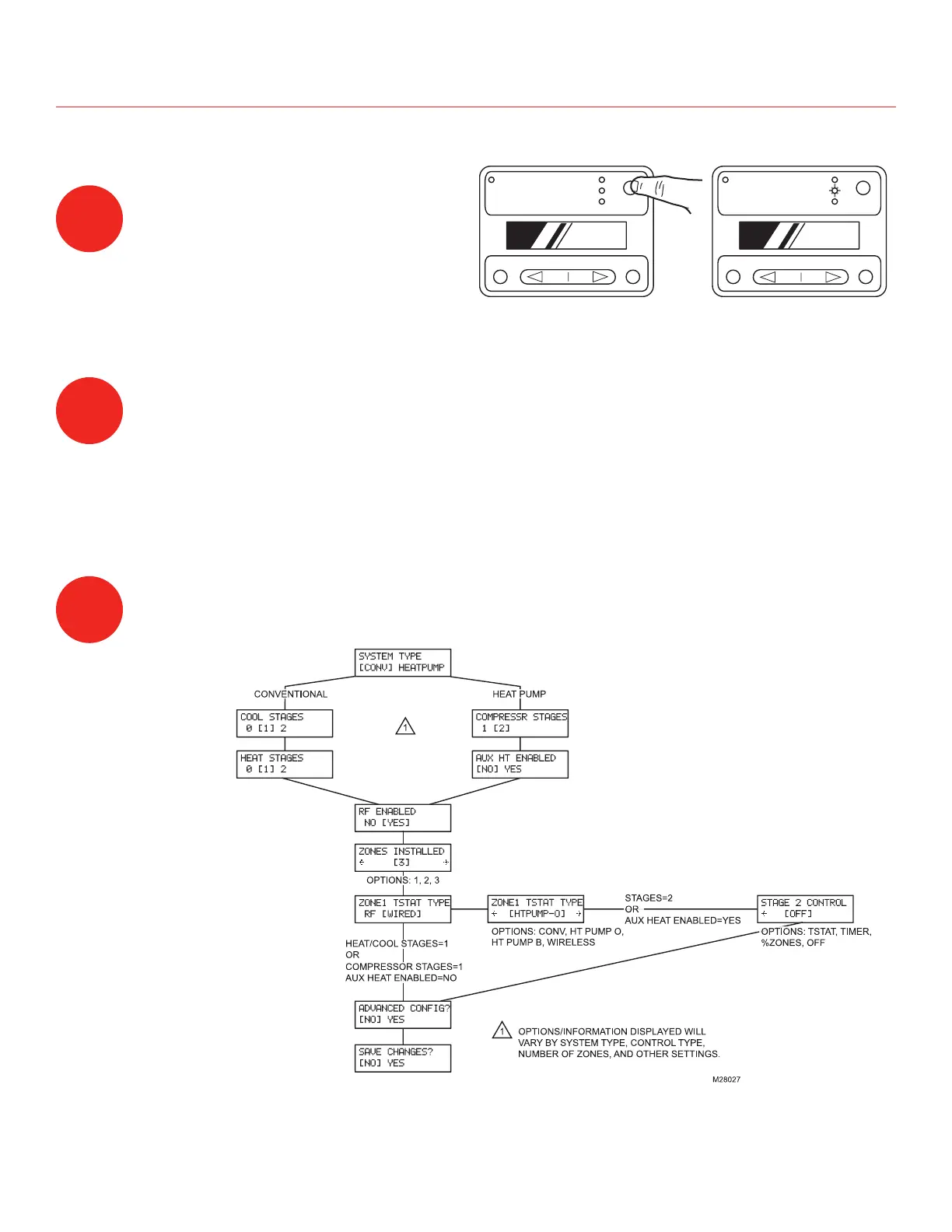

To enter Configuration:
HOMEWIRELESS
MODE
BACK NEXT
CONFIG
CHECK OUT
ADJUST SETTING
M24799
1
Press the Mode button (the Config LED will
light up).
HOME
MODE
BACK NEXT
CONFIG
CHECK OUT
ADJUST SETTING
M24810
WIRELESS
2
Use the Back and Next buttons to navigate through the configuration
menus. Pressing Next enters the selected option for that menu item and
advances to the next menu. Adjust settings up or down by pressing the
Adjust Setting button.
The flow chart below illustrates basic zone panel configuration. For additional configuration, see
Advanced Configuration on page 8. The label on the inside cover of the HZ322 Zone Panel also con-
tains configuration information.
3
Fig. 13
Fig. 14
