Installation Guide
69-2198—01 2
MOUNTING

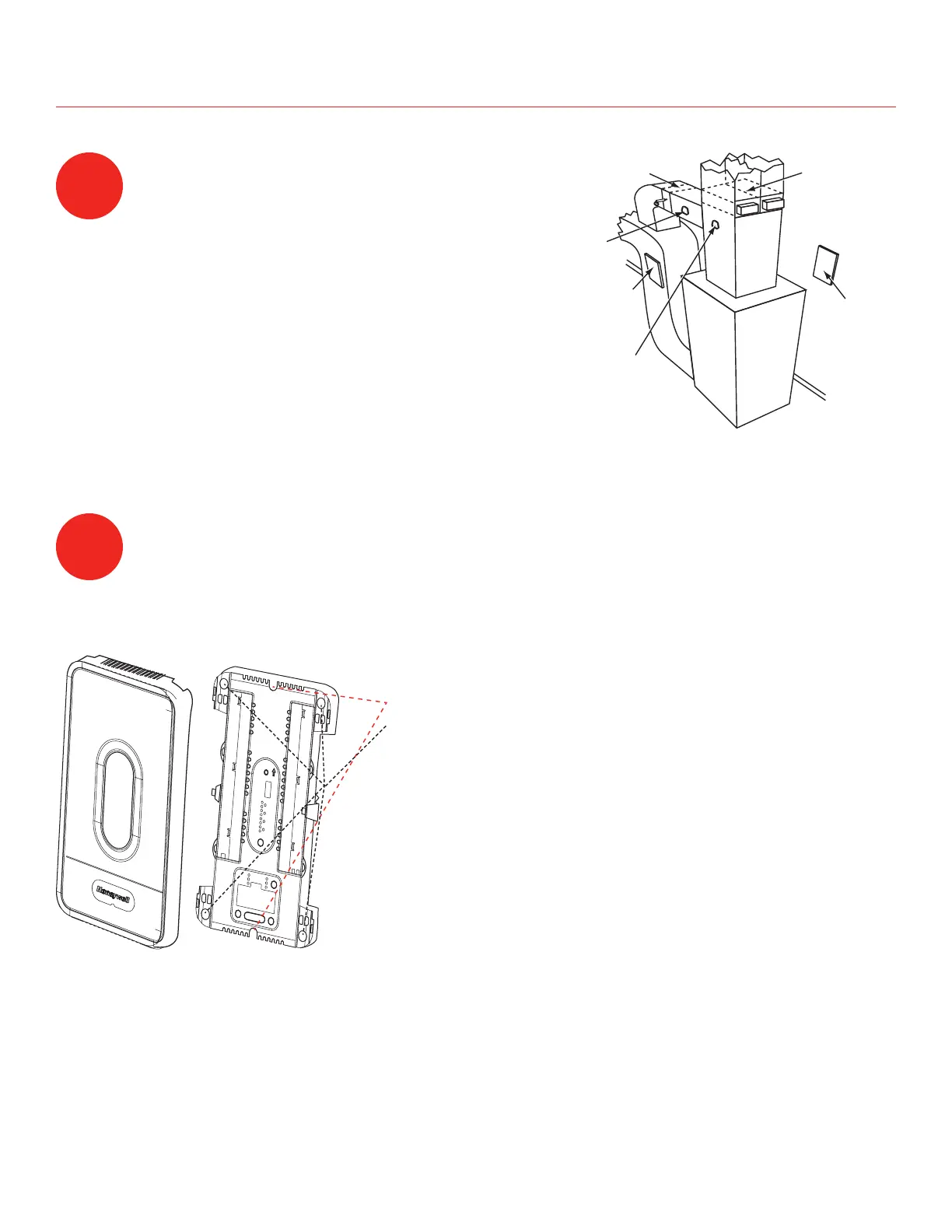

Mount the HZ432 TrueZONE panel near the HVAC
equipment; locate it on a wall, stud, roof truss, or cold-
air return.
NOTE: The HZ432 TrueZONE panel can be mounted in
any orientation; level it for appearance only.
Please refer to TrueZONE Panel Frequently Asked
Questions form 50-9694 for operating details.
1
2
Separate the zone panel cover from the base, and use the base as a template to drill mounting holes.
Attach the base to the wall, stud, roof truss, or duct with appropriate screws (not included).
Use two screws for attaching to a stud or roof truss, or
four screws for duct or drywall/plaster installations.
Fig. 2
Fig. 3
SUPPLY
DUCT
DATS
(AT LEAST 3 FT
FROM PLENUM)
DATS
(ALTERNATE
LOCATION)
TrueZONE PANEL
MOUNTED ON
RETURN DUCT
TrueZONE PANEL
MOUNTED ON WALL
ZD SERIES
ZONE DAMPERS
SPRD BYPASS
DAMPER
FURNACE OR
AIR CONDITIONER
M24738
