IntuVueRDR-7000 Weather Radar Pilot's Guide
D201911000094 Equipment Description
Rev 0, Feb 2020 33
SECTION 4: EQUIPMENT DESCRIPTION
UNIT DESCRIPTIONS

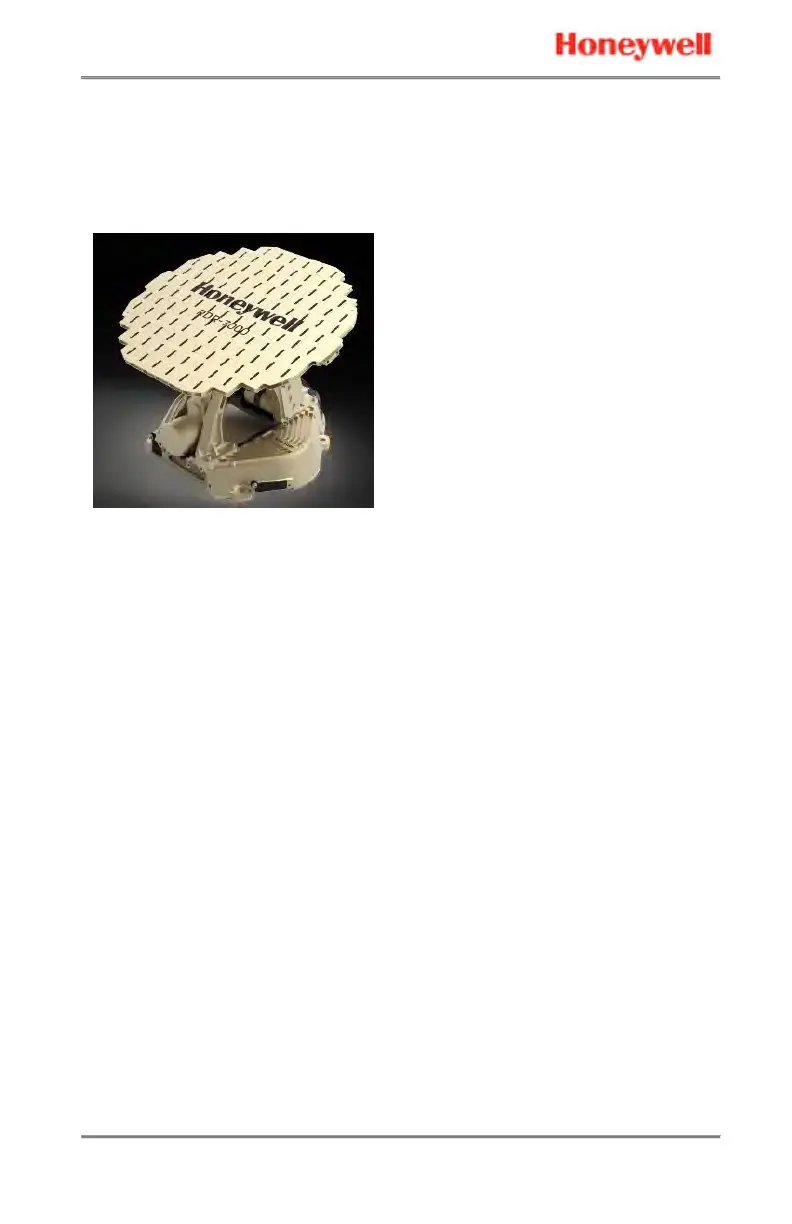

ART-7000ANTENNA RECEIVER TRANSMITTER WITH FLAT PLATE
ANTENNA
The Antenna Receiver Transmitter
(ART)is the main unit. It contains
the electronics thattransmit,
receive, and process the radar
pulses used to detect turbulence,
windshear, weather, and terrain
targets. It also contains system
integrity monitoring and self-test
electronics.It controls the modes
of the radar, and formats the
radar data for display. The ART-
7000 is located within the
radome. The integrated antenna
drive scans a 120-degree sector
in azimuth and ±15 degrees in
elevation (tilt).
