5
2. Mounting Details
(cont’d)
The following steps and diagrams show how to separate the mounting bracket
assembly from the main chassis and mount it on a vertical flat surface.
Unscrew the thumbscrew located on the front panel.
Remove the cover by pulling it forwards off the main chassis. On new Midas
®
units, be sure to remove the internal packing card securing the pump. Failure
to remove this packing will result in damage to the Midas
®
unit. (See diagram
below)
Unscrew the two retaining screws located at the bottom front of the chassis.
Holding the mounting bracket assembly with one hand use the other to
carefully pull the main chassis forward to disconnect it from the mounting
bracket assembly.
Using the drill template provided drill two holes 2.3 in (58.50mm) vertically apart
for 2 x round head M4 screws.
Partially screw the fixings into the mounting surface.
Place the mounting bracket assembly over the screws so they pass through the
mounting holes and then slide down to locate in the slots.
Tighten the screws to secure the mounting bracket assembly.

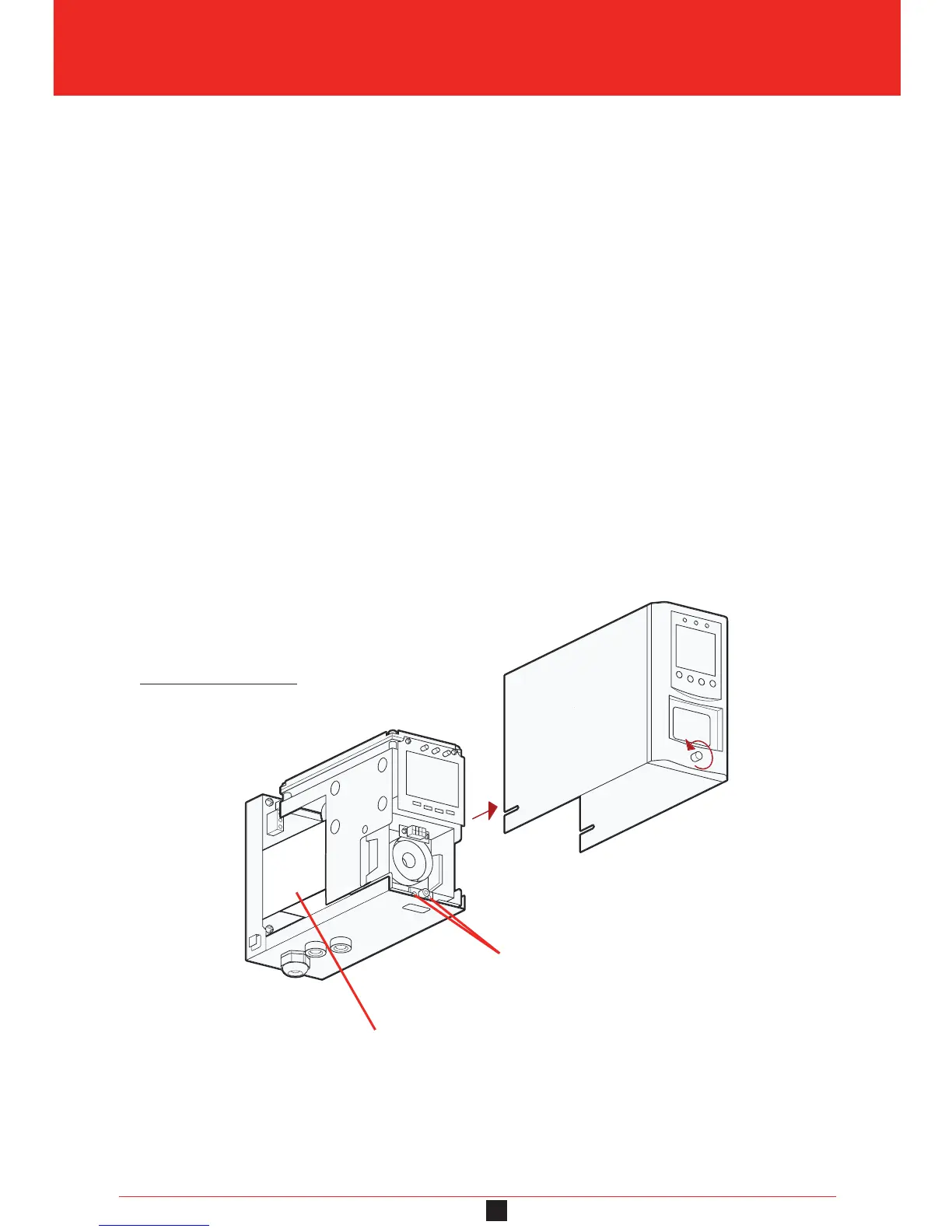

Diagram 3. Mechanical installation
