FIRE OR EXPLOSION HAZARD. CAN CAUSE PROPERTY DAMAGE, SEVERE INJURY, OR DEATH.
Improper location of the 120 Vac hot surface igniter or
any flame sensing rod can result in appliance
malfunction.
1. Never attempt to relocate the 120 Vac hot surface igniter or the flame sensing rod from the original position
established by the appliance manufacturer.
2. Never attempt to change the appliance flame sensing (single rod or dual rod) from the type originally
established by the appliance manufacturer.
3. Be sure the 120 Vac hot surface igniter or the flame sensing rod is replaced in exactly the original position after
removal for inspection, service or replacement.

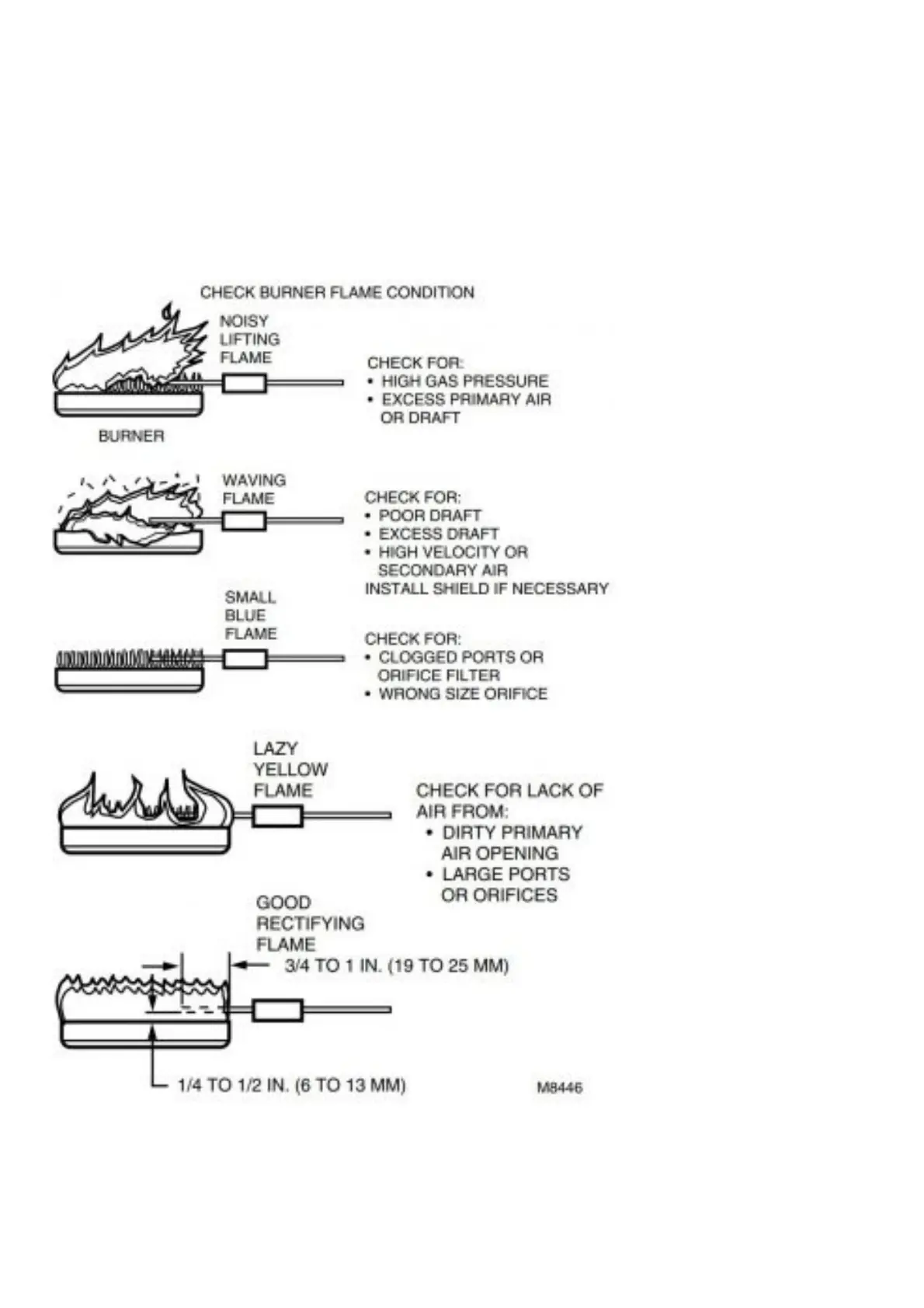

Fig. 7. Check burner flame condition.
MAINTENANCE
