Connect remaining wires from Step 8
Push down on the tabs to put the
wires into the inner holes of their
corresponding terminals on the wall plate
(one wire per terminal) until it is firmly in
place.
Gently tug on the wires to verify they are
secure.
Tip: If you need to release the wires again,
push down the terminal tabs on the sides
of the wall plate.
1. Ensure the
right R-switch
is in the up
position.
1. Set right
R-switch to the
down position.
20

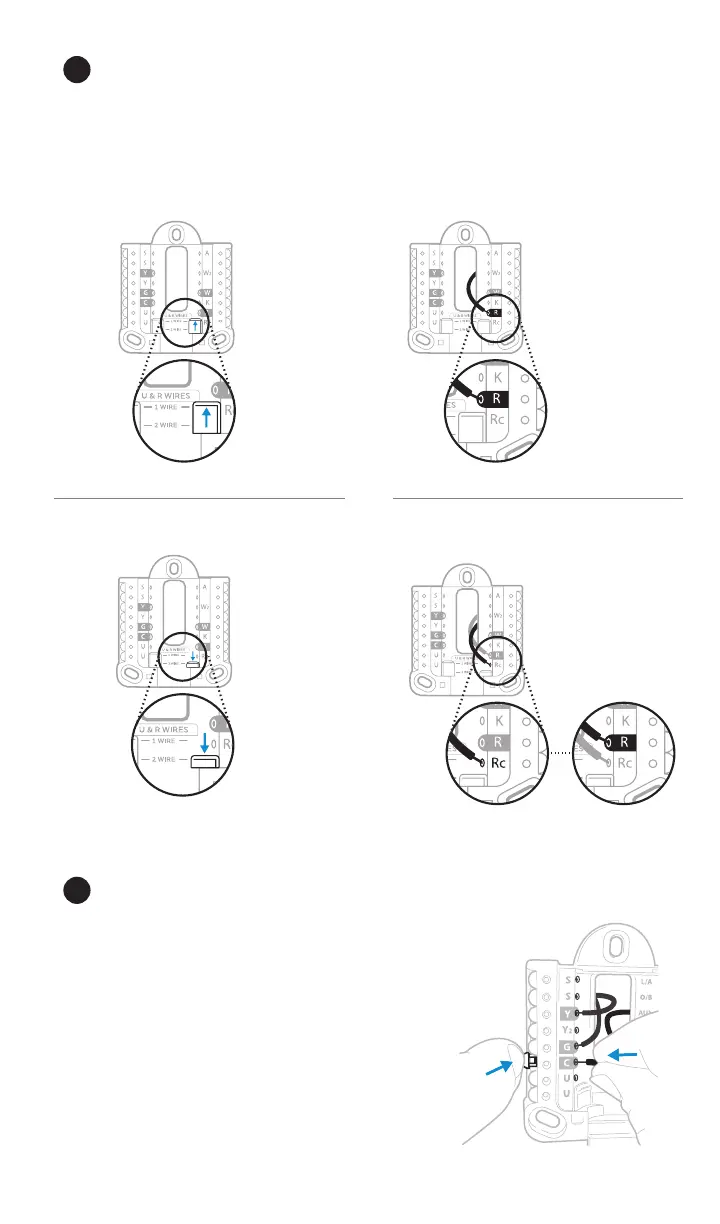

Determine Correct RSwitch Position and Insert R-wire or wires
Set the R-switch up or down based on your wiring notes in Step 8. Insert wires
into the inner holes of the terminals on the wall plate. The tabs will stay down
once the wire is inserted.
If you have 1 RWire (R, RC, RH):
If you have 2 RWires (R, RC, RH):
2. Insert your
R-wire (R, Rh
or Rc) into
R-terminal.
2. Insert your Rc
wire into Rc-
terminal.
3. Insert your R
or Rh wire into
R-terminal.
OR
This wiring is just an example,
actual wiring may vary.
