Honeywell VQ400M Series User Manual

EN2R--9018 9704R1--NE
9

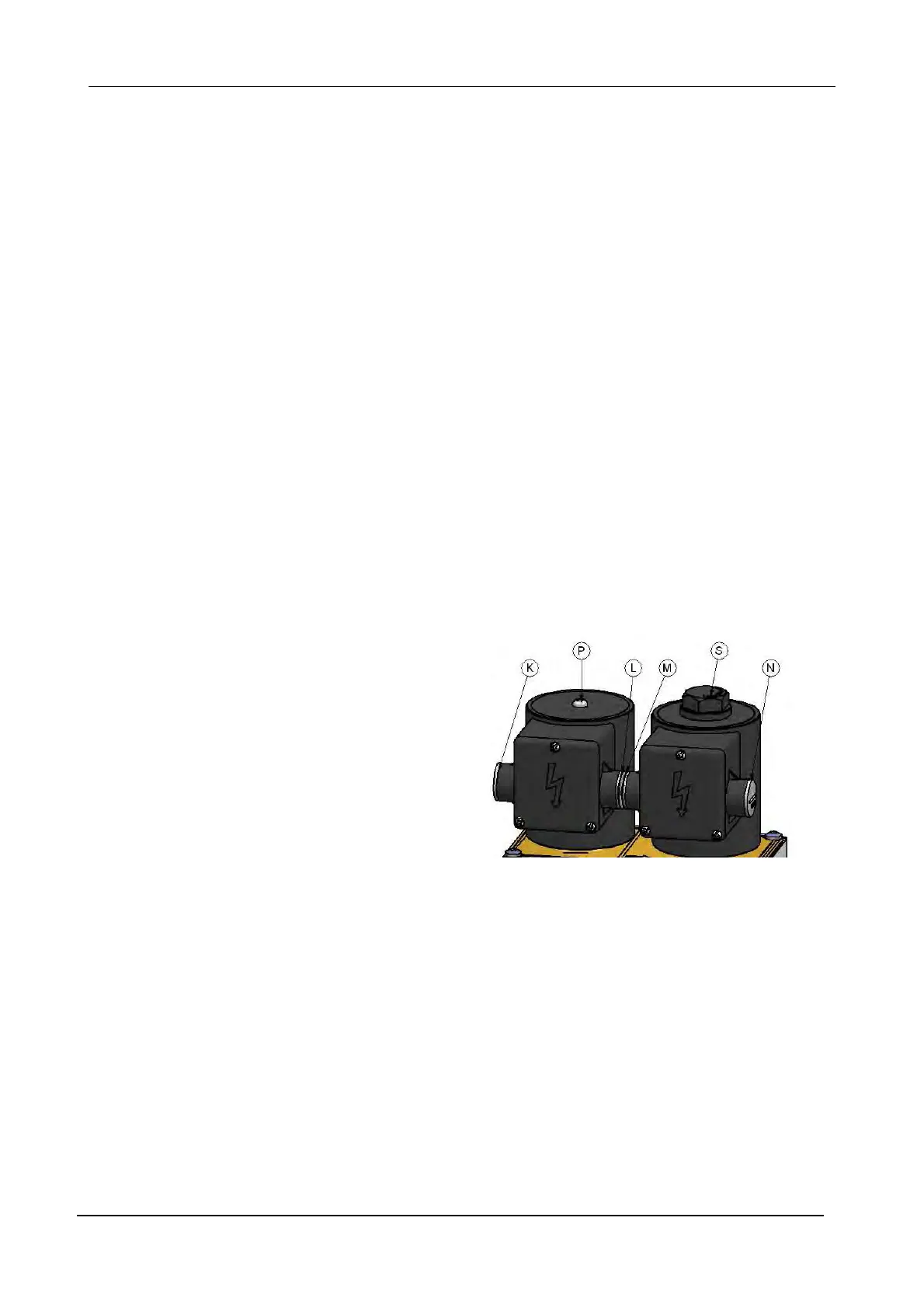

Table 2. Dimensions VQ400 Series (see also installation drawing).
Model Connect.
(
i
h
)
Overall Dimensions (mm)
Weight (kg)
(inch)
A B
C
D E
g
(
g
)
2
nd
main valve
fast slow
VQ420Ax 3/4 204 42.5 111.5 157.5 60 108 3.5
VQ420Bx--Cx--Ex 3/4 204 42.5 112 157 60 177 4.8
VQ420Dx--Fx 3/4 204 42.5 112 157 60 247 6.1
VQ425Ax 1 204 42.5 135.5 181.5 64.5 108 5.0
VQ425Bx--Cx--Ex 1 204 42.5 136 181 64.5 177 6.3
VQ425Dx--Fx 1 204 42.5 136 181 64.5 247 7.6
VQ440Ax 11/2 297 62 174 228 63.5 119 10.7
VQ440Bx--Cx--Ex 11/2 297 62 174 228 63.5 209 11.9
VQ440Dx--Fx 11/2 297 62 174 174 63.5 300 13.5
VQ450Ax 2 297 62 174 (184) 228 (238) 63.5 119 12.1
VQ450Bx--Cx--Ex 2 297 62 174 (184) 228 (238) 63.5 209 14.1
VQ450Dx--Fx 2 297 62 174 (184) 228 (238) 63.5 300 16.4
(..) 360 mbar versions
