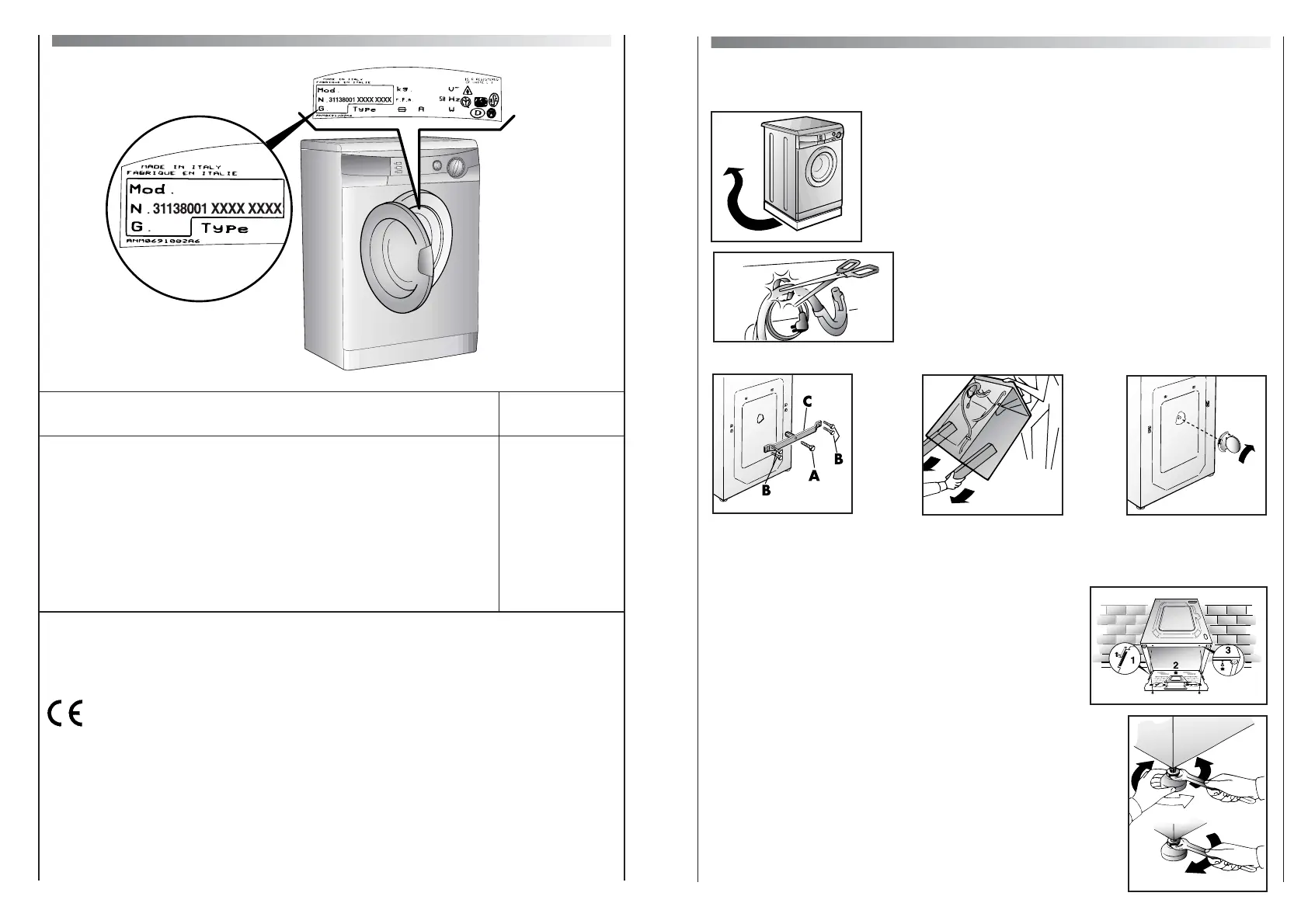

SETTING UP + INSTALLATION
Remove the polystyrene base and place the machine near
its permanent position (diagram 1).
Carefully cut through the hose retaining clip at the rear of
the appliance (diagram 2).
Unscrew the central bolt (A); unscrew the 4 lateral screws
(B) and remove the cross piece (C) (diagram 3).
Lean the machine forward and remove the plastic bags
containing the two polystyrene blocks at the sides, pulling
downwards (diagram 4).
Press the plug (to be found in the envelope with the
instructions) into the hole and rotate to lock into position
(diagram 5).
WARNING:
DO NOT LEAVE THE PACKAGING WITHIN REACH OF CHILDREN AS IT IS A POTENTIAL
SOURCE OF DANGER.
Apply the insulation sheet of corrugated material to the base
as shown.
Level the machine by means of the front feet.
a) Turn the nut clockwise to release the screw adjuster on the foot.
b) Rotate the foot to raise or lower it until it stands firmly on the
ground.
c) Lock the foot in position by turning the nut
anti-clockwise until it comes up against the bottom of the machine.
1
2
3
4
5
EC Appliance complies with European Directive 89/336/EEC, 73/23/EEC and
subsequent amendments.
Technical data
■
Max. load of dry laundry
■
Water pressure
Measurements
■
Width
■
Depth
■
Height
NB: For specifications regarding electrical data, see the data panel on the front of the washing
machine (porthole area) - as shown in diagram above.
5 kg
0,05 ÷ 0,8 MPa
60 cm
52 cm
85 cm
