12
BELT
CAUTION
! !
To reduce the risk of injury from moving parts - Unplug
before servicing.
The belt is located under the bottom plate of the vacuum and
should be checked from time to time to be sure it is in good
condition.
When To Replace
Replace belt if it is damaged, cut or broken. Refer to direc-
tions below.

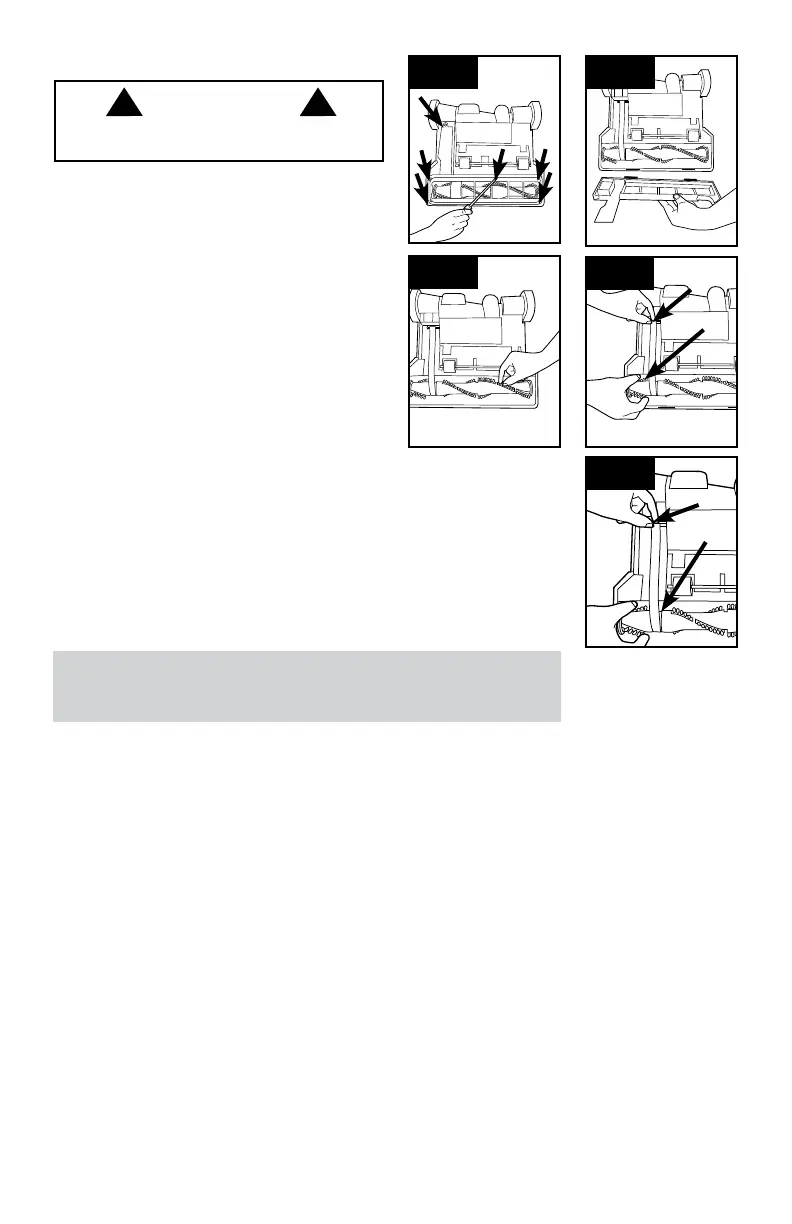

How To Replace - Bottom plate with screws
Place handle in the low position and turn the cleaner over so
the bottom side is up.
4.20 Remove the 6 screws as shown with a Phillips screw-
driver.
4.21 Lift off bottom plate (A).
4.22 Remove used belt from brushroll (C) then from motor
shaft (metal rod) (D) and discard.
What to Buy: Belt
If desired, additional belts can be purchased at Hoover.com or 1-800-944-9200. When
purchasing a new belt for models ask for Belt - HOOVER
®
part No. 562289001.
4.23 With lettering on outside of belt, slide new belt over motor shaft (metal rod) (E).
Then slip around area of brushroll without bristles (G).
4.24 With belt in place, pull and slide brushroll into nozzle making sure that the brushroll end
caps are in the correct orientation.
Place the bottom plate aligning the screw holes and re-install the 6 screws.
C
D
4.23
G
D
4.24
4.20
4.22
4.21
Actual model may vary from images shown.
562289001
