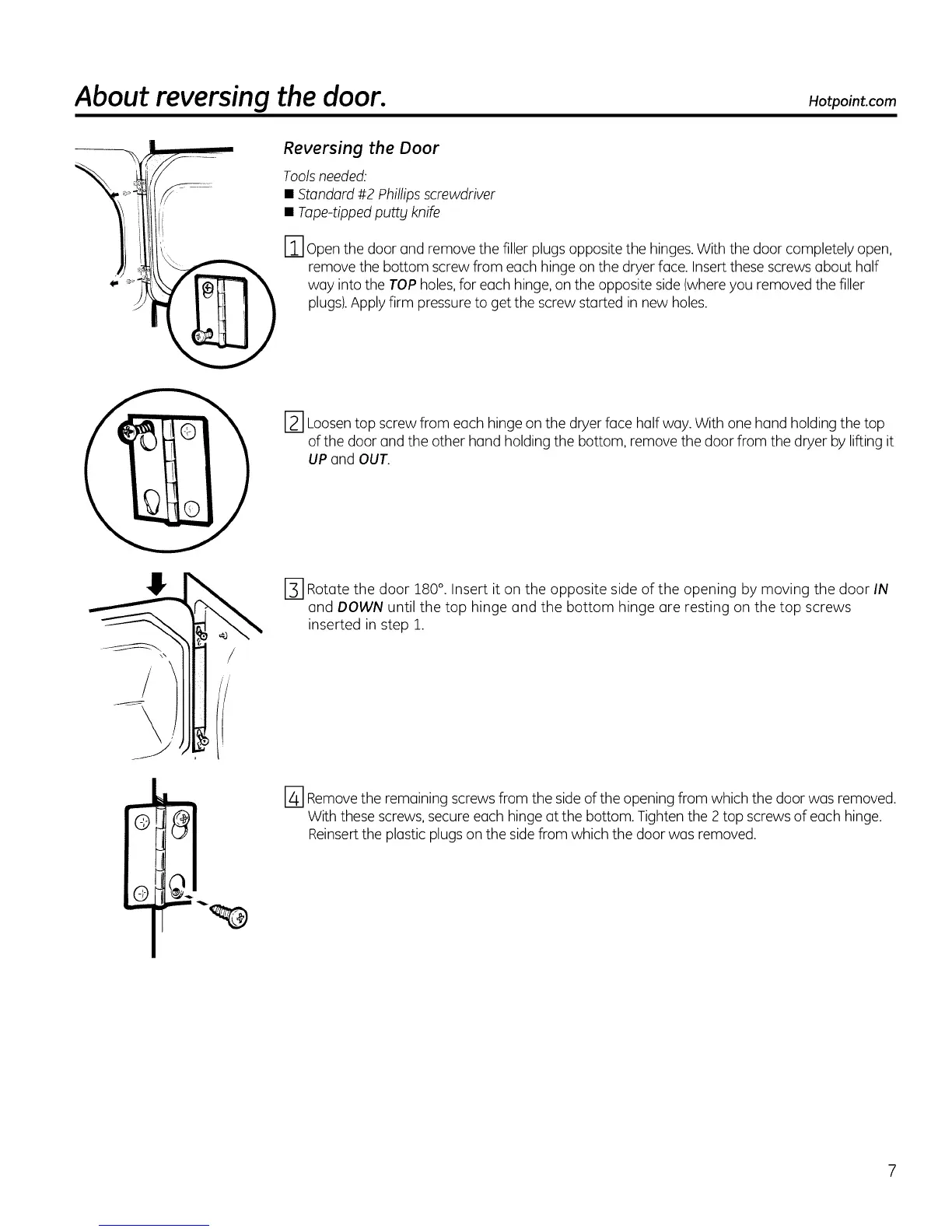

About reversing the door. Hotpoint.com
)
Reversing the Door
Toolsneeded:
• Standard#2 Phillipsscrewdriver
• Tape-tippedputtg knife
F1-]Openthe door and remove the filler plugsopposite the hinges.With the door completely open,
remove the bottom screw from each hinge on the dryerface. Insertthese screws about half
way into the TOP holes,for each hinge, on the opposite side (where you removed the filler
plugs).Applyfirm pressure to get the screw started in new holes.
[] Loosen top screw from each hinge on the dryer face half way. With one hand holding the top
of the door and the other hand holding the bottom, remove the door from the dryer by lifting it
UPand OUT.
/
r_ Rotate the door 180°. Insert it on the opposite side of the opening by moving the door IN
and DOWN until the top hinge and the bottom hinge are resting on the top screws
inserted in step 1.
[] Removethe remaining screws from the sideof the opening from which the door was removed.
With these screws, secure each hinge at the bottom. Tighten the 2 top screws of each hinge.
Reinsertthe plastic plugson the side from which the door was removed.
