Hotsy Gas Be
lt Drive Series Operator’s Manual 8.931-236.0 - BD

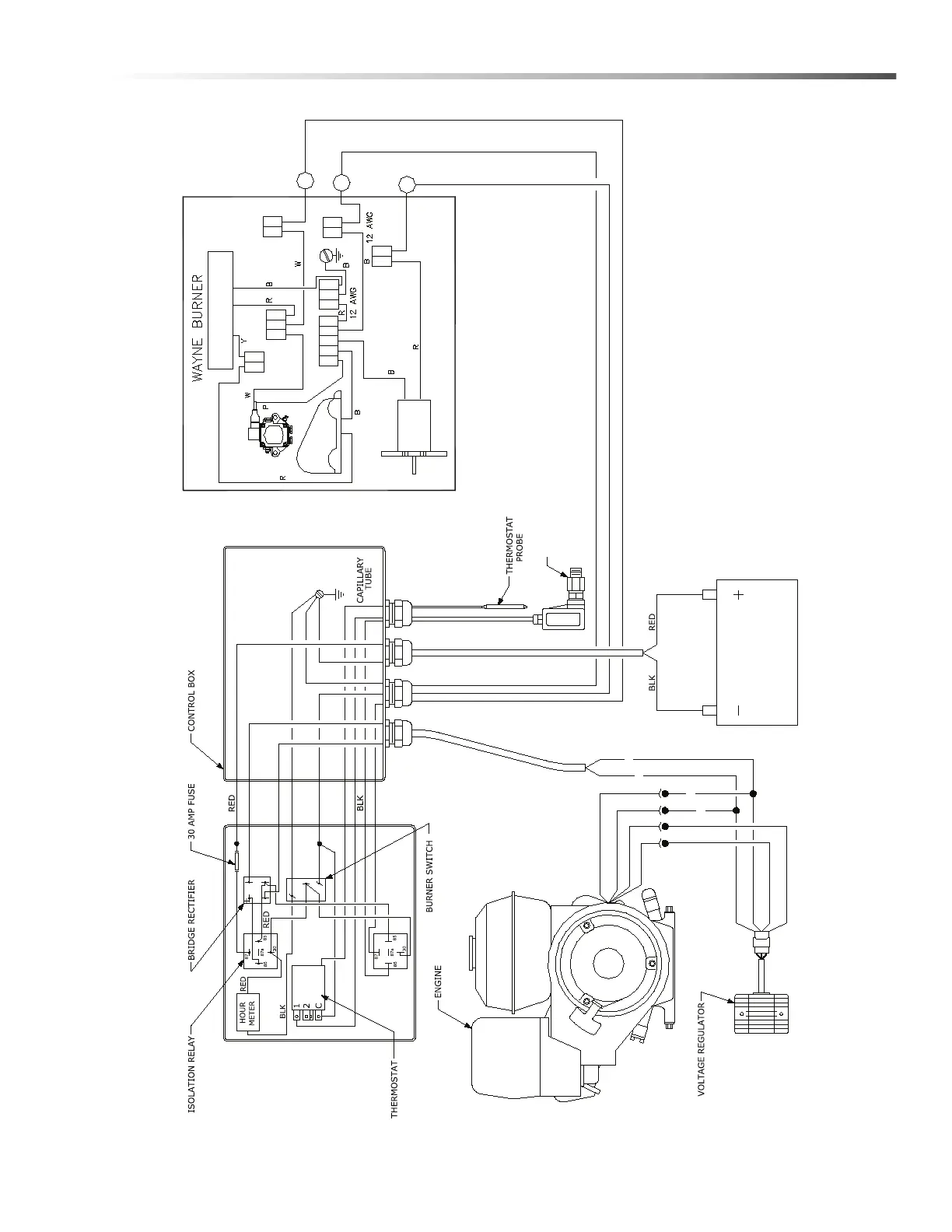

Wiring Diagram -1075BE
GRAY
BLK
WHT
GRAY
GRAY
GRAY
GRAY
GRAY
YEL
YEL
12V BATTERY
NEG
POS
BLU
BRN
RED
BLK
BLK 12GA
WHT
BRN
BLK
GREEN 12 GA
YEL
BLK
YEL
PRESSURE
SWITCH
WHITE 12GA
GREEN 12GA
BLK
WHT
12GA
A
B
C
BLACK 12 GA
MOTOR
12VDC
IGNITOR
12VDC
FUEL
SOLENOID
12/24V
12V
DROPOUT TIMER
RED 12GA
BLK
21
23
Table of Contents
Machine Data Label
2
Table of Contents
3
How to Use this Manual
4
Safety
5
Introduction & Safety Information
5
Important Safety Information
6
Operations
7
Technical Specifications
8
Component Identification
10
Assembly Instructions
11
Installation
11
Getting Started
11
Venting
11
Battery
12
Oil Fired Burner
12
Gasoline Engine
13
Water Supply
13
Operation Instructions
14
Detergents & General Washing Techniques
15
Thermal Pump Protection
15
Cleaning Tips
15
Rinsing
16
Shutdown Instructions & Storage
16
Storage
16
Maintenance
17
Pump
17
Burner Fuel Filter
17
Heating Coil
17
Engine
17
Oil Burner Blower Motor
17
Battery
17
Troubleshooting
18
Wiring Diagram - 965B All Models
21
Wiring Diagram -1075SSBE
22
Wiring Diagram - 1080SSBE
23
Wiring Diagram -1075BE CAL
24
