Table 5-6 USB board description and part number
Description Spare part number
USB board M16335-001
USB board cable M08870-001
Before removing the USB board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the bottom cover (Bottom cover on page 27).
3. Remove the battery (see Battery on page 29).
Remove the USB board:

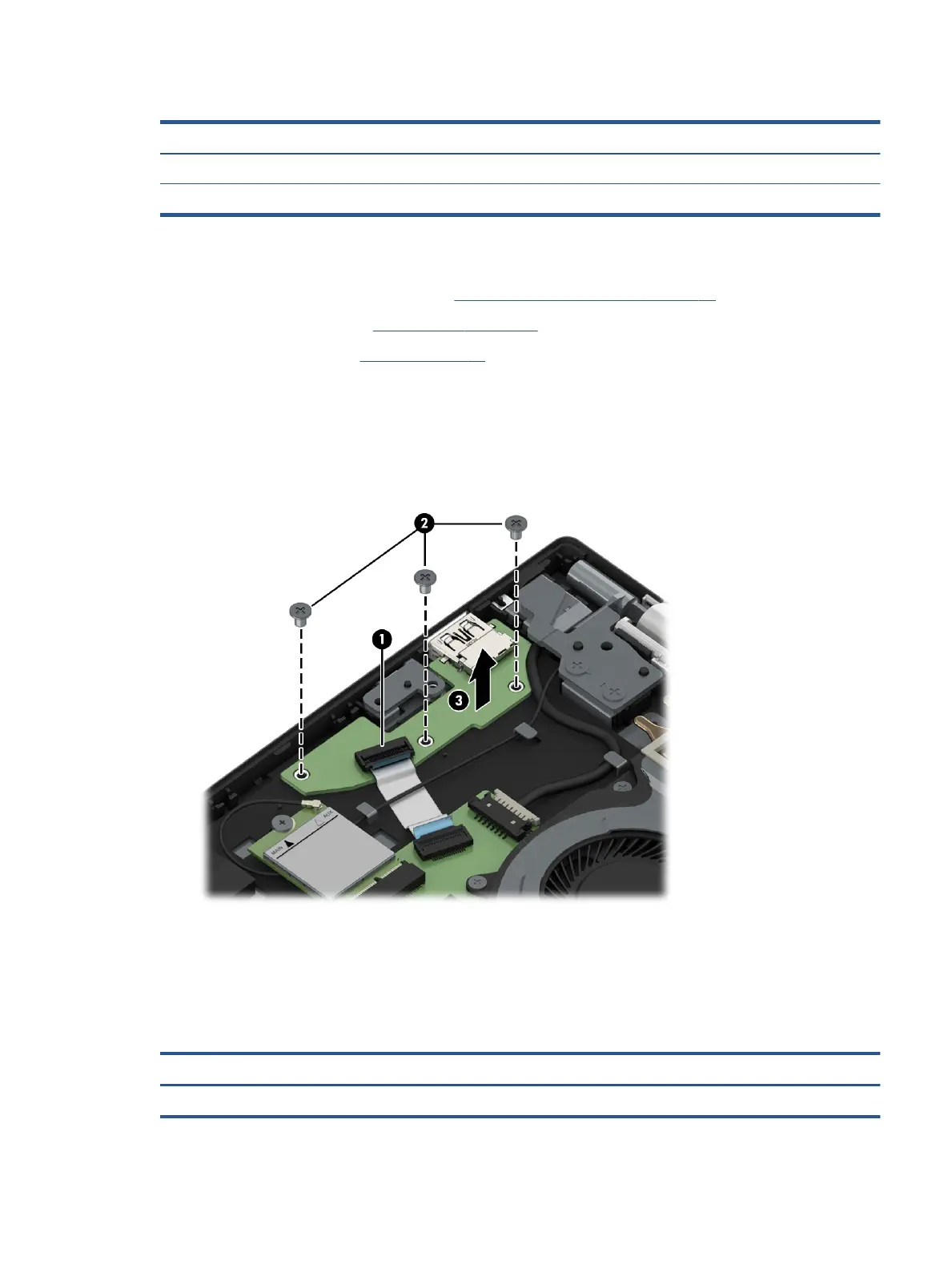

1. Disconnect the cable from the ZIF connector on the USB board (1).
2. Remove the three Phillips M2.0 × 2.0 screws (2) that secure the board to the computer.
3. Remove the board from the computer (3).
Reverse this procedure to install the USB board.
Speakers
To remove the speakers, use this procedure and illustration.
Table
5-7 Speaker description and part number
Description Spare part number
Speaker Kit M08943-001
Component replacement procedures 35
