Table 5-12 Touchpad description and part number
Description Spare part number
Touchpad, fog blue M08872-001
Touchpad, forest teal M08873-001
Touchpad, natural silver M08874-001
Touchpad, warm gold M08875-001
Touchpad cable M08876-001
Before removing the touchpad, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the bottom cover (Bottom cover on page 27).
3. Remove the battery (see Battery on page 29).
4. Remove the fan (see Fan on page 37).
5. Remove the system board (see System board on page 41).
Remove the touchpad:

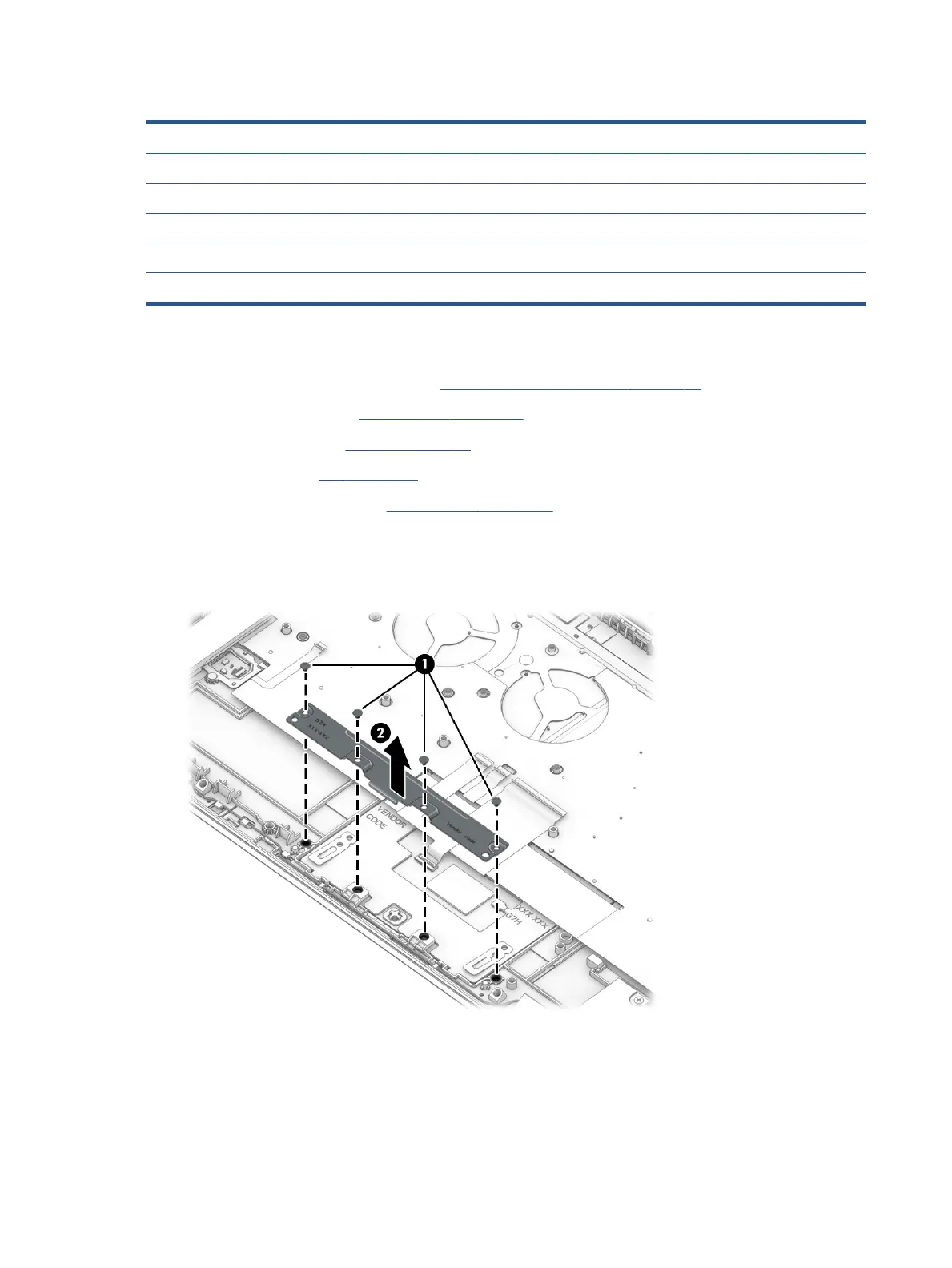

1. Remove the four Phillips M2.0 × 2.0 screws (1) from the touchpad bracket, and then remove the bracket
from the computer (2).
2. Remove the black protective tape from on top of the screws (1).
3. Hold the keyboard cable up to allow access to the screws (2).
4. Remove the three broad head Phillips M2.0 × 2.0 screws (3) from the touchpad.
44 Chapter 5 Removal and replacement procedures for authorized service provider parts
