Stand assembly
1. Prepare the computer for disassembly (see Preparation for disassembly on page 13).
2. Position the computer with the rear cover toward you.
CAUTION: Before positioning the computer with the display assembly facing down, make sure
the work surface is clear of tools, screws, and any other foreign objects. Failure to follow this caution
can result in damage to the display assembly.

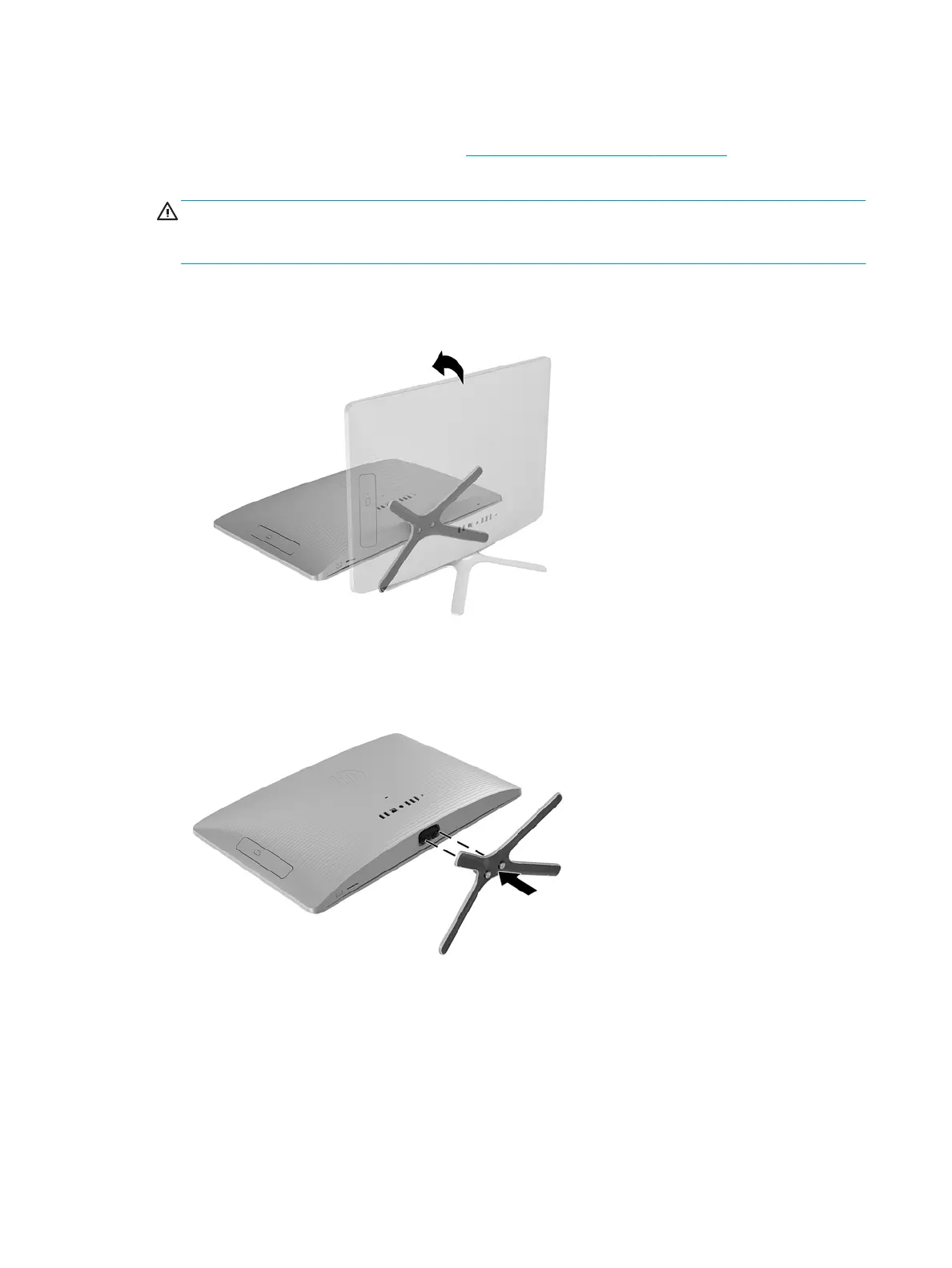

3. Rotate the top edge of the computer away from you until the display panel lies face down on
the work surface.
4. Loosen the two captive screws that secure the stand assembly to the computer, and then remove
the stand assembly.
Reverse this procedure to install the stand assembly.
14 Chapter 4 Removal and replacement procedures
